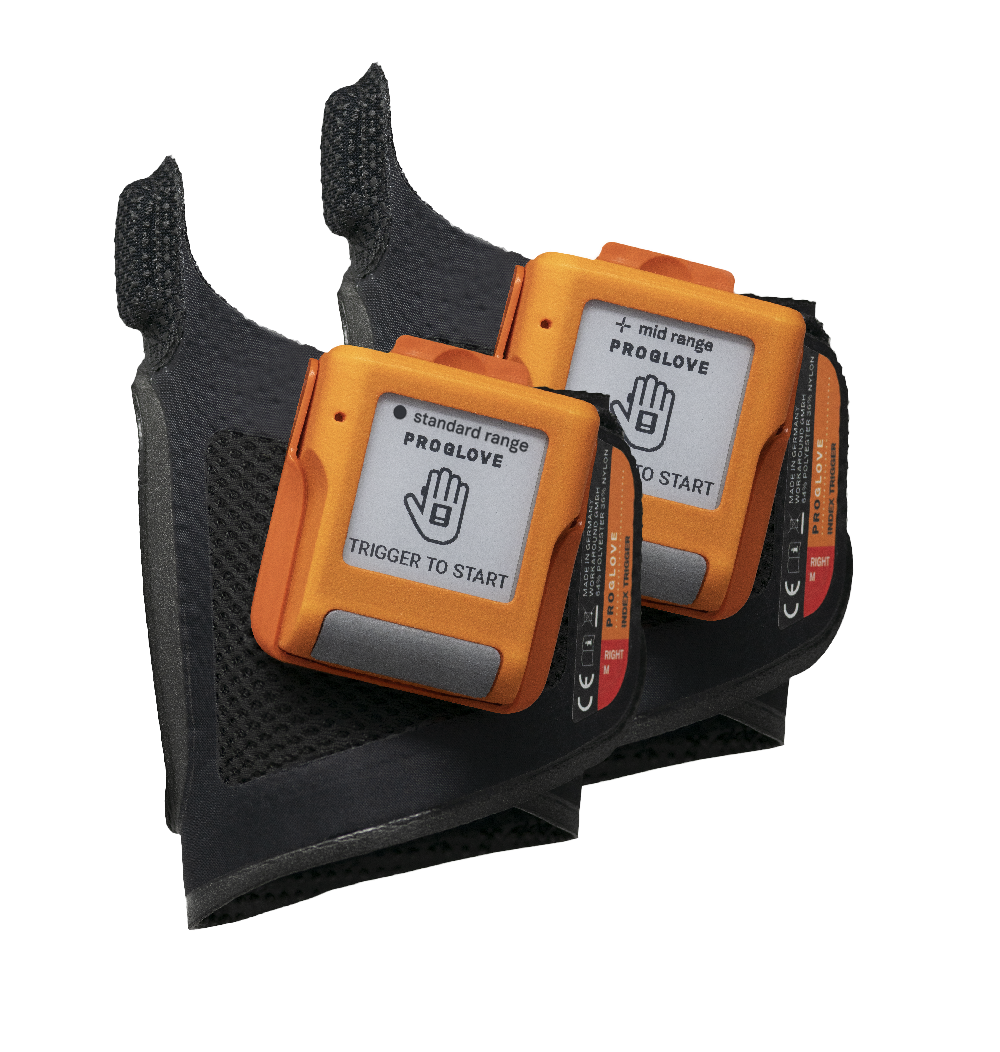

ProGlove Mark Display
from $2,446.74 (incl. GST)
POSMarket SKU: Z20022
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Mid range/ Standard Range; 1D and 2D barcode scanner with 1.54 display
Product Overview
he MARK Display adds intelligence to your shop floor by communicating only the essential data that workers need for efficiency and high performance.
The Standard range version guarantees the fastest performance for near-field scanning (10 – 80 cm / 6 in – 3 ft). With an optimal scan distance from 30 cm up to 150 cm / 1ft. to 5 ft. The Mid range version is ideal for applications with different scan distances.
Mark Display is the size of a matchbox and weighs only 48 g which makes it lighter that many smart watches on the market and eliminates the need to lift and carry traditional scanners that can weigh up to 10 times as much.
With the ROI calculator you can quickly estimate the value you will find in boosting efficiency and transforming your processes by switching from handheld barcode scanners to MARK wearables.
Features
The Standard range version guarantees the fastest performance for near-field scanning (10 – 80 cm / 6 in – 3 ft). With an optimal scan distance from 30 cm up to 150 cm / 1ft. to 5 ft. The Mid range version is ideal for applications with different scan distances.
Mark Display is the size of a matchbox and weighs only 48 g which makes it lighter that many smart watches on the market and eliminates the need to lift and carry traditional scanners that can weigh up to 10 times as much.
With the ROI calculator you can quickly estimate the value you will find in boosting efficiency and transforming your processes by switching from handheld barcode scanners to MARK wearables.
Features
- 1D and 2D barcode scanner (1ft - 5 ft)
- Transmission feedback (acoustic, optical, haptic)
- Wireless transmission (Bluetooth Low Energy)
- 1.54" e-link display (high contrast, non-reflective)
- Battery life for up to 6000 scans
- 1.5 oz
- Bidirectional communication
- Wireless Firmware Update
- 1 year warranty
Product Specifications
| Mark Display (mid range or standard range) | |
| Wireless Communication Bluetooth low energy | |
| Bluetooth radio | Supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0 |
| Frequency range   | Frequency band used BLE: 2400-2483.5 MHz |
| Max radio-frequency Power transmitted  | < 20dBm  |
| Transmission range | Free field: 40 m (131 ft )* Indoor: 10-20 m (33-66 ft)* *may decrease in industrial environments (e.g. due to walls, metal shelving, machines) |
| Barcode Decoding Capabilities | |
| 1D | Auto decodes all standard 1D codes including GS1 DataBar linear codes et al. |
| 2D | PDF417, MicroPDF417, Data matrix, QR Code, Micro QR Code, Aztec, MaxiCode, et al. |
| Postal | US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal (KIX) et al. |
| Display | |
| Display | E- Paper display |
| Size | 1.54 inch |
| Resolution | 200 x 200 pixel resolution, 188 Dpi |
| Electrical Properties | |
| Battery | 670 mAh, Lithium polymer (rechargeable) |
| Charging time | 2 hours with ProGlove Charging Station |
| Operating time / Scans | approx. 7500 scans depending on the application and environmental conditions |
| Mechanical Properties | |
| Dimensions | 50 x 45 x 18 mm (1.47 x 1.77 x 0.7 in) |
| Weight | 48 g (1.7 oz) |
| Environmental Conditions | |
| Drop resistance | 50 drops from 2 m (6.5 ft) onto concrete |
| Tumbles | 500 tumbles from 1 m |
| Protection against dust and water | IP 54 |
| Temperature | |
| Operating Temperature | 0°C - 45°C (32°F – 113°F ) |
| Charging Temperature | 5°C - 40°C (41°F – 104°F ) |
| Storage Temperature | -20°C - 60°C (-4°F – 140° F) |
| Humidity | 5% - 95% non-condensing |
| Electrostatic Discharge (ESD) | +/-19kVdc air discharge +/-17kVdc contact discharge |
| Interfaces | |
| Android | Insight Mobile (App/SDK) |
| IOS | ProGlove iOS SDK |
| USB | ProGlove Gateway |
| Scanner Properties | |
| Reading field of view | Standard range: horizontal: 48°, vertical: 36.7°
Mid range: horizontal: 31°, vertical 23° |
| Skew, Pitch & Roll | Skew tolerance: ±60°
Pitch tolerance: ±60° Roll tolerance: 360° |
| Ambient light | 0 - 96,900 lux |
| Aimer | 650 nm, 1 mW |
| Scan Ranges | Minimum distance determined by symbol length, scan-angle and environmental conditions |
| Standard range | |
| The smallest symbol in the barcode (the mil-inch (mm) number indicates the size of the smallest function in the barcode) | Possible distance between user and barcode |
| 3 mil code 39 | 2.8 in./7.1 cm to 6.2 in./15.8 cm |
| 5 mil code 128 | 2.3 in./5.8 cm to 8.7 in./22.1 cm |
| 5 mil code PDF417 | 3.0 in./7.6 cm to 8.1 in./20.6 cm |
| 10 mil DataMatix | 2.4 in.6.1 cm to 10.6 in./26.9 cm |
| 100% UPCA | 1.6 in./4.1 cm to 23.0 in./58.4 cm |
| 20 mil code | 39 1.6 in./4.1 cm to 36.3 in./92.2 cm |
| Mid Range | |
| 5 mil (0.127 mm) code 128 | 7.4 in./18.8 cm to 16.0 in./40.6 cm |
| 5 mil (0.127 mm) PDF417 | 8.1 in./20.6 cm to 13.1 in./33.3 cm |
| 10 mil (0.254 mm) DataMatrix Example: A 10 mil DataMatrix symbol, which can carry 25 alphanumeric characters, has a size of 4.57 mm * 4.57 mm | 7.0 in./17.8 cm to 17.0 in./43.2 cm |
| 100% UPCA | 2.3 in./5.8 cm to 38.0 in./96.5 cm |
| 20 mil (0.508 mm) code 39 | 2.1 in./5.3 cm to 54.0 in./137.2 cm |
| 100 mil (2.54 mm) code 39 | 11.0 in./ 27.9 cm to 172.0 in./ 436.9 cm |
| Warranty | 12 months factory warranty |
| ProGlove care | 36 and 60 months maintenance contracts available. For more information please contact your ProGlove representative or visit https://proglove.com |
| Safety and Regulatory | |
| Radio and electromagnetic compatibility | EU: 2014/53/EU Radio Equipment Directive (RED) FCC ID: 2AOJL-MARK-2 IC: 23450-MARK2 |
| Electrical safety EU | acc. to 2014/53/EU Radio Equipment Directive (RED) EN 62368-1:2014 / A11: 2017 INTERNATIONAL: IEC 62368-1:2014 US: UL 62368-1, 2nd Ed, 2014-12-01 and CAN/CSA C22.2 No. 62368-1-14 |
| LED classification | Standard Range: Excluded risk group LED product according to IEC/EN 62471 |
| Laser classification | According to EN 60825-1: 2014 and IEC 60825-1 (Ed. 3.0) Laser class 2 device. Caution Laser Radiation - Do not stare into beam. |
| Environmental | RoHS Directive 2011/65/EU; Amendment 2015/863, REACH SVHC 1907/2006, WEEE |
