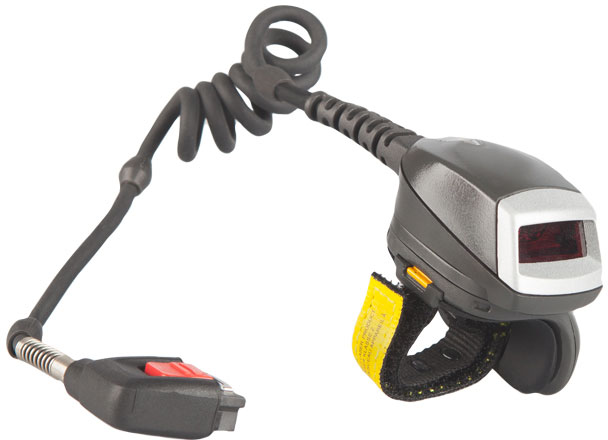

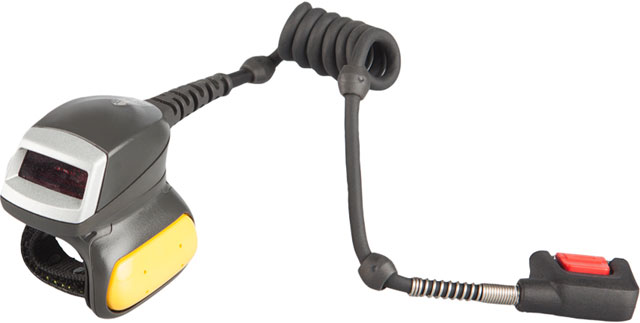

Zebra RS4000 1D Ring Scanner
POSMarket SKU: Z4233
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
When paired up with Zebra's WT6000 wearable mobile computer, the RS4000 ring scanner keeps your workers hands and eyes free for items they are handling. This results in increased productivity and minimises manual handling incidents and errors. With Zebra's 1D high performance scan engine, the RS4000 provides a scan range from near contact to 4.5m, perfect for distribution centres and warehouses.
Product Overview
With Zebra's patented Adaptive Scanning technology, to capture barcodes from near contact to 15 ft./4.5 m, a bright scan line ensuring easy aiming for first-time capture of barcodes and support for a broad range of scanning capabilities, the RS4000 1D ring scanner improves worker productivity and accuracy.
Using Zebra's multi-modal solution, you can boost worker productivity by 15% - with 39% fewer errors than typical speech-only wearables. Pairing the WT6000 wearable computer with the RS6000 or RS4000 ring scanner, HS3100 or HS2100 headset and our TekSpeech Pro 4 software, give your workers the hands-free mobility they need to boost productivity to a new level.
Increase productivity with a wide working range
Zebra's patented Adaptive Scanning technology allows workers to capture barcodes from near contact to 4.5 m.
A liquid polymer scan element with a lifetime warranty
Friction and wear are eliminated, maximising uptime and worker productivity, along with a low total cost of ownership.
A bright scan line
The easy to see scan line ensures easy aiming for first-time capture of barcodes in virtually any lighting condition. And with an oversize LED light, users can easily see when a scan is successful.
Product Specifications
| PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS | |
| Dimensions | 4.8 cm H x 3.6 cm W x 4.8 cm |
| Weight | 56.7 g |
| Current | 92 mA typical/121 mA max (one LED on) |
| Standby Current | 12 µA typical/60 µA max |
| Battery Backup | Rechargeable UPS battery for operation during power loss; internal rechargeable battery for multiple months of real-time clock backup |
| Voltage | 3.1 VDC to 3.6 VDC |
| PERFORMANCE CHARACTERISTICS | |
| Light Source | 650nm LASER 1.7mW peak power |
| Yaw; Roll; Pitch | ± 40° from normal; ± 35° from vertical; ± 65° from normal |
| USER ENVIRONMENT | |
| Operating Temp. | -22° to 140° F/-30° to 60° C |
| Storage Temp | -25° to 160° F/-40° to 70° C |
| Humidity | 5% to 95% non-condensing |
| Ambient Light Immunity | Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450 Ft. Candles (4,844 Lux) Sunlight: 10000 Ft .Candles (107,640 Lux) Note: LED lighting with high AC ripple content can impact scanning performance |
| Sealing | IP54 |
