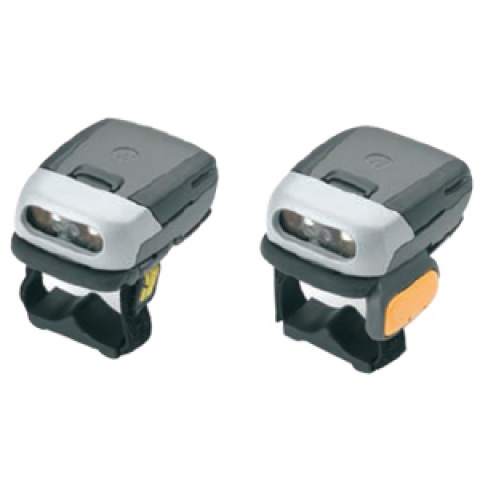

Zebra RS419 Ring Scanner

$1,152.42 (incl. GST)

POSMarket SKU: Z4232

RS419-HP2000FSR: RS419 Corded Ring Scanner. Short cable, 1D-SR Laser scanner


Experience the freedom of enhanced productivity with the RS419 1D ring scanner, a compact and lightweight device designed to complement Zebra WT4XXX wearable mobile computers. By equipping workers with this powerful combination, their hands and eyes remain focused on the items they handle, optimizing efficiency and accuracy. With the RS419 ring scanner seamlessly integrated into their workflow, users can enjoy unhindered mobility and increased productivity, allowing for smoother operations in various work environments.

Product Overview

Put the latest in scanning technology at the fingertips of your workers with the RS409 Ring Scanner. Worn directly on the finger or over a gloved hand, this scanner combines all-day comfort with real-time high-performance scanning, boosting productivity and reducing errors and costs throughout the enterprise for a rapid return on investment. Part of the WT4000 Series Wearable System, the RS419 is designed for use in the most demanding and scan-intensive environments, delivering maximum uptime - and a total cost of ownership.

Features
  • Hands-free scanning
    • Ring scanner design leaves hands free to move packages and other materials, improving worker productivity and operational efficiency.

  • Wide working range
    • Patented Adaptive Scanning technology enables scanning from near contact to 15 ft./ 4.5 m for increased worker productivity.

  • Superior scanning performance
    • Fast and accurate capture of even damaged and poorly printed bar codes.

  • Patented liquid polymer scan element with lifetime warranty
    • Eliminates friction and wear for superior durability and reliability.

  • Bright scan line
    • Enables first-time capture of bar codes in different lighting conditions.

  • Die cast zinc scan engine chassis, single board construction and scan engine isolation
    • Provides superior impact protection for the scan engine.

  • Cable wear beads
    • Protects the areas of the cable most vulnerable to wear and tear.

  • Supports Reduced Space Symbology (RSS)
    • Broad range of scanning capabilities increases investment protection.

  • Swivel feature
    • Enables easy switching from right to left hand use.

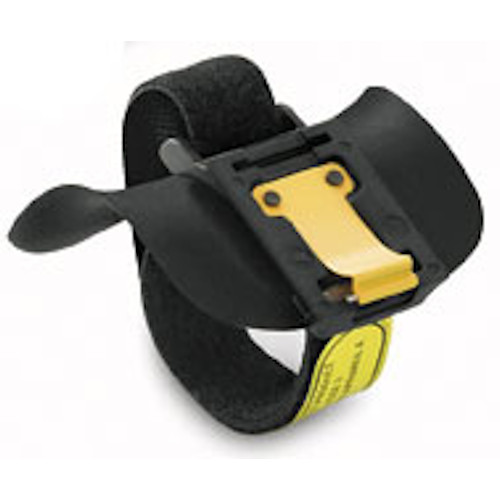

  • Separate finger strap assembly
    • Improves hygiene and personalization; easy to replace.

  • Superior trigger ergonomics
    • Accommodates wide range of gloved or ungloved hand sizes; large accessible trigger makes it easier to use over long periods.

  • Oversize LED light
    • Enables users to quickly and easily confirm completion of a scan.

Product Specifications

PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS
Dimensions4.8 cm H x 3.6 cm W x 4.8 cm
Weight 56.7 gm
Current92 mA typical/121 mA max (one LED on)
Standby Current 12 µA typical/60 µA max
Voltage3.1 VDC to 3.6 VDC
PERFORMANCE CHARACTERISTICS
Light Source650nm LASER 1.7mW peak power
Scan Rate92 min., 104 typical, 116 max. scans/sec (bidirectional)
Yaw; Roll; Pitch±40° from normal; ±35° from vertical; ±65° from normal
USER ENVIRONMENT
Operating Temp. -22° to 140° F/-30° to 60° C
Storage Temp. -25° to 160° F/-40° to 70° C
Ambient Light Immunity Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450 Ft Candles (4,844 Lux) Sunlight: 10000 Ft Candles (107,640 Lux) Note: LED lighting with high AC ripple content can impact scanning performance
Drop SpecMultiple 4 ft./1.2 m drops to concrete from -4° to 122° F/-20° to 50° C; multiple 3 ft./0.9 m drops to concrete at -22° F/-30° C
