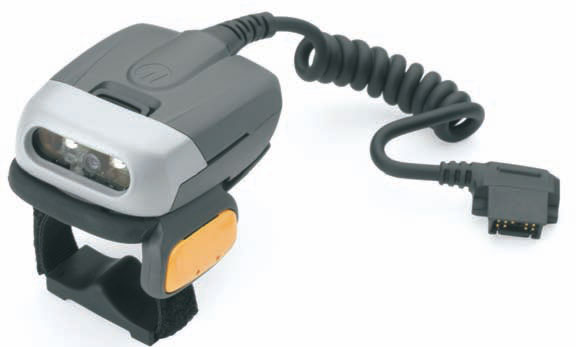

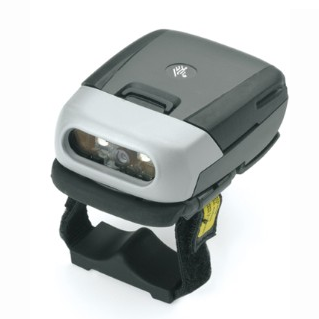

Zebra RS507 Ring Imager

from $1,171.39 (incl. GST)

POSMarket SKU: Z4053

This model is available in 5 different configurations. Select a configuration below or contact our experts on 1300 737 998.

Hands-free cordless (or corded) 1d/ 2D Imager - Increase productivity in scan intensive applications with maximum flexibility, comfort, functionality and performance.

Product Overview

Give your workers the superior blend of technology, form and function needed to achieve a new level of productivity in package handling and warehouse applications with the RS507. Advanced ergonomics and Bluetooth cordless freedom deliver unparalleled freedom of movement and user comfort - regardless of hand size or hand preference. Best-in-class scanning performance includes stunning laser-like performance on both 1D and 2D bar codes and omnidirectional scanning, eliminating the need to align bar code and scanner. And as the most rugged scanner in its class, the RS507 offers reliable performance in demanding environments - from the loading docks to the warehouse floor and assembly line.

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning barcodes to meet government regulations for tracking and tracing of product the Zebra RS507 Ring Hands-Free Imager delivers the superior blend of technology form and function your workers need to achieve a new level of scanning efficiency in your operations.

RS507 Hands-Free Imager, a 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer

Features
  • Hands-free scanning
  • Bluetooth cordless freedom
  • Optional corded WT4000 adapter
  • Reads 1D and 2D barcodes
  • Exceptional motion tolerance
  • Bright central dot ensures quick, accurate scanning
  • Multiple field replaceable components
  • Compatible with Motorola"s Mobility Software Platform (MSP)
  • Motorola Interactive Sensor Technology (IST)
  • New manual triggering mechanism with easy swivel
  • Magnesium chassis with 6 ft. drop specification,
  • IP54 sealing,
  • Extended operating temperature range (-4 degrees to 131 degrees F/-20 degrees to 55 degrees C)
  • Dual rear LEDs and high power beeper

Product Specifications

General
TypeBarcode scanner - portable
Barcode
Interface TypeBluetooth 2.1
Minimum Bar Width5 mil
Scan Element Type2D imager
Sensor Resolution752 x 480
Light Source Wave Length655 nm
Scan ModeSingle-pass
Frame Rate60 frames / sec
Max Working Distance24.6 in
Skew (Degrees)60
Pitch (Degrees)60
Decode CapabilityCode 93, Industrial 2 of 5, Code 39, QR code, MaxiCode, Aztec code, Code 32, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Australian Post, British Post, Japanese Post, Kix (Netherlands) Post, IATA 2 of 5, UPC-E1, Trioptic Code, EAN-UCC Composite, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited
Connectivity TechnologyWireless
OK NotificationBeeper, LED indicator
FeaturesTriggerless
Networking
Wireless ConnectivityBluetooth 2.1
Processor
Clock Speed624 MHz
Miscellaneous
Compliant StandardsICES-003 Class B, FCC Part 15 B, AS/NZS 60950-1, EMC, R&TTE, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1
Power
Battery1 x lithium ion
Dimensions & Weight
Width2.1 in
Depth2.9 in
Height1.1 in
Weight4.28 oz
Environmental Parameters
Min Operating Temperature-4 F
Max Operating Temperature131 F
Humidity Range Operating5 - 85%
Drop Specification6 ft to concrete
