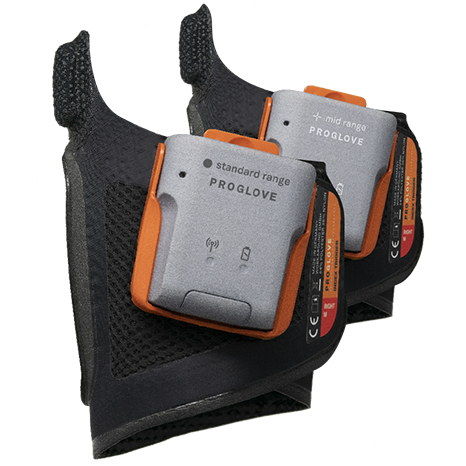

ProGlove Mark Basic
POSMarket SKU: Z20018
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Mark Basic series, Mid Range and Standard Range, 1D and 2D barcode scanner
Product Overview
Two versions of MARK Basic to cover all your applications:
- Standard range
- Mid range
The mid range version is ideal for situations in which the scan distance changes within the same tasks. The optimal scan distance ranges from 30 cm up to 150 cm / 1ft. to 5 ft.. This makes MARK Basic perfect for warehouse applications, where barcodes are placed on shelves or pallets. The laser cross enables precise aiming even from a greater distance.
Features
- Mid Range 1D and 2D barcode scanner
- Transmission feedback (acoustic, optical, haptic)
- Wireless transmission (Bluetooth Low Energy)
- Battery life for up to 3000 scans
- 1.5 oz
- Bidirectional communication
- Wireless Firmware Update
- 1-year warranty
Features
- Standard Range 1D and 2D barcode scanner (4 in - 31 in)
- Transmission feedback (acoustic, optical, haptic)
- Wireless transmission (Bluetooth Low Energy)
- Battery life for up to 5,000 scans
- 1.5 oz
- Wireless Firmware Update
- 1 year warranty
Product Specifications
| ProGlove MARK Basic (mid range or standard range) | |
| Wireless Communication | |
| Bluetooth Low Energy | |
| Bluetooth radio | Supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0 |
| Frequency range | Frequency band used BLE: 2400-2483.5 MHz |
| Max radio-frequency Power transmitted | < 20dBm |
| Transmission Range | |
| 3rd party device Free field: 40 m (131 ft ) Indoor: 10-20 m (33-66 ft) | ProGlove Gateway Free field: 70 m (230 ft ) Indoor: 30-40 m (100-130 ft) may decrease in industrial environments (e.g. due to walls, metal shelving, machines) |
| Barcode Decoding Capabilities | |
| 1D | Auto decodes all standard 1D codes including GS1 DataBar linear codes et al. |
| 2D | PDF417, MicroPDF417, Data matrix, QR Code, Micro QR Code, Aztec, MaxiCode et al. |
| POSTAL | US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal (KIX) et al. |
| Electrical Properties | |
| Battery | 335 mAh, Lithium polymer (rechargeable) |
| Charging time | 2 hours with ProGlove Charging Station |
| Operating time/ Scans | Approx. 7000 scans depending on the application and environmental conditions |
| Mechanical Properties | |
| Dimension | 50 x 45 x 16 mm (1.47 x 1.77 x 0.63 in) |
| Weight | 40 g (1.41 oz) |
| Environmental Conditions | |
| Drop resistance | Resists 50 drops from 2 m (6.5 ft) onto concrete |
| Protection against dust and water | IP43 |
| Temperature | |
| Operating Temperature | 0°C - 50°C (32°F – 122°F) |
| Charging Temperature: | 5°C - 40°C (41°F – 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Humidity | 5% - 95% non condensing |
| Electrostatic discharge (ESD) | ±8kVdc air discharge ±4kVdc contact discharge |
| Interfaces | |
| BlueTooth | HID Profiles |
| Android | HID, Insight Mobile (Android) (App/SDK) |
| IOS | HID, Insight Mobile (iOS) (SDK) |
| USB | ProGlove Gateway |
| Scanner Properties | |
| Reading field of view | Standard range: horizontal: 48°, vertical: 36.7° Mid range: horizontal: 31°, vertical 23° |
| Skew, Pitch & Roll | Skew tolerance: ±60° Pitch tolerance: ±60° Roll tolerance: 360° |
| Ambient light | 0 - 96,900 lux |
| Aimer | 650 nm, 1 mW |
| ScanRanges | |
| Minimum distance determined by symbol length, scan-angle and environmental conditions. | |
| Standard Range 3 mil code 39 5 mil code 128 5 mil code PDF417 10 mil DataMatix 100% UPCA 20 mil code | Possible distance between user and barcode 2.8 in./7.1 cm to 6.2 in./15.8 cm 2.3 in./5.8 cm to 8.7 in./22.1 cm 3.0 in./7.6 cm to 8.1 in./20.6 cm 2.4 in.6.1 cm to 10.6 in./26.9 cm 1.6 in./4.1 cm to 23.0 in./58.4 cm 1.6 in./4.1 cm to 36.3 in./92.2 cm |
| Mid Range | |
| The smallest symbol in the barcode (the mil-inch (mm) number indicates the size of the smallest function in the barcode) | Possible distance between user and barcode |
| 5 mil (0.127 mm) code 128 | 7.4 in./18.8 cm to 16.0 in./40.6 cm |
| 5 mil (0.127 mm) PDF417 | 8.1 in./20.6 cm to 13.1 in./33.3 cm |
| 10 mil (0.254 mm) DataMatrix Example: A 10 mil DataMatrix symbol, which can carry 25 alphanumeric characters, has a size of 4.57 mm * 4.57 mm | 7.0 in./17.8 cm to 17.0 in./43.2 cm |
| 100% UPCA | 2.3 in./5.8 cm to 38.0 in./96.5 cm |
| 20 mil (0.508 mm) code 39 | 2.1 in./5.3 cm to 54.0 in./137.2 cm |
| 100 mil (2.54 mm) code 39 | 11.0 in./ 27.9 cm to 172.0 in./ 436.9 cm |
| Utilities & Accessories | |
| Configuration & device management | https://insight.proglove.com |
| Digital documentation | https://docs.proglove.com |
| Android integration | Insight Mobile (Android): Provides a full featured integration for Android enterprise applications. |
| IOS integration | Insight Mobile (iOS): Provides an SDK for basic integration for iOS enterprise applications. |
| Gateway integration | ProGlove Gateway: Hardware connector to enable the full capabilities of the ProGlove Ecosystem via USB-Interface. |
| Trigger | Scanner can be triggered only with ProGlove wearables (REEL, IndexTrigger et al.) *More Information on www.proglove.com |
| Warranty | 12 months factory warranty |
| proGlove Care | 36 and 60 months maintenance contracts available. |
| Safety and regulatory | |
| Radio and electromagnetic compatibility | EU: 2014/53/EU Radio Equipment Directive (RED) FCC ID: 2AOJL-MARK-2 IC: 23450-MARK2 ELECTRICAL SAFETY EU: acc. to 2014/53/EU Radio Equipment Directive (RED) EN 62368-1:2014 + A11:2017 INTERNATIONAL: IEC 62368-1:2014 US: UL 62368-1, 2nd Ed, 2014-12-01 and CAN/CSA C22.2 No. 62368-1-14 LED Classification Standard Range: Excluded risk group LED product according to IEC/EN 62471 LASER Classification Mid Range: According to EN 60825-1: 2014 and IEC 60825-1 (Ed. 3.0) Laser class 2 device. Caution Laser Radiation - Do not stare into beam. Environmental RoHS Directive 2011/65/EU; Amendment 2015/863, REACH SVHC 1907/2006; WEEE |
