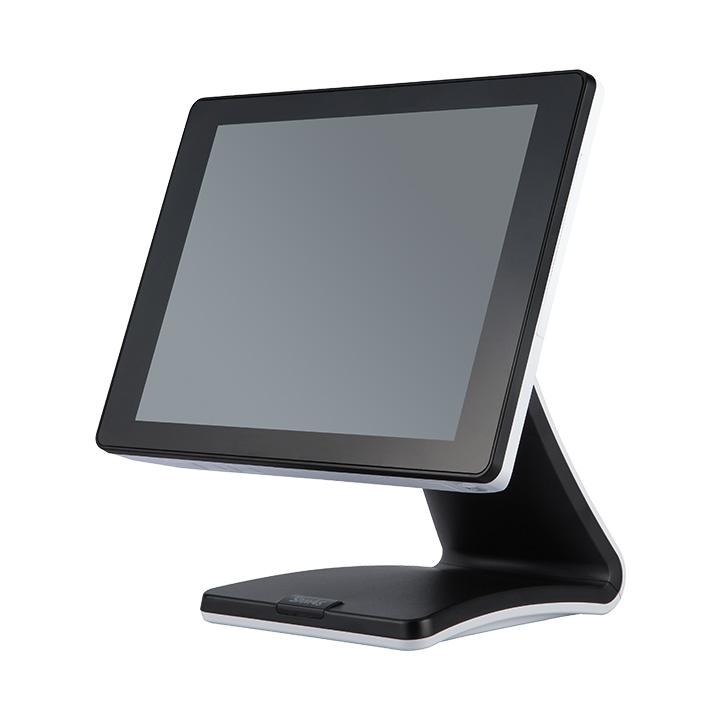

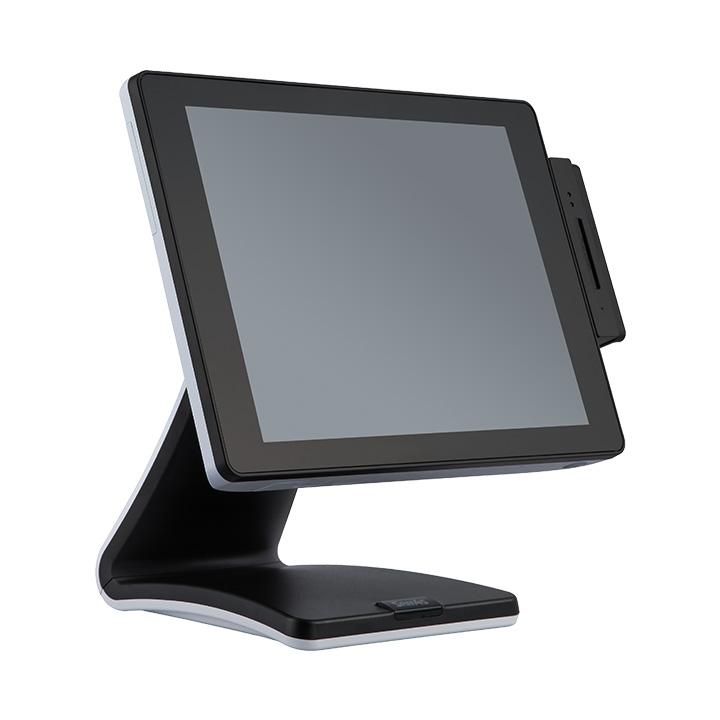

SAM4S TITAN-S360
POSMarket SKU: Z14013
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Touch Terminal Series. - Combining Style, Performance & Reliability.
Product Overview
Sam4s now welcomes the Titan S360, offers vibrant & precise 15" projected capacitive multi-touch display and is extremely durable in most environments including withstanding water contact, dust & grease (IP55 Rated).
Incorporating the latest Intel Celeron fanless processors' combines speed and efficiency along with quiet operation the Sam4s Titan S360 is one of the fastest & quietest PC POS terminals in its class. Coupled with its on board 64GB SSD, ensures that the solid state drive remains dust free & ingress free, ideal for harsh retail & hospitality environments.
With its spill proof multi-touch bezelless display, ergonomic design and innovative base, the Sam4s Titan S360 is one of the most stylish and aesthetically pleasing point of sale terminals in its class. With either traditional stand or VESA options for wall & pole mount provides greater flexibility of installation.
Feautures
- Industrial Quality LED Display 15" True Waterproof Flat Front Display.
- 15" TFT LED, LVDS 1024 x 768 PCT (Projective Capacitive Multi-touch Display).
- Intel Celeron J1900 2.42Ghz Quad Core Fanless.
- DDRIII 1 Slots 4GB Memory up to 8GB.
- 1 x 10/100/1000 Mbps LAN.
- Tool-less Design Provides Easy Installation and Maintenance.
- S Slim Style Designed Base.
- External Power Supply for Easy Maintenance.
- Small Footprint.
- Vesa Wall or Pole Mountable.
- Windows POS Ready 7 or Windows IoT10 Option.
Product Specifications
| SYSTEM | |
| CPU | Intel Bay Trail J1900 up to 2.42G Quad core (2M Cache) |
| Memory | DDRIIIL One slot. 4GB standard expandable to 8GB DDRIIIL expansion slots: mini PCIe slot & m.2 Slot |
| Storage device(s) | In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives |
| DISPLAY & TOUCH | |
| Display | 15" LED Backlight LCD Display |
| Resolution | 1024 x 768 |
| Touch Panel | True Flat PCAP Touch (Standard in Australia)Optional; 5 Wire Resistive touch (Special Order, MOQ Applies) USB I/F |
| I/O EXPANSION | |
| I/O Ports | 4 x RS-232 Ports (2 x DB9, 1 x RJ45) with 5V/12V BIOS selectable, one port selectable to RS422/485 6 x Standard USB Ports (2 x USB 2.0/2 x USB 3.0 on Bottom, 2 x USB 2.0 on the side) 1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability 1 x VGA Port for 2nd Display + 12V power outlet 1 x Parallel port (Factory Option) 1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable 1 x Audio Ports (Line out) |
| OS Support | POSReady 7 / WIN 8 Industry Retail / WIN IoT |
| ENVIRONMENTAL | |
| Environmental Sealing | IP55 to Front |
| Operating Environment | 0 ~ +40 °C, 20 ~ 85% RH with SSD |
| Storage Environment | -20 ~ +60 °C, 10 ~ 85% RH |
| PHYSICAL | |
| Power Supply | DC 12V/5A |
| External Dimensions | 380mm x 380mm x 380mm |
| Weight | 5.9 Kg |
