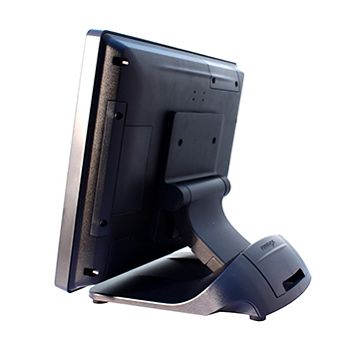

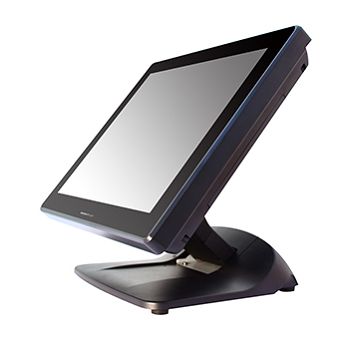

Posiflex XT-3815

from $1,351.97 (incl. GST)

POSMarket SKU: Z1802

This model is available in 23 different configurations. Select a configuration below or contact our experts on 1300 737 998.

The XT-3815 series is the upgrade on the popular XT-3015 platform, it stands out by its streamlined and patented aluminium die-cast housing design, projective capacitive touch screen, optional UPS functions. Spill-resistant and anti-dust features allow it to operate effectively even in harsh environments.

Product Overview

Powered by Intel processor up to Elkhart Lake, the XT-3815 features a 15; bezel-free true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, the XT-3815 looks right at home at any elegantly decorated store. And more than just good looks, the XT-3815 also offers ample of performance and flexibility to satisfy the most demanding of daily POS operations.

The XT-3815 series is the upgrade on the popular XT-3015 platform, it stands out by its streamlined and patented aluminium die-cast housing design, Projective Capacitive Touch screen, optional UPS functions. Spill-resistant and anti-dust features allow it to operate effectively even in harsh environments.

Features
  • PC POS Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 15'' LCD 1024 x 768 resolution
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • Intel J1900 Quad CoreCPU up to 2.42 GHz 2M Cache and DDR3L memory
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • RAID 1 (Disk Mirroring) support to backup important data (Optional)
  • Push-open cover to protect power switch from accidental shutdown
  • New Gen 7 Slim line Base (Patent pending)
  • Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules

Product Specifications

SYSTEM
CPUIntel Bay Trail Quad Core Celeron J1900 / 2.0 GHz ~ 2.42 GHz
MemoryDDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
TOUCH & DISPLAY
Display15" TFT LED Backlit LCD Display
Resolution1024 x 768
Tilt Angle15Deg to 90 Deg
Touch PanelBezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O
I/O Ports4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 6 x USB2.0)
Optional Powered USB Ports 1 x 24V & 3 x 12V on GEN 8 Base
1 x Proprietary USB port for side mount optional devices
1 x Parallel Port through service window (Optional Proprietary Cable)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Mini-PCIe slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Audio2W Speaker
OS SupportWindows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / Linux per request
ENVIRONMENTAL
Environmental SealingN/A
Operating Environment0 ~ +50 C, 20 ~ 90% RH with SSD
0 ~ +40 C, 20 ~ 90% RH with HDD
Storage Environment-20 ~ +70 C, 10 ~ 90% RH
PHYSICAL
Power Supply12V DC Power Adapter (60W)
(Optional 80W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)372mm x 320mm x 252.7mm
Weight5.6 Kg
Loading configurations…
Loading accessories…
Loading downloads…
