SAM4S SPT3700
POSMarket SKU: Z1983

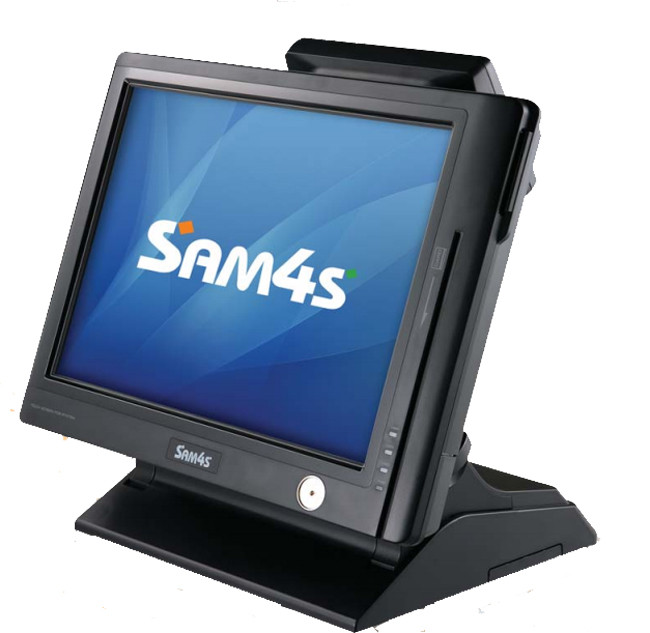

SPT3700: SPT-3700 Touch Screen POS Terminal. 15" Resistive touch, ATOM Dual Core CPU, 2GB RAM, 32GB SSD
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
High performance fanless touch POS terminal. The SPT-3700 is a stylish touch POS system with the latest dual core CPU and has a user friendly design capable of supporting various options and interfaces.
Product Overview
Features include built in magnetic stripe reader, 1.86GHz CPU, low noise fan free, USB, RS-232C and parallel interfaces.
Supports Windows XP, WEPOS and POSREady 2009 operating systems.
- PC POS Touch System
- 15" LCD Display with 5-wire Resistive Touch Screen
- ATOM Dual Core D2550 1.86 Ghz CPU
- 32 GB SSD
- 2 GB DDR3 RAM expandable to 4 GB
- Built in Magnetic Stripe Card reader
- Powered Serial ports
- Factory Option: CF Slot
- Option: 2 Line rear Mounted Display or 2nd LCD Display
Product Specifications
| CPU | Intel Atom Cedarview D2550 1.86GHZ Without FAN Intel NM10 with embedded Graphics |
| Memory | DDR3 800 MHz, SO-DIMM socket x 2, max 4 GB, default 2 GB |
| Storage device(s) | In Australia Standard with 32 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives |
| Display | 15" Active Matrix LCD Display, BezelFree Backlight : 250 nits, 50,000 hours of product life (CCFL type) |
| Resolution | 1024 x 768 |
| Tilt Angle | Not available |
| Touch Panel | Bezel Free: 5-Wire Resistive Type Interface : Serial COM5 Transparency : 80% Surface Hardness : 3H Hitting Life : 35 million times |
| I/O Ports | COM(Serial) port : D-SUB 9P x 3 ports / RJ-45 x 2 ports (COM6 is not allowable when using Option CDP) 5V or 12V or RI outputs through COM 1. 2. 3. 4 (BIOS setup) PARALLEL port : D-SUB 25P x 1 port USB port : USB 2.0 side x 2Ports / back x 4 Ports Ethernet port : 10M / 100M / 1GB LAN RJ-45 x 1 Port VGA Port : D-SUB 15P x 1 DC-OUTPUT port : 12 V DC-OUT 2.5 mm plug x 1 Audio port : Line-in x 1 / Line-out x 1 / Mike-in x 1 |
| Audio | 2W Internal Speaker |
| OS Support | |
| Environmental Sealing | N/A |
| Operating Environment | 0 ~ +40 °C, 20 ~ 90% RH |
| Storage Environment | -20 ~ +70 °C, 10 ~ 90% RH |
| Power Supply | AC INPUT : AC 100~240V / 50~60Hz, 1.5A DC OUTPUT : 12V / 5.0A (60W) |
