SAM4S SPT3000
POSMarket SKU: Z1982
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

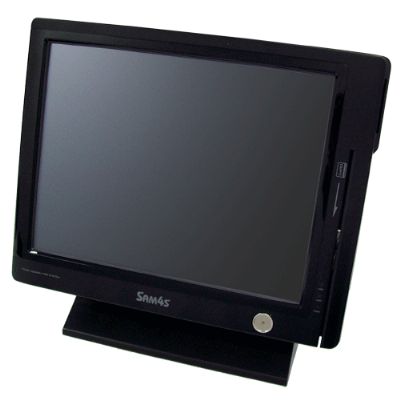

The SPT-3000 is a new Touch Screen System from SAM4S which fits perfectly in a wide variety of POS applications. It uses the new low power consumption Intel Atom Processor.
Product Overview
- PC POS Touch System
- 15" LCD Display with 5-wire Resistive Touch Screen
- ATOM 1.6 Ghz CPU
- 80 Gb Hard Disk
- 1 Gb RAM expandable to 2Gb
- Powered Serial ports
- Optional CF Slot
- Optional MSR, 2 Line Pole Display or 2nd LCD Display
Product Specifications
| Processor: | Intel Atom N270 1.6GHz L2 Cache 512KB |
| FSB: | 533 MHz |
| Socket Type: | BGA |
| Display LCD: | 15" TFT LCD |
| Resolution: | 1024 X 768 |
| Brightness | Adjustable up to 250 cd/m2 |
| Integrated Speaker: | Integrated 2 Watt Speaker |
| Chipset: | INTEL 945GSE(NB) + ICH7M(SB) |
| Touch Panel: | 5-Wire Resistive Touch |
| MCR: | Integrated Dual Track MCR |
| Hard Drive: | Optional Integrated 2.5" with SATA Interface |
| RAM Memory: | SODIMM DDR2 533/667/800 1GB Expandable to 2GB |
| Video Memory: | Shared Memory up to 128MB for Primary LCD |
| Compact Flash Disk: | Optional Type II Compact Flash Card Slot |
| Mini-PCIe: | One Slot on Motherboard |
| Parallel Port: | One DB25F |
| USB Ports: | Five V2.0 (1 Left Side / 4 Rear / Additional 1 Optional) |
| Cash Drawer Port: | Optional RJ11, Selectable 12V or 24V
Maximum 2 Drawers Supports Open/Close |
| Keyboard Port: | Not Applicable (Use USB Port) |
| LAN Port: | RJ45 10/100/1000 Base-T (Giga LAN) INTEL 82574L |
| VGA Port: | One DB15F Display Port for Second LCD |
| Audio Port: | One Line-Out |
| Mic Port: | One Mic-In |
