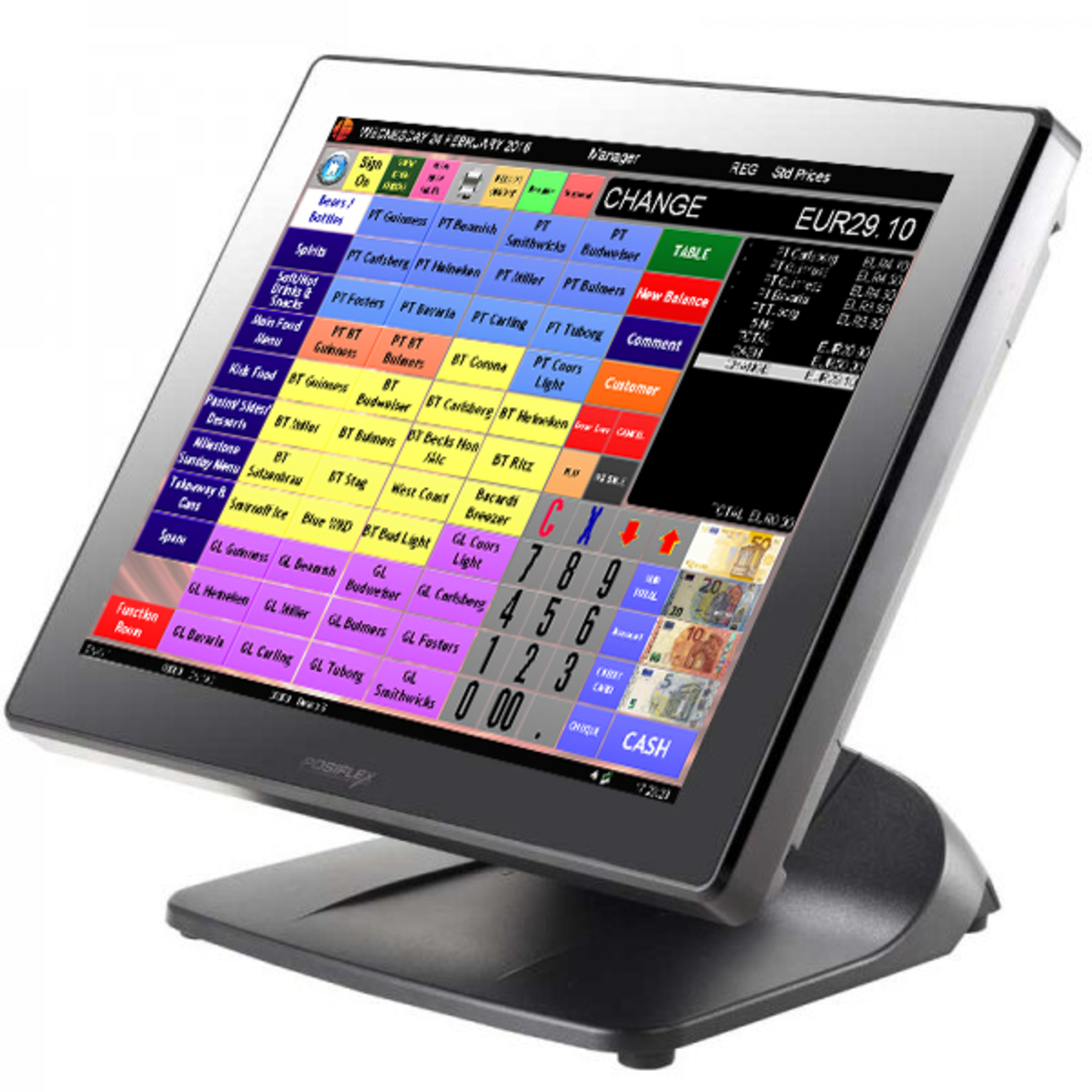

Posiflex XT-5515
POSMarket SKU: Z1805
This model is available in 10 different configurations. Select a configuration below or contact our experts on 1300 737 998.
In todays retail and hospitality market, POS terminal is no longer just a cold and hard business tool. It is a part of the store decoration, a part of the store image. Each curve and detail of the POS terminal should add something to the overall mood of the store, to lift the shopping experience of the customers.With the true-flat PCAP touch screen supporting 10 points multi-touch, beautifully sculptured slim body, nicely curved base stand, Posiflex JIVA XT-5515 looks right at home at any elegantly decorated store. And more than just good looks, Posiflex JIVA XT-5515 is powerful enough to handle any task imaginable that comes its way.
Product Overview
- Fan-free Design
- Projective Capacity Touch
- Intel 4th generation Haswell CPU
- Standard config with i5, can be ordered with i7

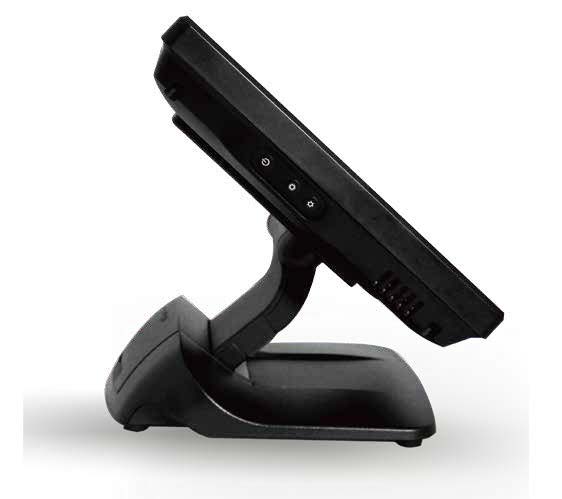

- New GEN7E foldable base that allows JIVA XT Series to be configured into different configurations
- Optional GEN8E foldable base that integrates internal power adaptor and Powered USB ports into the base stand
- Mini-PCIe expansion slot
- Dual LAN ports
Product Specifications
| CPU | Intel Core i5-4570TE 2.7GHz 4M Cache (Standard config. in Australia) Intel Core i7-4770TE 2.3Ghz 8M Cache |
| Memory | DDR3 1333MHz, SO-DIMM socket x 2, max 16 GB, default 4 GB |
| Storage device(s) | In Australia Standard with 32 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives |
| Display | 15' TFT LED Backlit LCD Display |
| Resolution | 1024 x 768 |
| Tilt Angle | 15 Deg to 90Deg |
| Touch Panel | Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch |
| I/O Ports | 6 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ50 on I.O Plate) pin header x 2 from service window, with 5V/12V Support 6 x Standard USB Ports 2 x 10/100/1000Mb Ethernet Port 1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors) 1 x mini-PCLe internal expansion slot 1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 1 x UPS Port (Battery is optional) Optional Parallel port with Proprietory cable Optional powered USB Ports, 1 x 24V and 3 x 12V via GEN8e Base |
| Audio | 2W Speaker Internal x 1 + Line-out |
| OS Support | Windows 7 / POSReady 7 / Linux per request |
| Environmental Sealing | N/A |
| Operating Environment | 0 ~ +50 C, 20 ~ 90% RH with SSD 0 ~ +40 C 20 ~ 90% RH with HDD |
| Storage Environment | -20 ~ +70 C, 10 ~ 90% RH |
| Power Supply | 12V DC Power Adapter (Optional 120W when equiped with 2nd Display) (Optional 150W when equiped with Gen 8 Base with Powered USB I/F) |
| External Dimensions (WxDxH) | 372mm x 320mm x 252.7mm |
| Weight | 5.86 Kg |
