Posiflex RT-2016
POSMarket SKU: Z5758
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

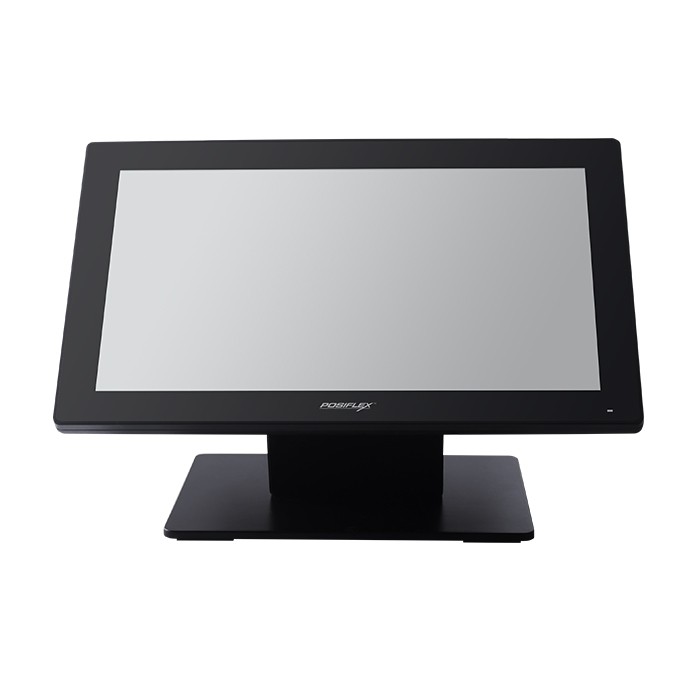

Fanless POS (PCAP) Touch Screen Terminal - Stylish Slim Terminal - Mid-Range Performance - Widescreen.
Product Overview
The RT-2016 is a fanless POS terminal refined in every detail which is more powerful and slimmer and can be used for more applications. It features an ultra-slim 15.6" touch screen and sleek body which makes the unit stylish and space-saving. The RT-2016 is taking POS terminal design into the next level and setting your brand image apart from the others.
Features
- 15.6"/16: 9 widescreen with projected capacitive touch screen.
- Slim, yet Powerful: Embedded Intel Celeron J1900 Quad Core processor, Diverse I/O ports.
- Patented Fanless Technology: Easy to clean and very durable, Spill and dust resistance, Fanless unit runs silently and provides a long service life.
- Clean Cable Management: Advanced cable management design provides easy system upgrade and maintenance
- Faster Installation and Serviceability: Rear cover can be easily removed, allowing for quick access
Product Specifications
| SYSTEM CONFIGURATION | |
| Processor | Intel Bay Trail J1900 Quad Core, up to 2.42 GHz, 2M Cache |
| System Memory | DDR3L SO-DIMM slot x 1, max. 8GB |
| Storage Device | SATA x 2 |
| Power Supply | 12V/60W |
| OS Support | Windows 7/POSReady 7/Windows Embedded 8.1 Industry/ Windows 10 IoT/Linux per request |
| DISPLAY and TOUCH | |
| LCD | 15.6" TFT LCD |
| Resolution | 1920 x 1080 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O EXPANSION | |
| Serial Port | 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports |
| Parallel Port | - |
| Standard USB Port | 5, USB 3.0 x 1 + USB 2.0 x 4 |
| PoweredUSB Port | Optional Powered USB module with 24V + 12V (USB 3.0 x 1 will no longer be available with the Powered USB module) |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | VGA via proprietary connector (12V support for Posiflex monitors) x 1+ mini DP x 1 |
| CR Port | 1, control 2 CR via optional Y-cable, supporting 24V cash drawer |
| PS/2 Port | - |
| UPS Port | - |
| Audio | Internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| PHYSICAL | |
| Dimension (W x D x H in mm) | 402 x 207 x 297 |
| Weight (N. W. in kg) | 5 |
| ENVIRONMENTAL | |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD);0°C - 50°°C, 20%RH - 90%RH (Equipped with SSD) |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| BUILT - IN OPTION | |
| WiFi | M.2 WiFi/BT module |
| Camera | 1MP wide angle camera |
| MSR | - |
| AG Glass | Cannot coexist with built-in camera |
| ATTACHMENT OPTION | |
| POS Monitor | Non-touch TFT LCD: 9.7"/10.1"/15";PCAP touch TFT LCD: 9.7""/10.1" |
| Line Display | 2 x 20 rear-mount VFD customer line display |
| External UPS Pack For RT Series | UPS battery module (12V/2300mAh) |
| Attachment | MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor |
