Posiflex PS-3615
POSMarket SKU: Z14008
This model is available in 4 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The Posiflex PS-3615 is the latest in Posiflex Entry Level PS series POS Terminals. Offering exceptional value & reliability, with latest Intel Apollo Lake J3455 CPU and Windows 10 IoT, the PS-3615 are the ideal touch terminals for cafes, restaurants and any business requiring Posiflex's renowned quality and durability
Product Overview

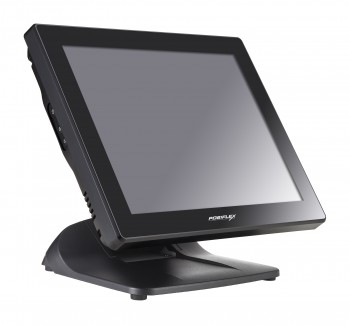

The Posiflex PS-3615 is a 15" fanless PCAP touch POS Terminal with all the essential functions and capabilities to satisfy businesses of all sizes. It represents one of the best value choices in the entry level POS terminal segment.
Features
Intelligently Designed
Equipped with an adjustable base, PS-3615 Series enables the ultimate flexibility for space-limited environments.
Compact
Equipped with Intel Apollo Lake N3350/J3455 processors, PS-3615 Series comes with a 15" PCAP wide touchscreen and is tailored to operate in an ever-changing retail environment.
Expanded Capability
By separating a full set of ports into the top of the terminal, PS-3615 Series provides extensive connections, easy accessibility, and reliable peripheral cabling.
Product Specifications
| SYSTEM CONFIGURATION | |
| Processor | Intel Apollo Lake |
| System Memory | DDR3L SO-DIMM x 1, max. 8GB |
| Storage Device | M.2 connector (SATA Signal Only) x 1 |
| RAID Function | - |
| Intel vPro Support | - |
| TPM Support | - |
| Power Supply | 12V/40W |
| OS Support | Windows 10 IoT |
| DISPLAY and TOUCH | |
| LCD | 15" TFT LCD |
| Resolution | 1024 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O EXPANSION | |
| Serial Port | 4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports |
| Parallel Port | 1, via optional conversion cable through service window |
| Standard USB Port | 5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top) |
| PoweredUSB Port | Optional 24V x 1 + 12V x 3 via GEN8 base |
| OTG USB | N/A |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | VGA x 1, 12V support for Posiflex monitors |
| CR Port | 1, control 2 CR via optional Y-cable, supporting 24V cash drawer |
| PS/2 Port | 1, via optional conversion cable through service window |
| UPS Port | - |
| Audio | Buzzer x 1; Optional internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| PHYSICAL | |
| Dimension (W x D x H in mm) | 372 x 252.7 x 320 |
| Weight (N. W. in kg) | 5.86 |
| ENVIRONMENTAL | |
| Operating Condition | 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD) |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| BUILT-IN OPTIONS | |
| WiFi | M.2 WiFi/BT module |
| Camera | - |
| MSR | - |
| AG Glass | - |
| ATTACHMENT OPTIONS | |
| POS Monitor | Non-touch TFT USB LCD: 7"/9.7" |
| Line Display | 2 x 20 rear-mount VFD customer line display;
2 x 20 rear-mount LCD customer line display; 7" color LCD graphical line display |
| External UPS Pack For RT Series | - |
| Attachment | MSR; iButton; RFID; Fingerprint Sensor; Keypad |
