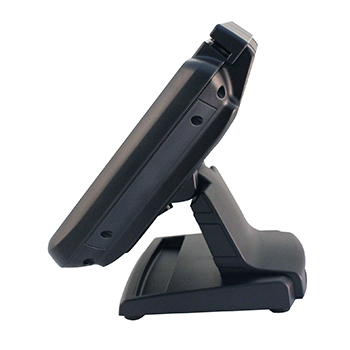

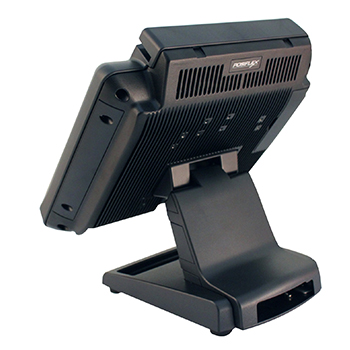

Posiflex KS-7410
POSMarket SKU: Z1929
KS74101261230000: KS-7410. 9.7" PCAP Touch screen, J1900 Quad Core CPU, 4GB RAM, 64GB SSD, Windows POSReady 7 64 bit

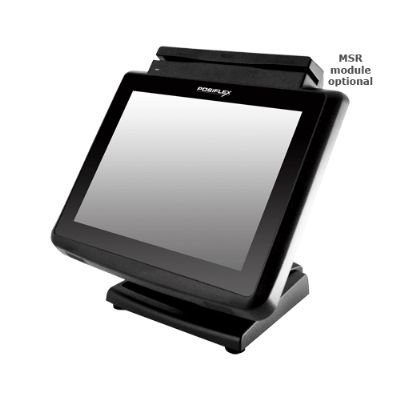

The KS-7410 is a new Fan Free PCAP Touch Screen System which fits perfectly in a wide variety of POS applications. It has an integrated MSR (module is optional) uses a low power consumption Intel Pine View Dual Core Processor. This unit has a very small footprint.
Product Overview
| PC POS Touch System |
| Fan Free Design |
| Cast Aluminium housing |
| 9.7" LCD Display withPCAP multi touch Touch Screen |
| Equipped with Intel Bay Trail J1900 Quad Core, 2.00GHz/2.42GHz, 2M Cache CPUand DDR3L memory |
| 64 GB or higher SSD Standard |
| 4 GB RAM expandable to 8GB, in Australia 4GB default |
| Powered Serial ports |
| Optional MSR module, 2 Line Pole Display |
Product Specifications
| CPU | Intel Bay Trail J1900, 4C, 2.00GHz/2.42GHz, 2M Cache |
| Memory | DDR3L 1333MHz SO-DIMM x 1, max. 8GB, default 4 GB |
| Storage device(s) | In Australia Standard with 64 GB SSD in the Base stand, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives |
| Display | 9.7" TFT LCD Display |
| Resolution | 1024 x 768 |
| Tilt Angle | 20° to 90° |
| Touch Panel | True Flat PCAP touch with 10 Point multi touch |
| I/O Ports | 3 x RS-232 Ports (2 x DB9, 1 x 10 pin RJ50) with 5V Support 6 x USB 2.0 Ports 1 x VGA, 12V support for Posiflex monitors 1 x 10/100/1000Mb Ethernet Port 1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) Extension slot for M.2 x 1 (NGFF2230 for optional WIFI/BT module supporting 802.11ac, 2.4GHz / 5GHz dual band) |
| Audio | Internal 2W Speaker & Line out port |
| OS Support | POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / Windows IoT / Linux per request |
| Operating Environment | 0 ~ +50 °C, 20 ~ 90% RH with SSD 0 ~ +40 °C, 20 ~ 90% RH with HDD |
| Storage Environment | -20 ~ +70 °C, 10 ~ 90% RH |
| Power Supply | 12V DC Power Adapter (50W) |
| External Dimensions (WxDxH) | 260mm x 205mm x 266mm |
| Weight | 3.2 Kg |
