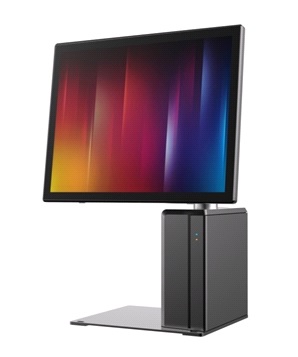

FEC XP-4685
POSMarket SKU: Z20135
TTFIXP4685001: XP-4685. I3 8/128, Windows10, WiFi SOM, stand, 15P, black
XPOS Integration- Modern and powerful point of sale system
Product Overview
From the XP-4000 family of an integration type to have the possibility to add accessories, like printer, keyboard, card reader, or scanner.
The stand can be adjusted from 65° down to 15°. The display can be tilted to 180° angle inside of a compact packaging.
Features
- Intergration
- Various Configuration
- Add Extra
- Thermal Printer
- Keyboard Tray
- Customer Display
- Mounting Kit
- Expandable
The IO can be expanded from one layer into two layers with a single cab - Experience
The ambient light sensor will automatically adjust the display depending on the brightness of the environment. - FEC XPOS XP-4685 (Galaxy Grey)
- XPOS 15 LCD with 400 nits backlight, 50 k hours
- Projective touch (P-Cap)
- Aspect Ratio: 4:3
- Intel Core i3-7100U (software RAID enable)
- 4GB DDR4 RAM
- With M.2 128GB SSD
- 2nd I/O Type C: 2 x COM (RJ45), 1 x 12V Power USB, 1 x Mic-in
- 2 x COM (RJ45), 1 x 12V Power USB, 1 x Mic-in
- With SOM (System On Module)
- Wifi WIFI + Bluetooth Module
- Windows10 IOT Enterprise Value (64bit English)
- I/O in Box
- RJ 45 COM x 3 (COM3, COM4, COM5)
- - USB2.0 TYPE A x 4
- - Powered USB 24V x 1
- - CASHDRAWER (RJ11) x 1 (12V/24V)
- GIGA LAN x 1
- Video port x 1 (from SOM)
- SD card slot x 1 (for content of SOM)
- USB DP x 1 (to connect 2nd display)
- DC-in 20V x 1
- Internal power adapter 130W
- Aluminum Die-casting
Product Specifications
| CPU | Intel Celeron 3965U 2M Cache, 2.20 GHz Intel Core i3 7100U 3M Cache, 2.40 GHz Intel Core i5 7300U 3M Cache, up to 3.50 GHz |
| Memory | 4GB Standard, Max 32GB (2 x So-DIMM DDR4) |
| Storage | 2 x M.2 M Key (SATA III or PCIe) *(Celeron Supports Only One PCIe Storage Device) |
| Connection | 2 x M.2 E Key 802.11ac + BT (Optional) |
| Speaker | 2 x 2W Internal Speaker |
| Display | 15” TFT, 1024 x 768 |
| Touch | True-Flat PCAP |
| Brightness | 400 nits |
| MTBF | 50K Hours |
| Camera | 2MP Front Camera (Optional) |
| Power | 20V / 90W or 20V / 130W External Adapter |
| OS | Windows 10 Pro Windows 10 IoT Enterprise |
| Mounting | VESA 100 x 100 mm |
| Certification | FCC / CE Class B |
| Appearance | Aluminum Die-Casting + Plastic Galaxy Grey |
| Temperature | Operation: 0°C ~ 40°C (32°F ~ 104°F) Storage: -20°C ~ 60°C (-4°F ~ 130°F) |
| Dimensions (W x H x D) | Product: 342.5 x 510 x 208 mm |
| Weight | Net: 11.4 Kg Gross: 13.5 Kg |
| Port | 1 x USB 3.0 Type A 1 x USB 2.0 Type A (Reserved for Add-On) 1 x USB DP (Reserved for 2nd Display) 1 x Smart DP (Reserved for Customer Display or 2nd Display) |
| Optional | 2nd I/O Type C: 1 x PUSB 12V, 2 x RJ45 (COM6, COM7) RS232 2nd I/O Type G: 3 x PUSB 12V |
| I/O on Base I/O on Base | 3 x RJ45 (COM3, COM4, COM5) RS232 4 x USB 2.0 Type A 1 x USB DP (2nd Display) 1 x RJ11 (12V / 24V) 1 x RJ45 LAN 1 x 20V DC-in 1 x 24V Powered USB 1 x Audio Line Out (Optional) 1 x 12V DC-out (Optional) |
