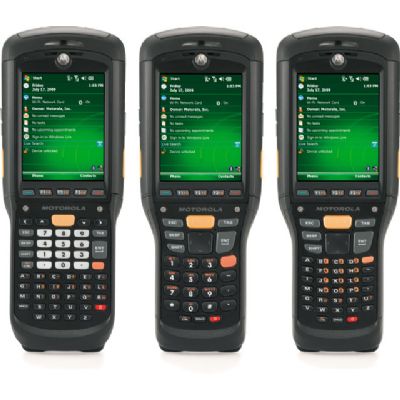

Symbol MC9500-K

Symbol MC9500-K Details

2-D Imager Engine

Illumination element (LED)
625 +/- 5 nm LEDs (2x)

Aiming element (VLD)
655 +/- 10 nm Laser

Field of View
Horizontal: 40°; Vertical: 25°

Ranges
From center of exit window: SR €“ 7.5 in./19 cm

Pitch angle
+/-60°

Roll
360°

Skew tolerance
+/-60°

Sensor resolution
752 x 480 pixels

Communications

GPS
Integrated standalone or Assisted-GPS (A-GPS); SiRFstarIII GSC3f/LP chipset

WWAN
MC9500: Modular 3.5G WAN (GSM HSDPA or CDMA-EVDO Rev A); MC959B: Modular 3.5G Dual-WAN (GSM HSUPA and CDMA EVDO Rev A)

WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR, IrDA

WLAN
Tri-mode IEEE 802.11a/b/g ;CCXv4 certified; Support for IPv6; FIPS140-2 Certified

Security
WPA2 (Personal or Enterprise); 802.1x; EAP-TLS;
TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP,
EAP-FAST (TLS, MS-CHAPv2, EAP-GTC); CCXv4 certified; support for IPv6; FIPS 140-2 Certified

Linear 1-D Scanner

Scan angle
47° +/- 3° default; 35° +/- 3° reduced

Scan rate
104 (+/- 12) scans/sec (bi-directional)

Optical resolution
4 Mil minimum element width

Notices and Disclaimers

See footnote.¹

Performance Characteristics

Processor (CPU)
Marvell PXA320 @ 806 MHz

Operating system (OS)
MC9500: Microsoft Windows Mobile 6.5 Professional, Microsoft Windows Mobile 6.5 Classic Edition; MC959B: Microsoft Windows Mobile 6.1

Memory (Flash/RAM)
256MB RAM/1GB Flash

Data capture options
1-D laser scanner or 2-D imager and 3 megapixel auto focus color camera

Physical Characteristics

Dimensions (HxWxD)
9.2 in. H x 3.5 in. W x 2 in. D/23.36 cm H x 8.89 cm W x 5.08 cm D

Weight
22 oz./623 g (with battery, stylus, keypad and strap)

Display type
3.7 in. color (TFT) with digitizer and backlight

Display resolution
VGA (640 x 480)

Audio options
Bluetooth, VOWWAN, VOWLAN, TEAM Express compliant, Rugged audio connector, Handset and headset modes, Speakerphone

Keypad options
Modular: Alpha Primary; Numeric Telephony, Numeric Calculator, Alpha Numeric

Notification
Vibrator, Audio notifications, Programmable LEDs

Expansion slot
microSD - supports up to 16GB

Zebra Interactive Sensor Technology (ISTT)
3-axis accelerometer that enables motion-sensing applications on dynamic screen orientation, power management and free-fall detects

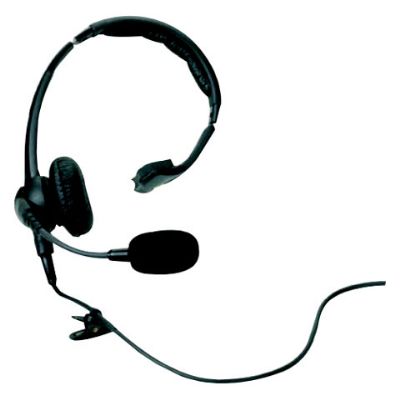

Headset
Bluetooth headset, Wired headset

Power

Battery
PowerPrecision Lithium Ion battery 4800 mAh with State of Charge and State of Health indicators

Regulatory Specifications

Hazardous location certifications
UL Class I, II, III Division II, A, B, C, D, F, G (Select Configurations Only)

Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Environmental
RoHS-compliant

Laser safety²
EN 60825-1, IEC Class 2/FDA Class II, IEC 60825-1 Class 2
EMI/RFI
USA: FCC Part 15, Class B; Canada: ICES-003 Class B; EU: EN55022 Class B, EN 55024, EN 301 489-1, EN 301 489-7, EN 301 489-17, EN 301 489-19, EN 301 489-24, EN 60601-1-2, EN 50121-3-2, EN 50121-4

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65 Supplement C;Canada: RSS-102; EU: EN 50360; Japan: ARIB STD T56; Australia: Radiocommunications Standard 2003

User Environment

Ambient lighting tolerance³
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

SAP certification⁴
See footnote.

Drop specification
Multiple 6 ft./1.8 m drops to concrete across the operating temperature range;Meets and exceeds MIL-STD 810G

Operating temperature
-4° to 122° F/-20° to 50° C

Storage temperature
Ambient to -40°F/-40°C; Ambient to 158F° /70°C

Humidity
5-95% non-condensing

Environmental sealing
IP67; meets or exceeds applicable IEC sealing specifications

Tumble specifications
2000 3.2 ft./1 m tumbles (4,000 hits) at room temperature; meets and exceeds applicable IEC tumble specifications

Electrostatic discharge (ESD)
+/-15kv Air discharge; +/-8kv direct discharge; +/- 8kv indirect discharge
