Motorola WT41N0 VOW

Motorola WT41N0 VOW Details

Rugged, voice-dedicated, task-specific tool
Easy-to-use, rugged tool for voice-directed applications.

Ergonomic, hands-free design
Award-winning ergonomic design increases user comfort and productivity.

High-performance next-generation platform
Best-in-class dual core processor provides the power to run virtually any enterprise application.

802.11a/b/g/n WLAN
Easily connects to existing WLAN for fast integration; 802.11n and support for advanced WLAN features greatly improve WLAN bandwidth, performance and reliability for improved voice performance.

Wide temperature range

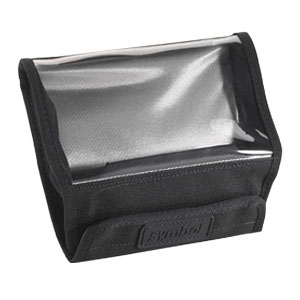

Designed to operate across a wide temperature range ensures operation in virtually all environments of the warehouse, including -4°F/-20°C (-22°F/-30°C with freezer pouch).

Voice-recognition, text-to-speech engines and robust Voice-over-WLAN (VoWLAN) support
Easy to develop and deploy feature-rich voice-directed applications.

Compatible with Zebra€s rugged wearable scanners
Easily expand functionality with robust barcode scanning for superior future proofing and investment protection.

Compatible with Zebra€s RCH51 lightweight, rugged headset
Provides an end-to-end cost-effective and complete voice-directed platform.

Application Development

Microsoft IDEs and SDKs

Communications

Network connections
High-speed USB

WLAN
IEEE 802.11 a/b/g/n

Output power
100 mW international, 100 mW US

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps, 802.11n: up to 72.2 Mbps

Antenna
Internal with diversity

Frequency range¹
802.11a €“ 5.0 GHz, 802.11b: 2.4-2.5 GHz, 802.11g: 2.4-2.5 GHz, 802.11n: 2.5 and 5.0 Ghz

WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR

Notices and Disclaimers

See footnotes²

Performance Characteristics

Operating system (OS)
Microsoft Windows Embedded Compact CE 7.0

Processor (CPU)
Dual Core OMAP4 @ 1GHz

Data capture options
Wearable scanner RS309, RS409, RS419 and RS507 are optional accessories

Memory
512MB RAM/2GB Flash

Voice recognition
Can run voice recognition engines and text-to-speech engines for voice picking applications

Physical Characteristics
Dimensions (HxWxD)
5.7 L x. 3.7 W x 1.0 H in. (142 L x 93 W x 26 H mm)

Weight
Terminal ships w/ Extended Battery: 12.2 oz. (7.5 oz. + 4.6 oz.) / 346.0 g (214.3 g + 131.7 g)

Keyboard
3 software-programmable keys

Audio options
Microphone, AC97 Compatible Codec to play audio (over speaker or headset), Simultaneous audio

Power

Battery
Extended Rechargeable Li-Ion battery 4, 600 mAh @ 3.7 VDC

Regulatory Specifications

EMC
EN 301 489-1, EN 301 489-17, ICES 003 Class B, EN 61000-3-2, EN 61000-3-3, CISPR 22 Class B, CISPR 24, FCC Part 15 Subpart B

RF exposure
FCC Parts 15.247, 15.407, 15.205, 15.207, 15.209, 15.203, EN 300 328, EN301 893, RSS-100, RSS-210, ARIB STD-66 & 33, ARIB STD-T70 & 71, AS/NZS 4268

Electrical safety
CSA C22.2 No. 60950-1, Certified to UL60950-1, EN60950/IEC 60950-1 plus all national deviations

User Environment

Operating temperature
-4° to 122° F (-20° to 50° C)

Storage temperature
40° to 158° F (-40° to 70° C)

Humidity
5% to 95% non condensing

Drop specification
Multiple drops to concrete: 4 ft. (1.2 m) across the operating temperature range

Tumble specifications
500 one-half meter tumbles at room temperature (1, 000 drops)

Electrostatic discharge (ESD)
EN61000-4-2 15kV Air, 8kV contact, 8kV indirect

Environmental sealing
IP54 category 2
