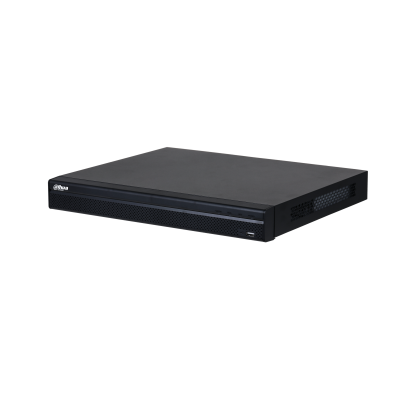

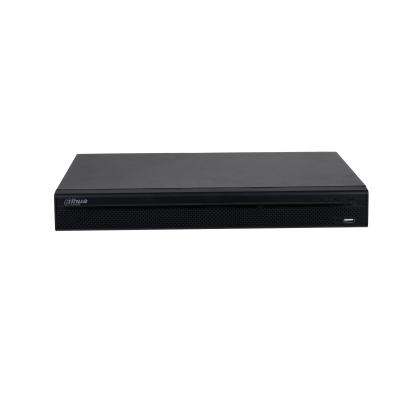

Dahua NVR4208-8P-4KS2/L
POSMarket SKU: Z18319
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
New 16 Channel Compact 1U 4PoE 4K&H.265 Lite Network Video Recorder (Built in reset button)
Product Overview
Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF Profile S, T, G protocol, enabling interoperability with IP cameras.
Features and functions
Perimeter
Protection by Camera Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.
Face Detection by Camera
The Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.
SMD Plus by Camera
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
People Counting by Camera
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements.
Smart Codec
With advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access back-end devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at any time from virtually anywhere.
Product Specifications
| System | |
| Main Processor | Industrial-grade embedded processor |
| OS | Embedded Linux |
| Operation Interface | Web/operating in local GUI |
| Perimeter Protection by Camera | |
| Performance | 8 channels |
| AI Search | Search for pictures by channel, time and event type |
| Face Detection by Camera | |
| Performance | 4 channels |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| AI Search | Search for pictures by channel, time and face attributes |
| SMD Plus by Camera | |
| Performance | |
| NVR4208-8P-4KS2/L 8 channels | |
| NVR4216-16P-4KS2/L 12 channels | |
| AI Search | Search by target classification (human, vehicle) |
| Video | |
| Access Channel NVR4208-8P-4KS2/L — 8 NVR4216-16P-4KS2/L — 16 | |
| Network Bandwidth | Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 × 1080p@30 fps |
| Video Output | 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Multi-screen Display | |
| NVR4208-8P-4KS2/L —1 , 4, 8, 9 views | |
| NVR4216-16P-4KS2/L — 1 , 4, 8, 9, 16 views | |
| Third-party Camera Access | ONVIF; RTSP |
| Compression | |
| Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
| Audio | PCM/G711A/G711U/G726/AAC |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF(profile T/S/G); CGI; SDK |
| Browser | Chrome; IE9 or later; firefox |
| Record Playback | |
| Multi-channel Playback NVR4208-8P-4KS2/L — Up to 8 channels for playback NVR4216-16P-4KS2/L — Up to 16 channels for playback | |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; network |
| Backup | USB storage device |
| Playback Function | 1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
| Storage | – |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
| Intelligent Alarm | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
| Alarm Linkage | Recording, snapshot, audio, buzzer, log, preset, and email |
| External Port | |
| Audio Input | 1 × RCA input |
| Audio Output | 1 × RCA output |
| HDD | 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| Alarm Input | 4 |
| Alarm Output | 2 |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| VGA | 1 |
| Network | 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| PoE NVR4208-8P-4KS2/L — 8 NVR4216-16P-4KS2/L — 16 | |
| General Parameter | |
| Power Supply | 100 V - 240 V, 47 Hz - 63 HZ, 3.5 A |
| Power Consumption | < 10 W (HDD not included, idling) Total output power of PoE is 117W, the maximum output power of a single port is 25.5W |
| Net Weight NVR4208-8P-4KS2/L — 2.51 kg (5.53 lb) NVR4216-16P-4KS2/L — 2.63 kg (5.80 lb) | |
| Product Dimensions | 375 mm × 327.4 mm × 53.8 mm (14.76" × 12.89" × 2.12") (W × L × H) |
| Operating Conditions | –10 °C to +55 °C (+10 °F to +131 °F) |
| Storage Conditions | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 10â„…~93â„… |
| Storage Humidity | 30%~85% |
| Operating Altitude | 3000 m (9842.52 ft) |
| Installation | Desktop mounted |
| Certifications | CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B |
