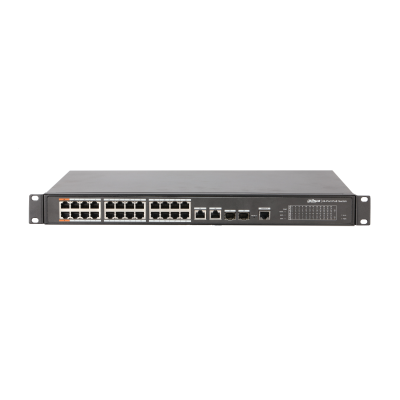

Dahua PFS4226-24ET-240
POSMarket SKU: Z18240
DH-PFS4226-24ET-240: 24-Port PoE Switch
24-Port PoE Switch
Product Overview
In addition, the "Green PoE" allows users to enable/disable PoE for each port during a preset schedule, providing a greener solution to save energy and costs.
This switch is a type of managed switch, it provides 16/24*10/100M PoE Ethernet port and 2 uplink Combo 1000M ports, supports layer 2 network management and PoE management functions based on Web, which helps to realize high speed data forwarding. It can be widely applied in places like security surveillance, network management and so on.
Features
- Layer 2 management PoE switch
- > PoE budget: 240W
- > Support PoE, PoE+, Hi-PoE
- > 'Orange port' support Hi-PoE, can be used with the PoE extender (PFT1300)
- > 250 meters long distance PoE transmission
- > PoE management, PoE Setting/Event Statistics/Green PoE
- > Search and upgrade via ConfigTool
- > Support Web management
- > High lightning protection design
- > Non-blocking video transmission
Product Specifications
| PFS4226-24ET-240 | |
| Part no | DH- PFS4226-24ET-240 |
| Ethernet Port | 2*10/100/1000 Base-T (Combo port) 2*1000 Base-X (Combo port) 24*10/100 Base-T (PoE power supply) |
| PoE Power Consumption | Port1/2 support Hi-PoE (60W), PoE+, PoE |
| Each power | ≤30W |
| Total | ≤240W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 8.8G |
| Packet Forwarding Rate | 6.55Mpps |
| Humidity | 10%~90% |
| Power | AC 100~240V |
| Lightning Protection | Common Mode 4KV |
| Differential Mode | 2KV |
| Working Temperature | ﹣10℃~55℃ |
| Weight | 3.51kg |
| Dimension(W×D×H) | 440mm x300mm x44mm |
| Service Characteristics | |
| System | Username / password: admin/admin IP Address :192.168.1.110/24 |
| PoE Budget | 240W |
| MAC Table | 4K |
| VLAN | 802.1Q Standard VLAN |
| Spanning Tree | STP RSTP |
| Port Aggregation | Static link aggregation LACP protocol |
| Mirroring | Many-to-one port mirroring |
| DHCP | Support DHCP-Client |
| Long Distance Mode | “Power & Data†transmission distance up to 250m |
| Flow Control | Half-duplex based on back pressure type control; Full duplex based on PAUSE frame |
| Security Features | IP+MAC binding based on port; IEEE802.1x port authentication |
| System Maintenance | One-key recovery Support the updated packet upload System log |
| QoS | High and low priority, WRR PFS4226-24ET-240 802.1P, DSCP PFS4226-24ET-240 Support priority according to protocol |
| Network Management | WEB(http and https protocol) Support SNMP V1/V2C/V3 |
| PoE Management | PoE setting (real-time port comsumption) PoE event statistics Green PoE |
