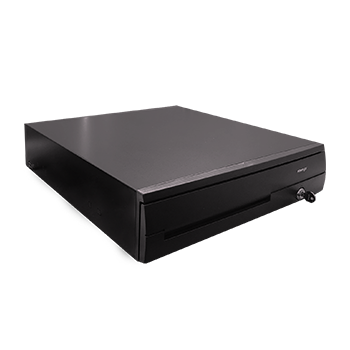

Posiflex CR-4100
POSMarket SKU: Z1783
This model is available in 6 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The Posiflex CR-4100 Series cash drawer is Posiflex's full size heavy duty cash drawer. With a rugged heavy gauge steel construction and no screws/bolts accessible from the outside, it's one of the most secure cash drawers on the market. With multiple connectivity options: Receipt Printer driven (RJ11/12), USB, Serial & Smart interfaces, there is a model to suit any POS system.
Product Overview
The CR-4100 is a modern Posiflex cash drawer. It is wider, deeper and longer than the CR-3100. The CR-4100 comes with 5 coin and 5 bill fixed compartments. There is a coin roll storage compartment behind the bill compartments. The CR-4100 has a "Screwless" tamper resistant design and a special feature cushions drawer slams and protects the system. The chassis and drawer have durable metal construction with high reliability and durability (MTBF over 1 million open/close).
Features
- Rugged design with reinforced heavy gauge steel Construction
- No scews or bolts to be accessed from the outside
- 3 Position Key Lock
- Screw less temper resistance design
- 5 Note/9 Coin, fixed coin section
- Metal Note Clips
- RJ12 Modular solenoid kick out connector
- 10~30V Solenoid operation standard, also available with interface solutions
- Available in Black and Ivory
- 428mm (W) x 460mm (D) x 100mm (H)
- CR-4100: Standard RJ11/RJ12 Receipt printer or POS terminal connection (10-30V Solenoid)
- CR-4101: Smart Interface set to RS232. Includes AC Power supply
- CR-4104: Serial interface, Powered from PC expansion slot (requires wiring into PC/Terminal)
- CR-4105: USB interface. "True USB" interface, does not work as a USB-COM port
If you require a USB-COM port connected drawer, select the CR-4100 and use a USB drawer kick
Product Specifications
| CR-4100 | |
| Function | Heavy duty cash drawer |
| Construction Material | Steel Drawer Plastic Coated Steel front Metal Note clips Screw-less tamper resistance design |
| Construction Design | Rugged design with reinforced heavy gauge steel construction |
| Opening Rails | Nylon Rollers |
| Media slots | 2 Slots |
| Lock | 3 Position Multiple Keyed Locks |
| Till insert | 5 fixed bill compartments with metal bill clip on CR-4100 Series 9 fixed coin compartments |
| Cheque slots | Yes |
| Drawer Feedback | Drawer Open Microswitch |
| Interfaces | (CR4100) Printer or System Driven 10~30V Solenoid with RJ12 Connector |
| Weight | 6 Kg |
| External Dimensions (WxDxH) | 428 x 460 x100 mm |
