Hanwha Wisenet 2MP Explosion Proof Positioning Camera
Product Overview

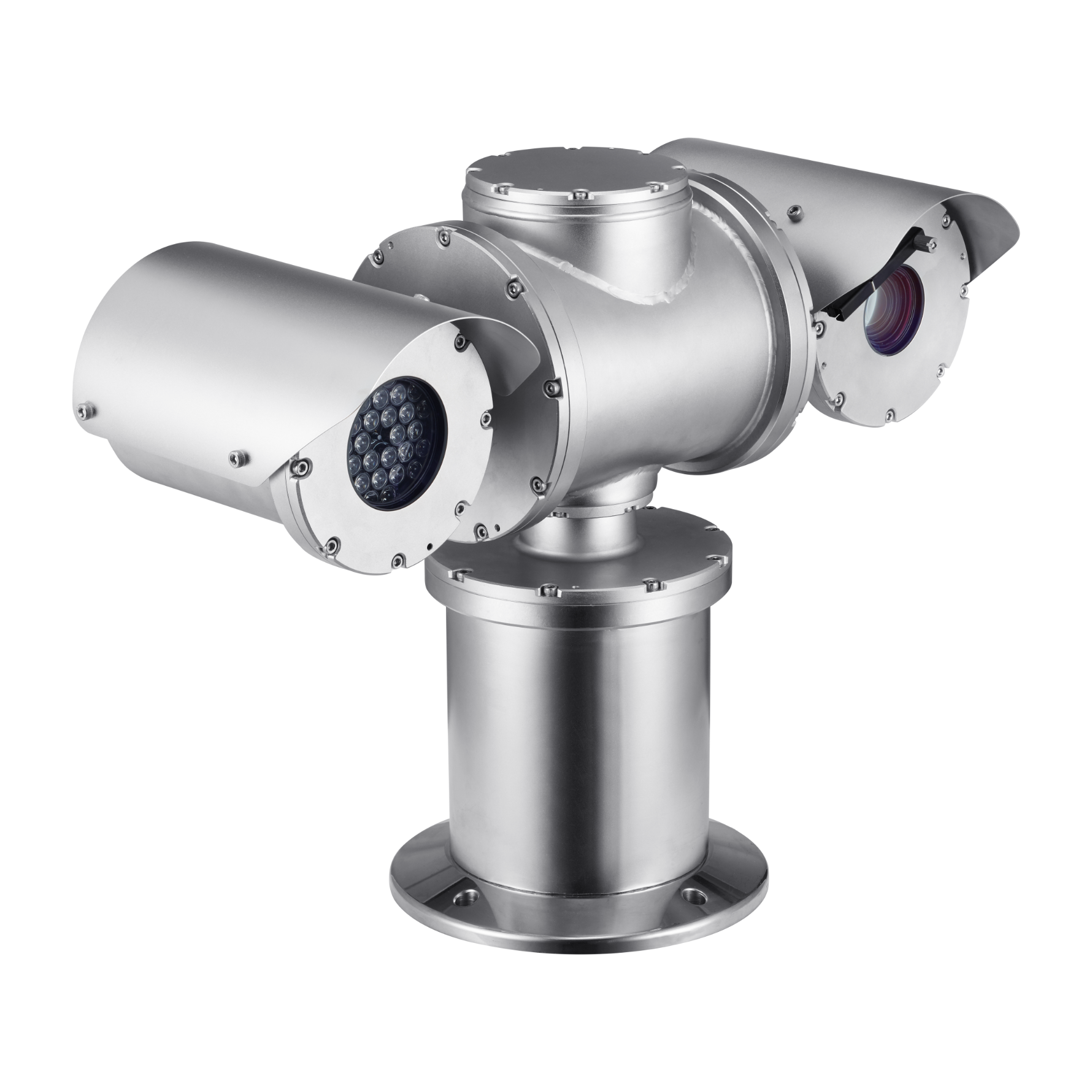

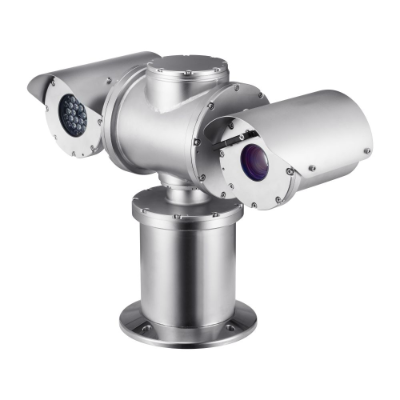

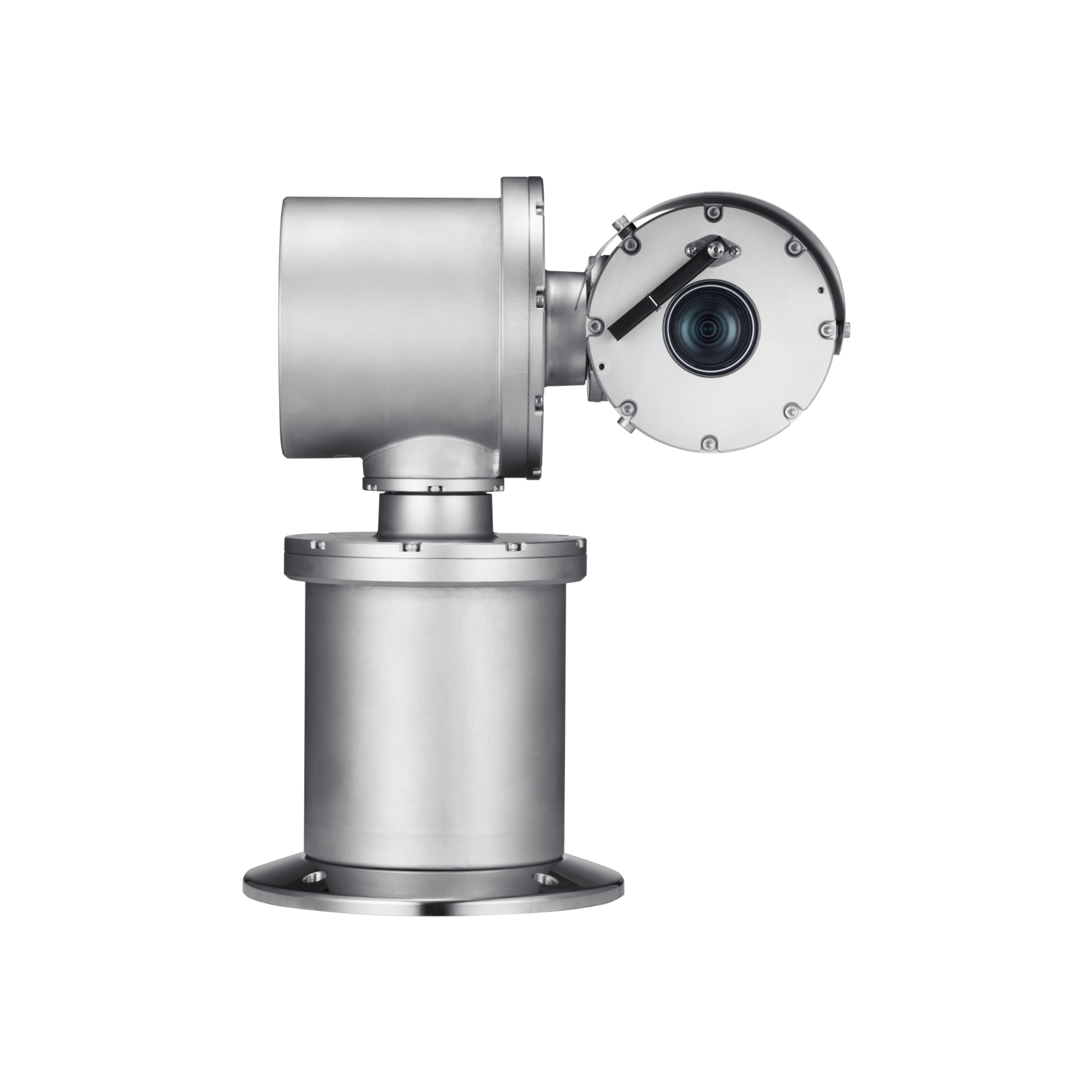

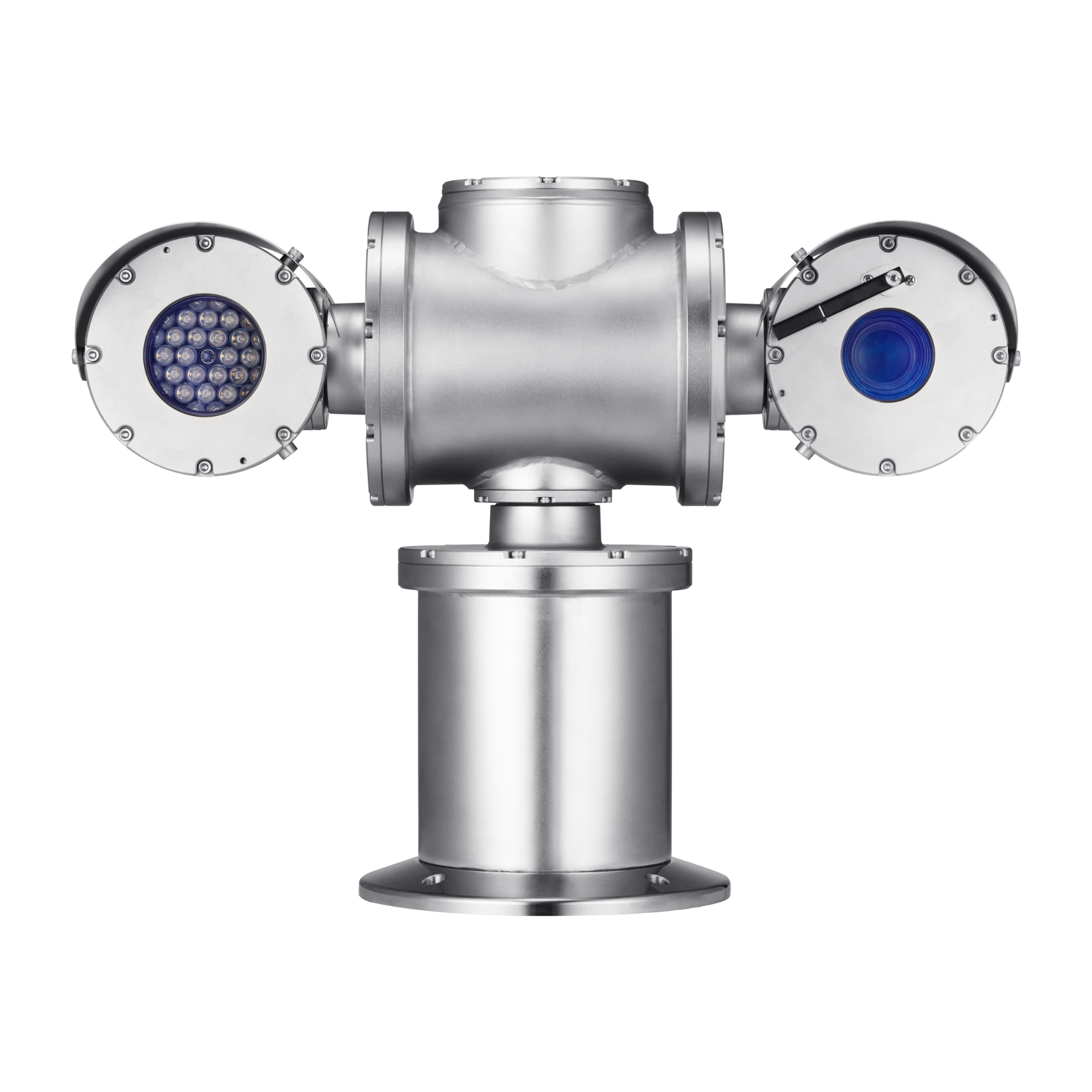

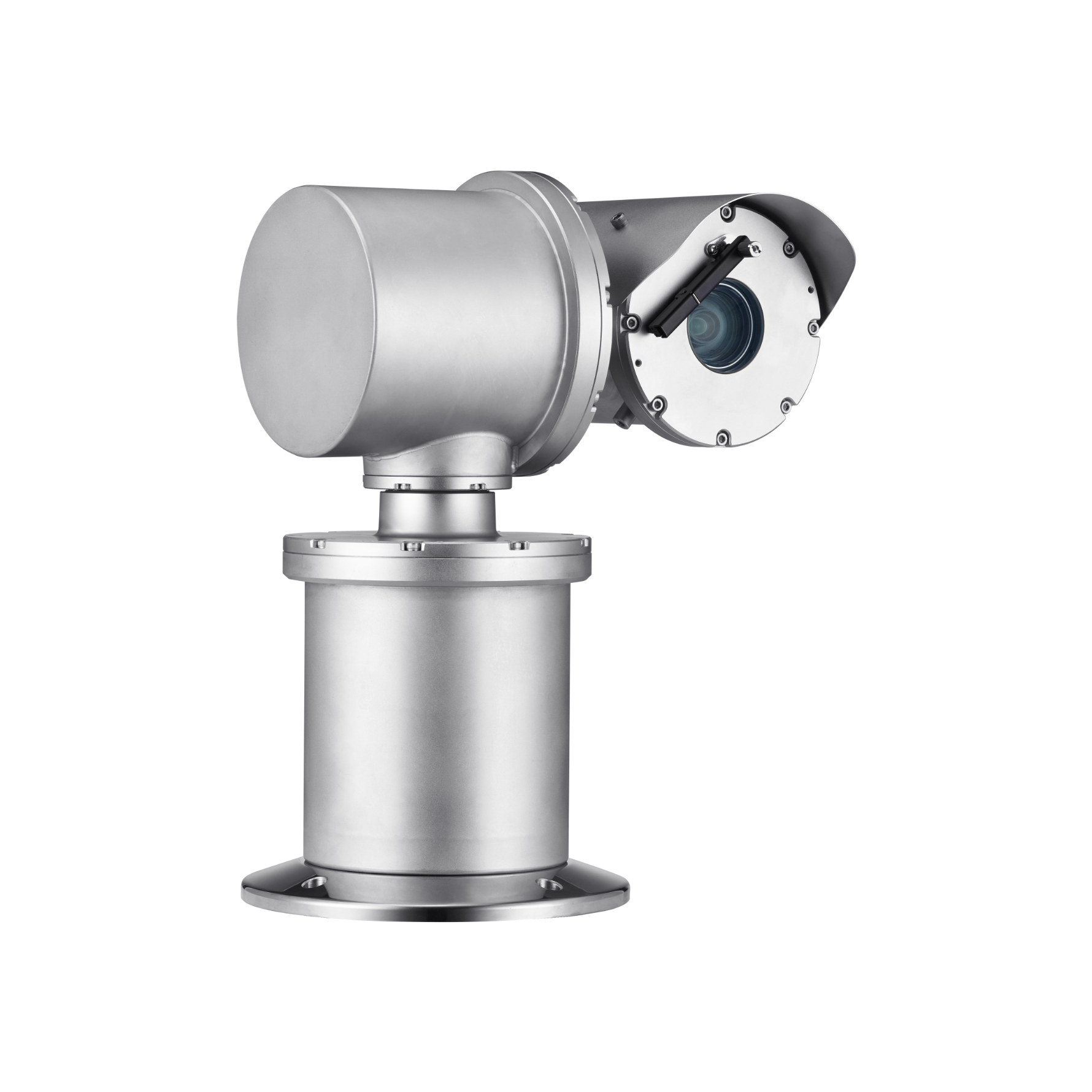

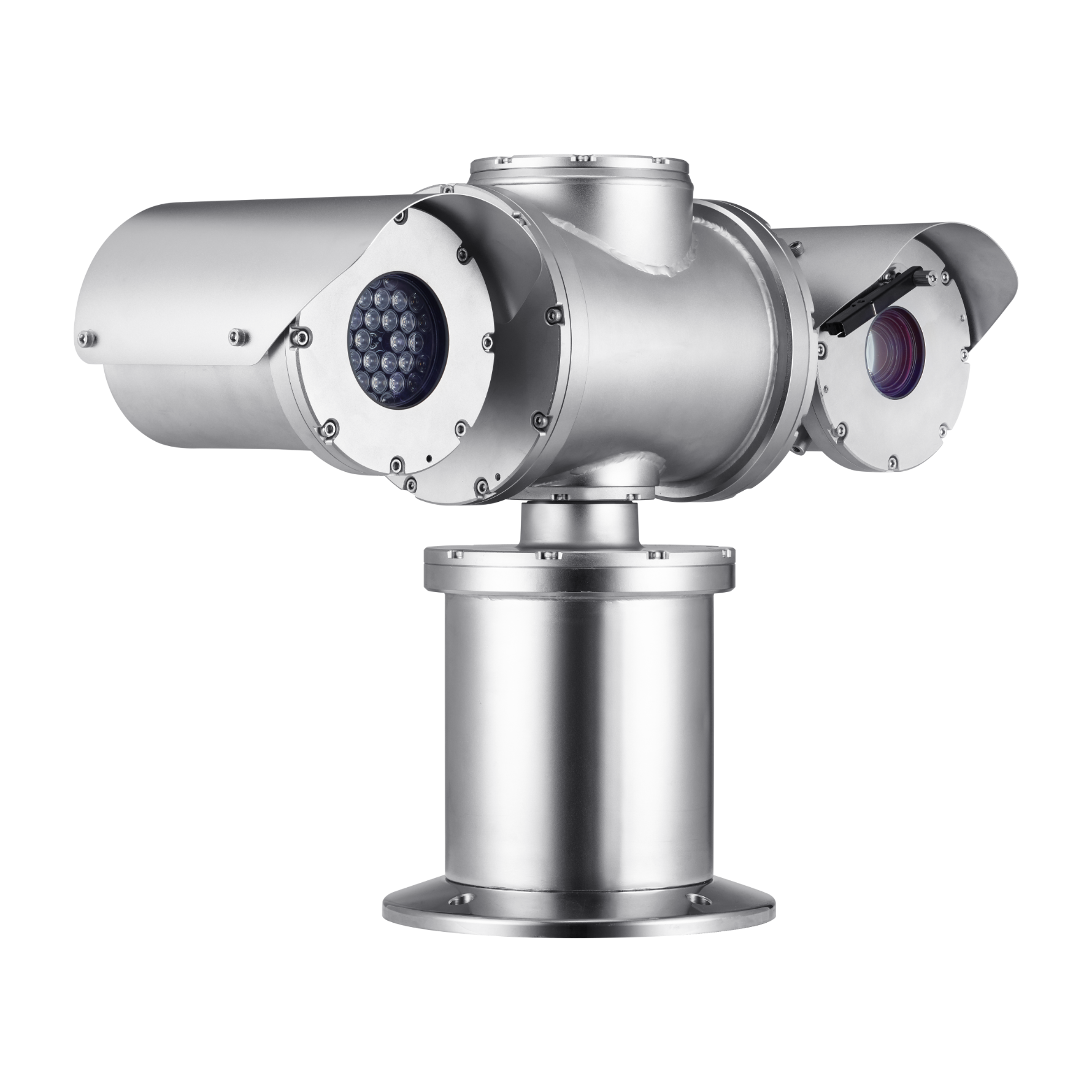

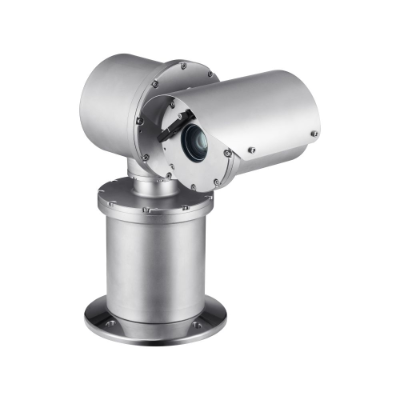

Hanwha's TNU-6322E(R) or also called HAN-TNU-6322E(R) is an explosion proof positioning camera that utilises a 316L stainless steel housing for maximum corrosion and explosion resistance with a vandal rating of IK10, a water/dust ingress rating of IP67 and a built-in wiper.
Certified under globally recognised ATEX and IECEX schemes, Hanwha's explosion proof camera range is considered safe to be operated within hazardous environments, including within areas with combustible sources. Typical applications are for potentially hazardous or explosion risk areas, such as gas/oil processing and storage plants, chemical plants, industrial sites, deep mines, or marine applications.
FEATURES
Certified under globally recognised ATEX and IECEX schemes, Hanwha's explosion proof camera range is considered safe to be operated within hazardous environments, including within areas with combustible sources. Typical applications are for potentially hazardous or explosion risk areas, such as gas/oil processing and storage plants, chemical plants, industrial sites, deep mines, or marine applications.
FEATURES
- Max. 2MP (1920 x 1080) resolution
- H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele) Field of View
- Max. 60fps@2MP (H.265, H.264)
- H.265, H.264, MJPEG codec, WiseStream II
- Day & Night (Auto ICR), WDR (120dB)
- Pan/Tilt : 0.5°/sec ~80°/sec, Endless rotation, Preset (300ea)
- Explosion-proof certificate: IECEx, ATEX, KCs
- Stainless 316L, Built-in wiper
- IP67, IK10
- IR viewable length 200m (*R model)
Product Specifications
| Model | TNU-6322E |
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux (1/30sec, F1.6) B/W: 0.005 Lux (1/30sec, F1.6) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm(32X) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 61.8Ëš(Wide)~2.19Ëš(Tele) / V: 36.2Ëš(Wide)~1.24Ëš(Tele) |
| Min. Object Distance | Wide 1.5m, Tele 2m |
| Focus Control | One shot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360Ëš Endless |
| Pan Speed | 0.5Ëš/sec ~80Ëš/sec |
| Tilt Range | 180Ëš(-90Ëš ~90Ëš ) |
| Tilt Speed | 0.1Ëš/sec ~60Ëš/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.25˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1~1/12,000sec) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Water Removal | Support (with Wiper) |
| Model | TNU-6322ER |
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux (1/30sec, F1.6) B/W: 0.005 Lux (1/30sec, F1.6), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm(32X) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 61.8Ëš(Wide)~2.19Ëš(Tele) / V: 36.2Ëš(Wide)~1.24Ëš(Tele) |
| Min. Object Distance | Wide 1.5m, Tele 2m |
| Focus Control | One shot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360Ëš Endless |
| Pan Speed | 0.5Ëš/sec ~80Ëš/sec |
| Tilt Range | 180Ëš(-90Ëš ~90Ëš ) |
| Tilt Speed | 0.1Ëš/sec ~60Ëš/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.25˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRâ…¤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1~1/12,000sec) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 200m |
| Water Removal | Support (with Wiper) |
