Axis P1264
$605.00 (incl. GST)
POSMarket SKU: Z14961
0925-001: P1264 Pinhole Camera, 720p, H.264, PoE, Zipstream, 8m Cable, 3.7mm Fixed Lens
Axis' cost-effective and extremely discreet pinhole network camera with HDTV 720p performance.
Product Overview

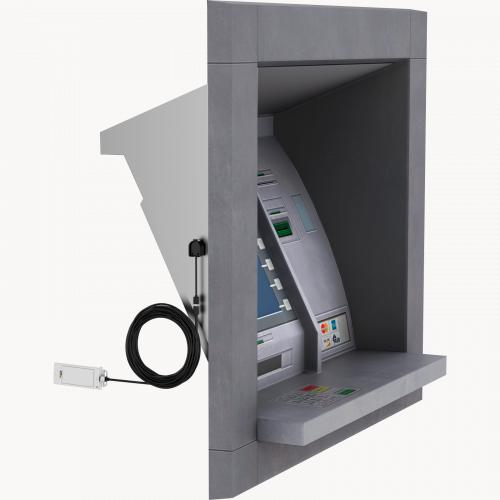

The Axis P1264 Network Camera is a cost-effective and extremely discreet pinhole camera with HDTV 720p performance. Comprising a sensor unit and a main unit, the indoor camera is ideal for use in stores, ATMs, and ticket/vending machines. The pinhole sensor unit can be mounted in tight places, and behind a thin metal/plastic/glass panel with the included mounting bracket. The sensor unit has a 57 degree horizontal field of view. A detachable 8m cable connects the sensor unit to a small main unit. The main unit supports PoE, edge storage and Zipstream technology for lower bandwidth and storage use.

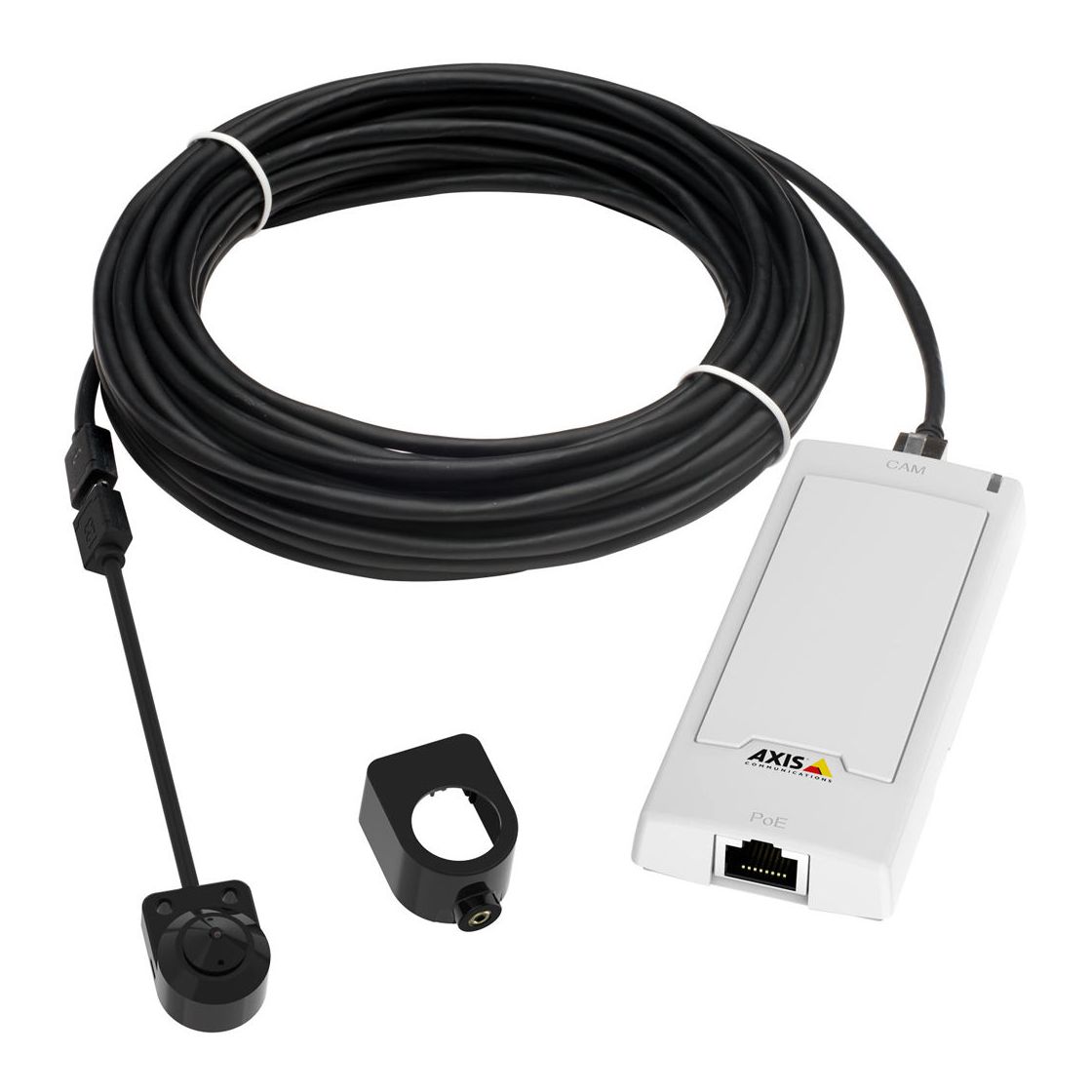

This Network Pinhole Camera from Axis Communications consists of a P12 Mk II main unit and F1004 pinhole sensor unit. Together, the camera can capture 1280 x 720 resolution video at up to 30 fps. Wide Dynamic Range (WDR) and low light sensitivity allow the camera to produce accurate images in varying lighting conditions. The pinhole design lets you install the lens component flush on a flat surface when used with the included F8206 mounting bracket. The included 26' cable allows you to mount the main unit separately, where needed.
The Pinhole sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel that is up to 5.2 mm (3/16 in.) thick when used with the included mounting bracket. The sensor unit provides a 57° horizontal field of view and color video in light as low as 0.5 lux, whilst the compact main unit with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p video and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
FEATURES
This Network Pinhole Camera from Axis Communications consists of a P12 Mk II main unit and F1004 pinhole sensor unit. Together, the camera can capture 1280 x 720 resolution video at up to 30 fps. Wide Dynamic Range (WDR) and low light sensitivity allow the camera to produce accurate images in varying lighting conditions. The pinhole design lets you install the lens component flush on a flat surface when used with the included F8206 mounting bracket. The included 26' cable allows you to mount the main unit separately, where needed.
The Pinhole sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel that is up to 5.2 mm (3/16 in.) thick when used with the included mounting bracket. The sensor unit provides a 57° horizontal field of view and color video in light as low as 0.5 lux, whilst the compact main unit with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p video and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
FEATURES
- Pinhole lens for extremely discreet surveillance
- HDTV 720p and 57 degree horizontal field of view
- Axis Zipstream technology
- Built-in microSD card slot
- Power over Ethernet
Product Specifications
| Camera | |
| Image Sensor | 1/4" progressive scan RGB CMOS sensor |
| Lens | 3.7mm, f/2.5 |
| Field of View | Horizontal: 57° Vertical: 31° |
| Minimum Illumination | 0.5 lux |
| Shutter Speed | 1/24,500 to 1/6 sec |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles, MJPEG |
| Resolution | 1280 x 720 at 25/30 fps (50/60 Hz) |
| Streaming | Multiple, individually configurable streams in H.264 (main, baseline and high profiles) and MJPEG, controllable frame rate and bandwidth, VBR/MBR H.264, Axis' Zipstream technology in H.264 |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure value, exposure control, exposure zones, local contrast, rotation, corridor format, WDR, text and image overlay, privacy mask, mirroring of images |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera Application Platform (ACAP), Axis Video Hosting System (AVHS) with One-Click Connection, ONVIF Profile S |
| Analytics | Axis Video Motion Detection 3, Active tampering alarm, support for Axis Camera Application Platform enabling installation of Axis Cross Line Detection and third-party applications |
| Event Trigger | Analytics, edge storage events |
| Event Action File Upload: Email, FTP, HTTP, HTTPS, network share Notification: Email, HTTP, HTTPS and TCP Pre- and post-alarm video buffering Send SNMP trap, WDR mode Built-In Installation Aids | Pixel counter |
| Data Streaming | Event data |
| General | |
| Casing | P12 Mk II Main Unit: Steel and plastic F1004 Pinhole Sensor Unit: Metal casing (aluminum) |
| Memory | 512 MB RAM, 256 MB flash |
| Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2: Maximum 4 W, Typical: 2.5 W |
| Connectors | Female RJ45 for 10Base-T/100Base-TX PoE RJ12 for sensor unit |
| Storage | Support for microSD/microSDHC/microSDXC card up to 64 GB (available separately) and recording to dedicated network-attached storage (NAS) (available separately) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Operating Humidity | 10 to 85%, non-condensing |
| Storage Temperature | -40 to 149°F (-40 to 65°C) |
| Video Management Software | Axis Companion, Camera Station, and video management software from Axis' application development partners |
| Dimensions | P12 Mk II Main Unit: 0.65 x 1.8 x 4.3" (16.5 x 46 x 109 mm) |
| F1004 Pinhole | Sensor Unit: 1.06 x 0.8 x 0.7" (27 x 20 x 18 mm) Sensor Unit Cable: 26' (8 m) |
| Weight | P12 Mk II Main Unit: 2.5 oz (72 g) F1004 Sensor Unit: 0.5 oz (14 g) Cable: 4.5 oz (128 g) |
