Axis P1254
$605.00 (incl. GST)
POSMarket SKU: Z14960
0924-001: P1254 Mini Bullet Camera, 720p, H.264, PoE, Zipstream, 8m Cable, 2.1mm Fixed Lens
Axis' cost-effective mini bullet -style network camera for easy and discreet installation in stores, hotels and offices.
Product Overview

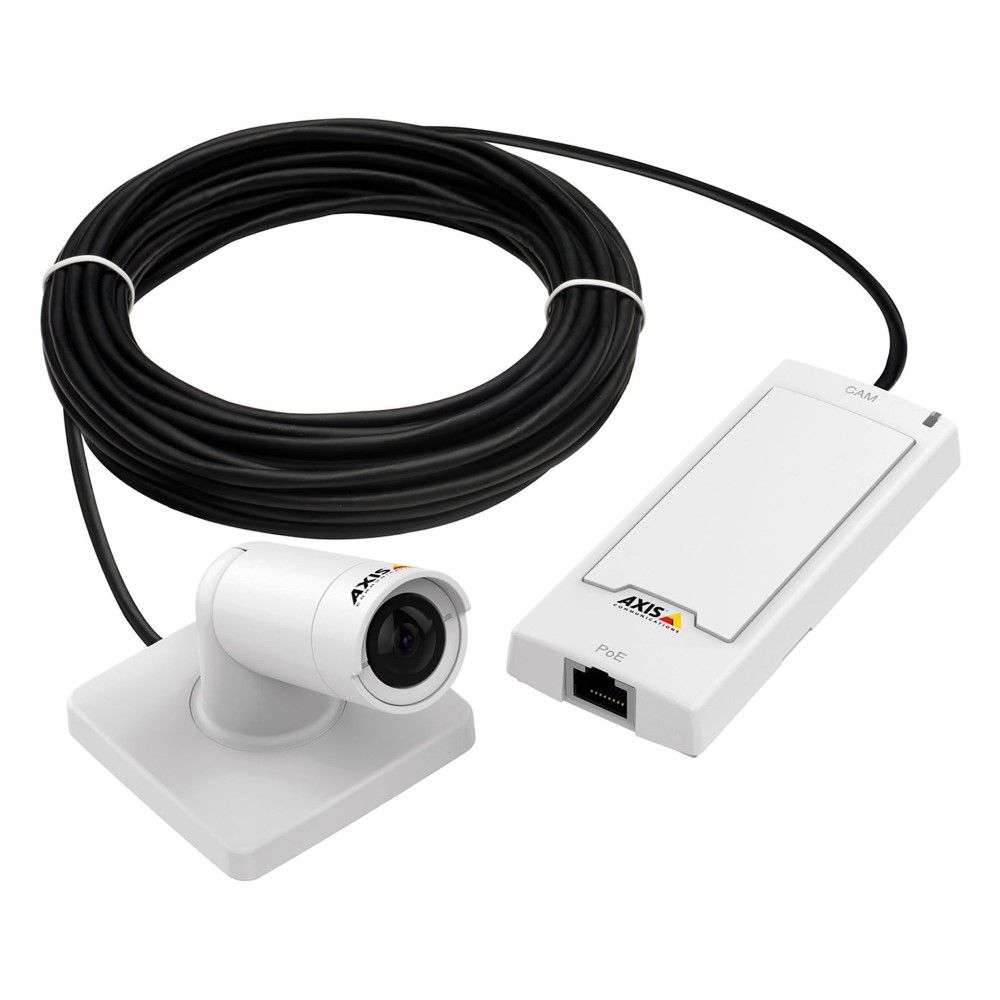

The Axis P1254 Network Camera offers a cost-effective mini bullet-style camera for easy and discreet installation in stores, hotels and offices. Comprising a sensor unit and a main unit, the indoor AXIS P1254 provides a 102 degree horizontal field of view and HDTV 720p video. The sensor unit can be mounted on walls or ceilings, and can rotate and tilt to the desired viewing direction. An 8m detachable cable connects the sensor unit to a small main unit, which can be placed out of sight. The main unit supports PoE, edge storage and Zipstream technology for lower bandwidth and storage use.
This Network Mini Bullet Camera consists of the P12 Mk II main unit and the F1004 bullet sensor unit. Together, the camera can capture 1280 x 720 resolution video at up to 30 fps. The mini bullet sensor unit is wall and ceiling mountable for a discreet setup. The 3-axis angle adjustment allows you to position the wide-angle lens to monitor the area needed. Wide Dynamic Range (WDR) and low light sensitivity allow the camera to produce accurate images in varying lighting conditions. The included 26' cable allows you to mount the main unit separately, where needed.
The Bullet sensor unit is with a base plate smaller than the palm of a hand, the bullet-style sensor unit is both small and sleek. It provides a 102° horizontal field of view and color video in light as low as 0.4 lux. And the compact main unit is with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p videos and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
FEATURES
This Network Mini Bullet Camera consists of the P12 Mk II main unit and the F1004 bullet sensor unit. Together, the camera can capture 1280 x 720 resolution video at up to 30 fps. The mini bullet sensor unit is wall and ceiling mountable for a discreet setup. The 3-axis angle adjustment allows you to position the wide-angle lens to monitor the area needed. Wide Dynamic Range (WDR) and low light sensitivity allow the camera to produce accurate images in varying lighting conditions. The included 26' cable allows you to mount the main unit separately, where needed.
The Bullet sensor unit is with a base plate smaller than the palm of a hand, the bullet-style sensor unit is both small and sleek. It provides a 102° horizontal field of view and color video in light as low as 0.4 lux. And the compact main unit is with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p videos and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
FEATURES
- Easy and discreet installation
- Sensor unit rotates and tilts to the desired viewing direction
- 102 degree horizontal field of view
- HDTV 720p resolution
- Axis Zipstream technology
Product Specifications
| Camera | |
| Image Sensor | 1/4" progressive scan RGB CMOS sensor |
| Lens | 2.1mm, f/2.2 |
| Field of View | Horizontal: 102° Vertical: 56° |
| Minimum Illumination | 0.4 lux |
| Shutter Speed | 1/24,500 to 1/6 sec |
| Camera Angle Adjustment | Pan: -180 to 180° Tilt: 0 to 90° Rotation: -90 to 90° |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles, MJPEG |
| Resolution | 1280 x 720 to 480 x 270 at 25/30 fps (50/60 Hz) |
| Streaming | Multiple, individually configurable streams in H.264 (main, baseline and high profiles) and MJPEG, controllable frame rate and bandwidth, VBR/MBR H.264, Axis' Zipstream technology in H.264 |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure value, exposure control, exposure zones, local contrast, rotation, corridor format, WDR, text and image overlay, privacy mask, mirroring of images |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera Application Platform (ACAP), Axis Video Hosting System (AVHS) with One-Click Connection, ONVIF Profile S |
| Analytics | Axis Video Motion Detection 3, Active tampering alarm, support for Axis Camera Application Platform enabling installation of Axis Cross Line Detection and third-party applications |
| Event Trigger | Analytics, edge storage events |
| Event Action | File upload: Email, FTP, HTTP, HTTPS, network share Notification: Email, HTTP, HTTPS and TCP Pre- and post-alarm video buffering Send SNMP trap, WDR mode |
| Built-In Installation Aids | Pixel counter |
| Data Streaming | Event data |
| General | |
| Casing | P12 Mk II Main Unit: Steel and plastic F1004 Bullet Sensor Unit: Plastic |
| Memory | 512 MB RAM, 256 MB flash |
| Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2: Maximum 4 W, Typical: 2.5 W |
| Connectors | Female RJ45 for 10Base-T/100Base-TX PoE RJ12 for sensor unit |
| Storage | Support for microSD/microSDHC/microSDXC card up to 64 GB (available separately), recording to dedicated network-attached storage (NAS) (available separately) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Operating Humidity | 10 to 85%, non-condensing |
| Storage Temperature | -40 to 149°F) (-40 to 65°C) |
| Video Management Software | Axis Companion, Camera Station, and video management software from Axis' application development partners |
| Dimensions P12 Mk II Main Unit: 0.65 x 1.8 x 4.3" (16.5 x 46 x 109 mm) F1004 Bullet Sensor Unit: 2.4 x 2.4 x 3.5" (60 x 60 x 89 mm) Sensor Unit Cable: 26' (8 m) Weight | P12 Mk II Main Unit: 2.5 oz (72 g) F1004 Bullet Unit: 1.94 oz (55 g) Cable: 4.5 oz (128 g) |
