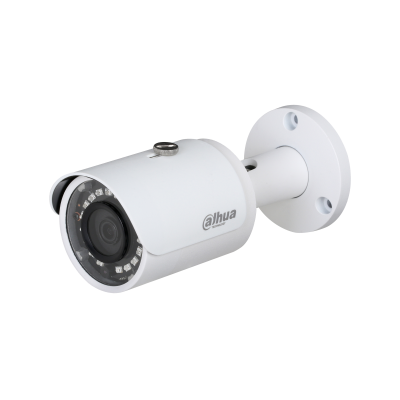

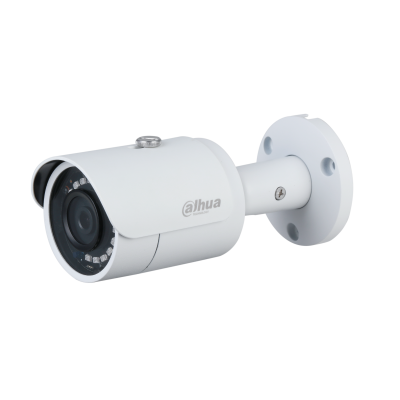

Dahua IPC-HFW1431S

The IR Megapixel Fixed camera delivers 4MP resolution with a 2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Features and functions

• 1/3" 4Megapixel progressive CMOS
• H.265 & H.264 dual-stream encoding
• 20fps@4M(2688 x 1520) &25/30fps@3M(2304x1296)
• WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 2.8 mm fixed lens (3.6 mm optional)
• Max IR LEDs Length 30m
• IP67, PoE

This camera features the Smart Codec technology which is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

The Dahua camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency.

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology.

With its IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object.

The camera allows for +/-25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications.

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140°
F) with 95% humidity.

The image flip feature of this IP camera allows the camera's image to be rotated in 90° increments for better video optimization.

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
