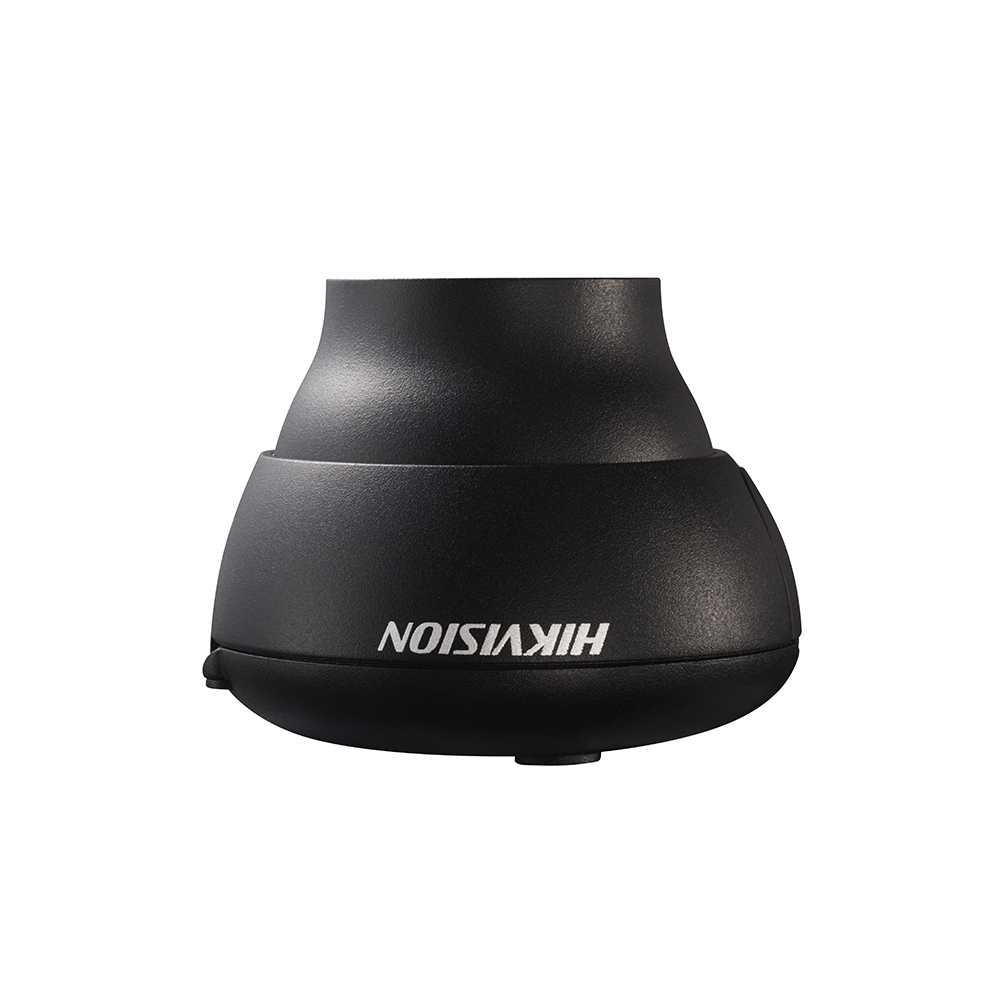

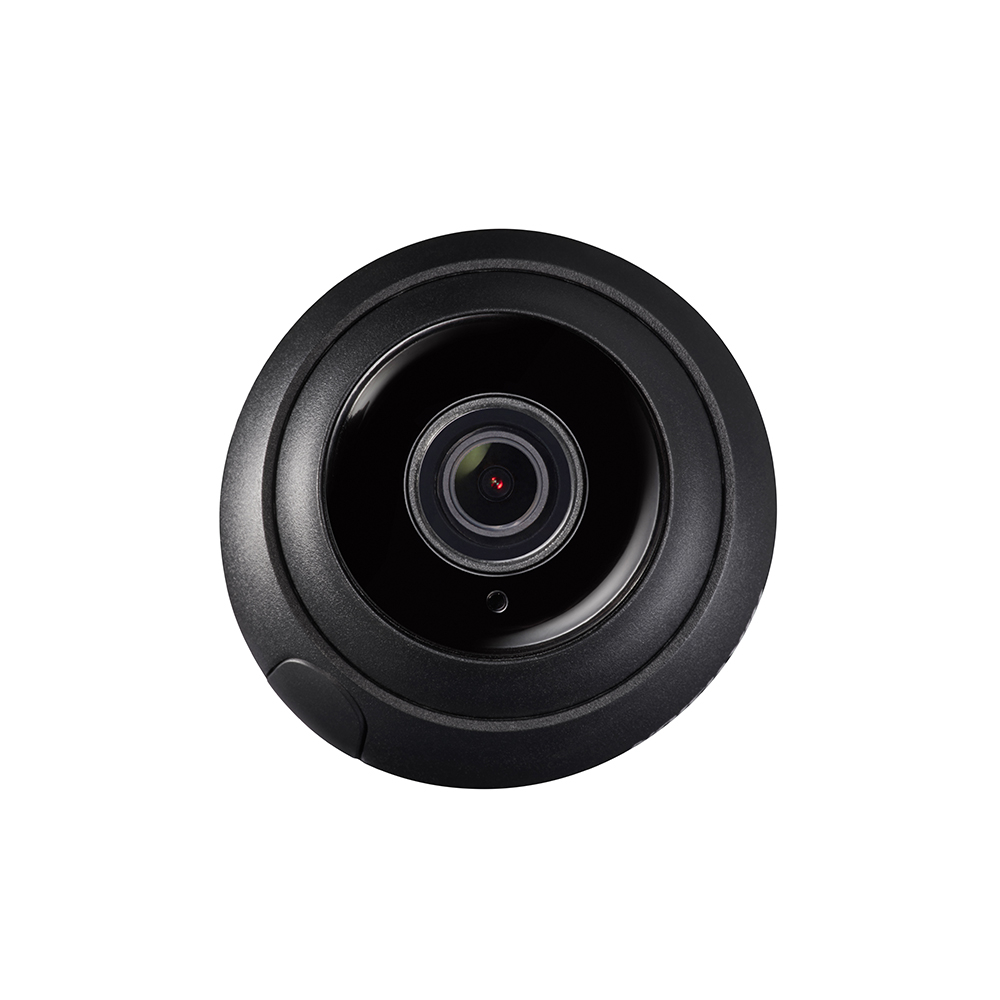

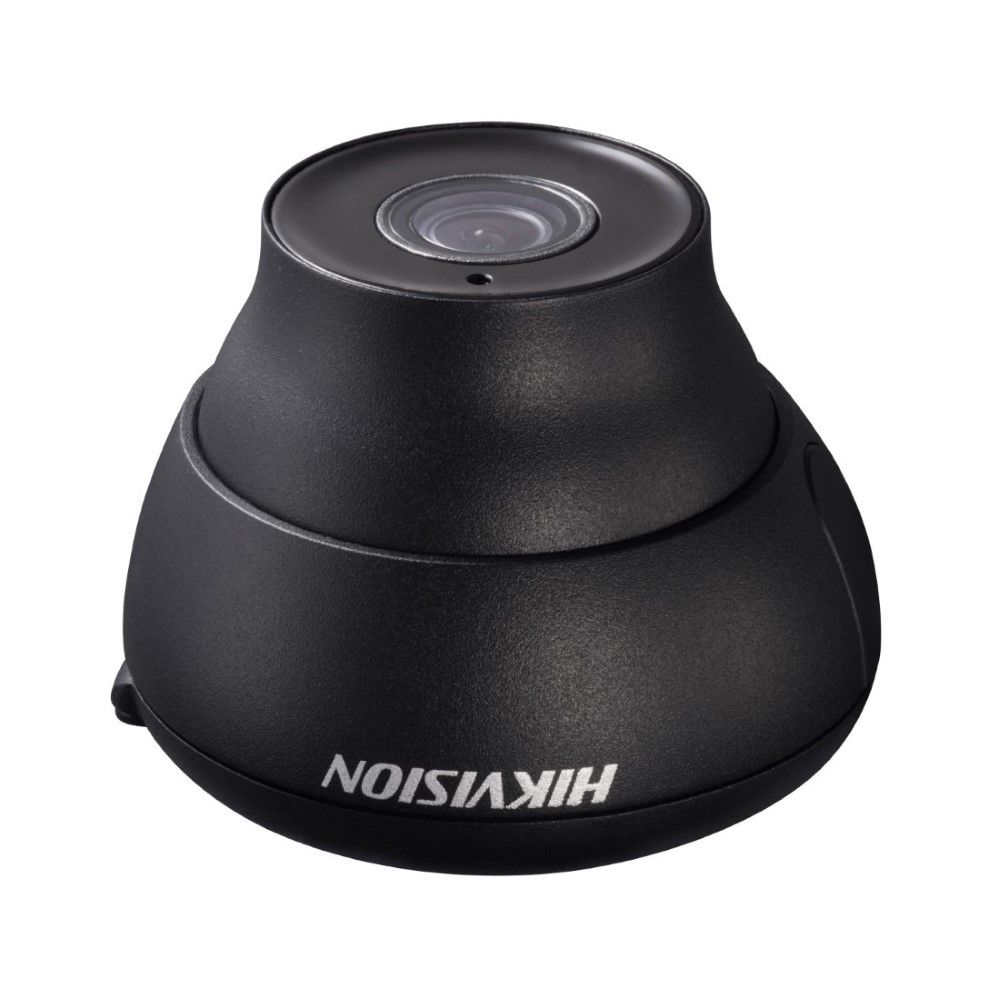

Hikvision DS-2XM6622FWD-I
POSMarket SKU: Z14254
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
2MP Inner Vehicle Mobile Camera
Product Overview
Features
- Up to 2MP high resolution
- Supports Smart IR, up to 3m IR range
- IR cut filter with auto switch
- Supports on-board storage, up to 128GB
- Built-in microphone
- 120dB wide dynamic range
- 2.8mm lens optional
- 3D digital noise reduction
- Backlight compensation
- Auto electronic shutter
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens 4mm, horizontal field of view: | 90°; [2.8mm (109.4°); 6mm (53.9°); 8mm (37.9°); 12mm (24.3°), optional] |
| Lens Mount | M12 |
| Day &Nigh | t IR cut filter with auto switch |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| Angle Adjustment Tilt: | -20° to 20°, Rotation: 0° to 360° |
| COMPRESSION STANDARD | |
| Video Compression | H.264/MJPEG |
| H.264 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711/G.726/MP2L2/G722.1 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.726)/32Kbps to 128Kbps(MP2L2)/32Kbps(G722.1) |
| Dual Streams | Support |
| IMAGE | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | |
| 50Hz: | 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: | 30fps (1920 × 1080, 1280 × 960, 1280 ×720) |
| Sub Stream | |
| 50Hz: | 25fps (352 × 288, 640 × 360) |
| 60Hz: | 30fps (352 × 240, 640 × 360) |
| Image Settings | Saturation, Brightness, Contrast, etc., adjustable by client software or web browser |
| Backlight Compensation | Support, zone optional |
| Region of Interest | Support one customized region for each stream |
| NETWORK | |
| Network Storage | Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS) |
| Alarm Trigger | Intrusion Detection, Line Crossing Detection, Motion Detection, Dynamic Analysis, Video Tampering Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| General Function | Mirror, Dual Streams, Anti-Flicker, Watermark, Password Protection, Privacy Mask |
| INTERFACE | |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB Unit: mm |
| GENERAL | |
| Operating Conditions | -30°C to 60 °C (-22 °F to 140 °F), Humidity10% to 90% (non-condensing) |
| Power Supply | DC12V +/- 10% |
| Power Consumption | Max. 3.5W; Max. 9W with pan and tilt Cable Length 0.8 m |
| IR Range Approx | . 3 meters |
| Dimensions | 81.1 × 78.1 × 64 (3.2” × 3.1” × 2.52”) |
| Weight | 400g (0.88 lbs) |
