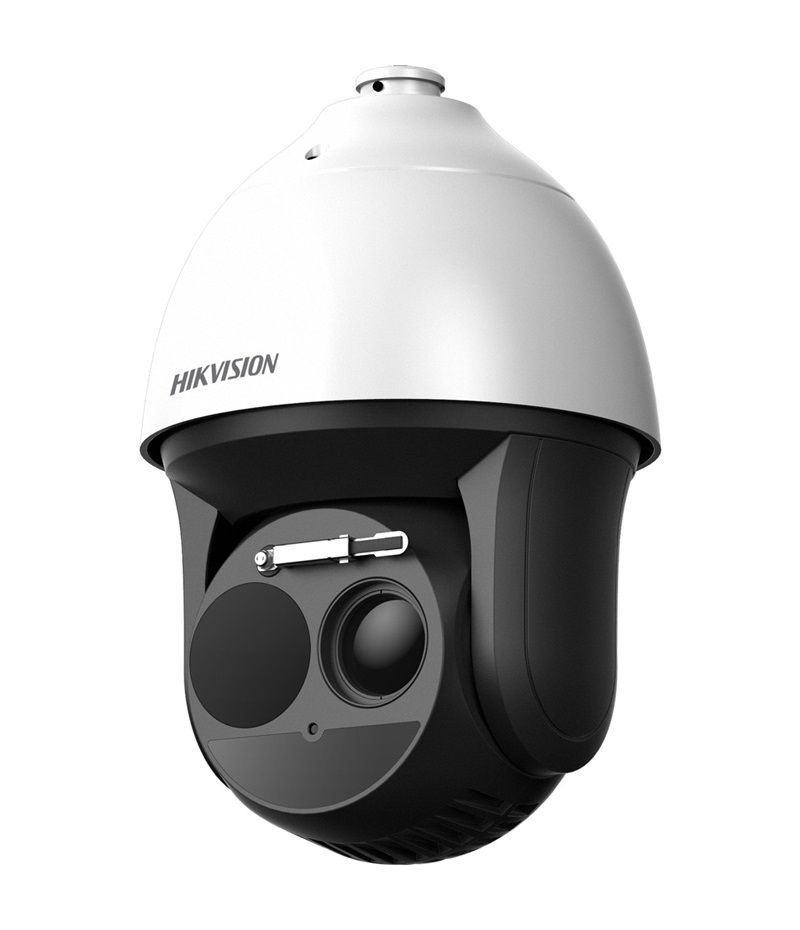

Hikvision DS-2TD4136T-9
$12,226.64 (incl. GST)
POSMarket SKU: Z14257
DS-2TD4136T-9: Hikvision Thermal & Optical Bi-Spec Dome Camera, IR, 384 x 288, 24VAC, 9mm
Thermal & Optical Bi-Spec Dome Camera
Product Overview
The Hikvision's DS-2TD4136T-9 or HIK-2TD4136T-9 is a bi-spectrum thermometric thermal network speed dome. The optical camera module is a 2MP image sensor with 36x optical zoom, and the thermal module supports 384 x 288 resolution. It can detect temperature range from 20 to 550 degrees celsius. The accurate temperature measurement system sends you alarms to protect you from property loss. This camera is suitable for monitoring temperature changes in critical equipment located in factories, electric substations, and hydropower stations.
Features
Features
- High sensitivity thermal module with 384 x 288 resolution
- NETD is less than 40 mk (@25°C, F#=1.0)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
- Reliable temperature-anomaly alarm
- Advanced fire detection algorithm
Product Specifications
| Thermal module | |
| Image sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 384 x 288 |
| Detector Pitch | 17μm |
| Response waveband | 8μm to 14μm |
| NETD < 40mk | (@25° C,F#=1.0) |
| Lens (focal length) | 9mm 25mm 50mm |
| Focus Mode Fixed | Auto / Semi-auto / Manual Auto / Semi-auto / Manual |
| MRAD | 1.89 0.68 0.34 |
| Field of View | 41.3° × 30.6° 14.88° x 11.19° 7.47° x 5.61° |
| Min. Focusing Distance | 1m 1.5 m 7.5 m |
| F number | 1.0 |
| OPTICAL CAMERA | |
| Image Sensor | 1/1.9’’ Progressive Scan CMOS |
| Min. Illumination | |
| Color: | 0.002 lux @ (F1.5 , AGC On ) |
| B/W : | 0.0002 lux @ (F1.5 , AGC On ) |
| Focal Length | 5.7-205.2mm, 36x |
| Digital Zoom | 16 X |
| Field of View | 58.7° - 2.0° (Wide-Tele) |
| Min. Working Distance | 10-1500mm (Wide-Tele) |
| Aperture Range | F1.5-F4.5 |
| Focus Mode | Auto / Semiautomatic / Manual |
| WDR | 120dB |
| Shutter Time | PAL: 1-1/30,000s / NTSC: 1-1/30,000s |
| White Balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Day & Night | IR Cut Filter |
| Privacy Mask | 24 privacy masks programmable; optional multiple colors and mosaics |
| Optical Defog | Yes |
| Enhancement | 3D DNR |
| SMART FUNCTION | |
| VCA | Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene. |
| Temperature Measurement | Support 3 temperature measurement rule types, over 256 presets as scene, 21 rules of each scene (10 points, 10 regions, and 1 line) |
| Temperature range | -20° C to 550° C (-4° F to 1,022° F) |
| Temperature accuracy | Max (+/- 2° C, ± 2%) |
| Fire detection | Support 10 fire points |
| PTZ | |
| Movement Range Pan: | 360° Continuous Rotate; Tilt: From -15° to + 90° (auto flip) |
| Pan Speed | Configurable, From0.1°/s to 160° /s, Preset Speed: 240° /s |
| Tilt Speed | Configurable, From 0.1°/s to 120° /s, Preset Speed: 200° /s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8; Up to 32 Presets Per Patrol |
| Pattern Scan | 4; More Than 10 Minutes Per Pattern |
| Power Off Memory | Yes |
| Park | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PT Statu | s Turn On/Turn Off |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output |
| INFRARED | |
| IR Distance | Up to 200m |
| IR Intensity and Angle | Auto Adjust |
