Hikvision DS-2CD6520D-IO
$489.91 (incl. GST)
POSMarket SKU: Z14183

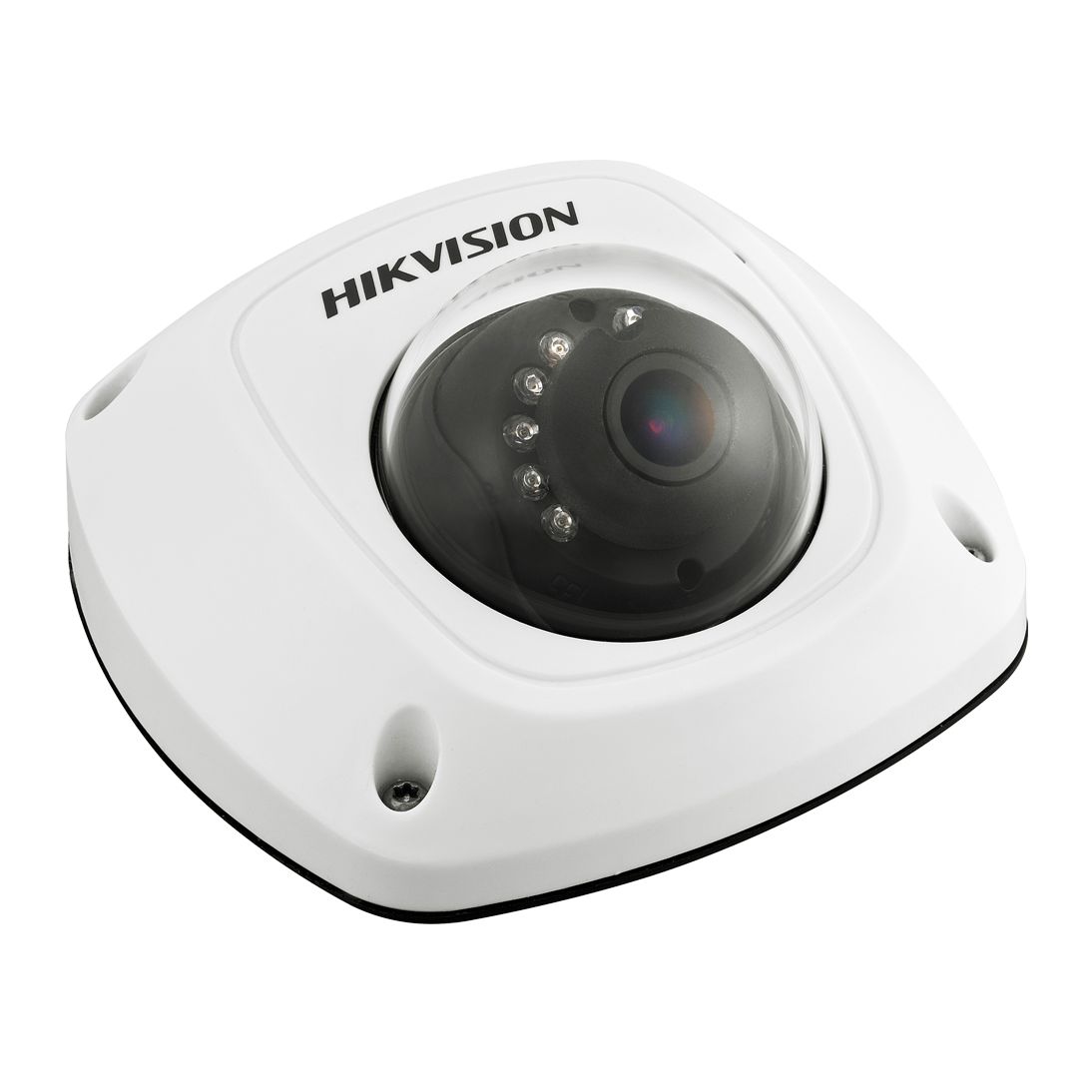

DS-2CD6520D-IO: 2MP Inner Vehicle Mini Dome Camera, DWDR, IR, RJ45 port, 4mm
2MP Inner Vehicle Mini Dome Camera.
Product Overview
Part of Hikvision's mobile camera range, the DS-2CD6520D-I(O) HIK-2CD6520D-IOx is a 2MP inner-vehicle mobile network camera. Suitable for use in a variety of scenarios, this camera is perfect for applications such as trains and buses.
DS-2CD6520D-I(O) is applicable to vehicle scenarios such as the train, the public bus and school bus, as well as those with higher requirements for the vibration, riot and waterproof.
Features
DS-2CD6520D-I(O) is applicable to vehicle scenarios such as the train, the public bus and school bus, as well as those with higher requirements for the vibration, riot and waterproof.
Features
- Up to 1920x1080 @ 30 fps for real-time output
- ROI and SVC are adopted with high compression ratio, flexible disposure and low bitrate
- Code smoothness setting for different requirements of image quality and fluency
- Day/Night parameters independent configuration
- PoE power supply is supportable
- Small and nice with built-in microphone
- 3-axis adjustment for convenient installation
- 3D DNR and DWDR
- Support two streams and cellphone surveillance
- Support analog output
- Rotate mode, BLC, auto electronic shutter are for different environment
- Function: Heartbeat, mirror, instant recovery, etc.
- Smart detection: Intrusion detection, line crossing detection
- Support VCA, which is compatible with
- NVR for the second time of video searching and analyzing
- Support security certificate as HTTPS, SSH; support creating certificate
- Basic and digest authentication is supportable in IE configuration
- Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
- Built-in mic
- Vandal proof: IK08,IP66(Only used inside of vehicle)
- Professional certifications: EN 50155, EN50121
Product Specifications
| CAMERA | |
| Image Sensor | 0.84cm (1/3") Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3s~1/100,000s |
| Lens | 4mm horizontal view angle 63°(2.8mm/6mm/8mm optional) |
| ANGLE OF ADJUSTMENT | |
| H: | -30°~30°, V: 0°~80°, R: 0°~360° |
| Lens Mount | M12 |
| Day & Night | ICR |
| DNR 3D Digital Noise | Reduction |
| DWDR | Digital Wide Dynamic Range |
| COMPRESSION STANDARD | |
| Video | H.264/ MJPEG |
| H.264 Type | Base Line Profile/Main Profile |
| Video Bit Rate | 32Kbps~8Mbps |
| Audio | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/32-128Kbps(MP2L2) |
| IMAGE | |
| Max. Resolution | 1920 x 1080 |
| FRAME RATE | |
| 50Hz: | 25fps (1920x1080,1280 × 960,1280 × 720) |
| 60Hz: | 30fps (1920x1080,1280 × 960,1280 × 720) |
| Image Setting | Rotate mode, Saturation, Brightness, Contrast, etc. are adjusted via client or web-browser |
| BLC | Yes, zone optional |
| ROI | Support |
| NETWORK | |
| Storage | Micro SD/SDHC/SDXC card (up to 128G) ANR, NAS |
| Intelligent Alarm | Intrusion detection, Line crossing detection, Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage error |
| Protocol Supportable | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Interface protocol | ONVIF,PSIA,CGI,ISAPI |
| General | Flickerless, dual stream, heartbeat, mirror, password protection, video masking, watermark |
| NETWORK COMMUNICATION | |
| -IO Model: | 1-ch RJ45 10M / 100M self-adaptive Ethernet port |
| -I Model: | 1-ch M12 10M / 100M self-adaptive Ethernet port |
| Video | 1Vp-p Composite Output(75Ω/BNC) |
| Audio Input | 1 built-in mic |
