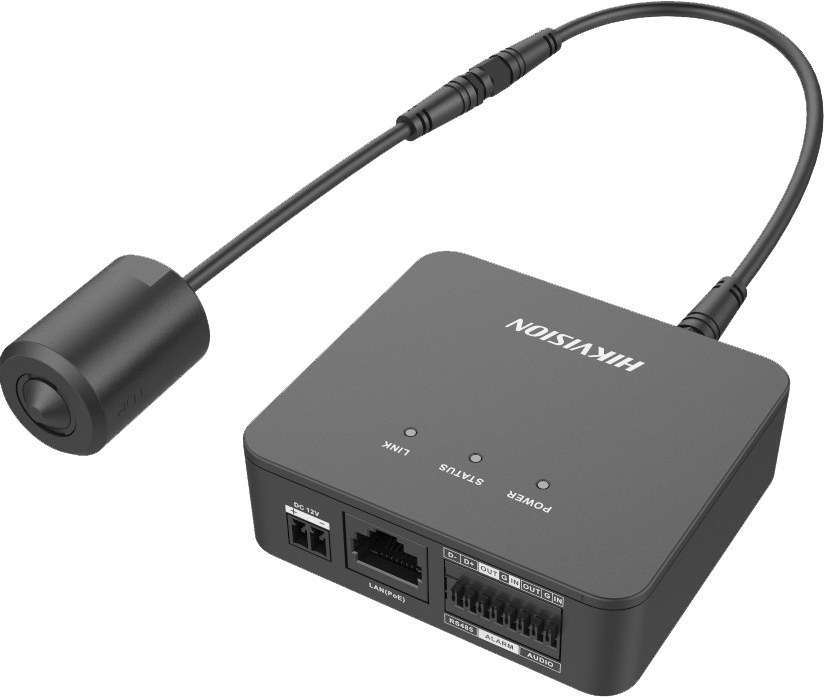

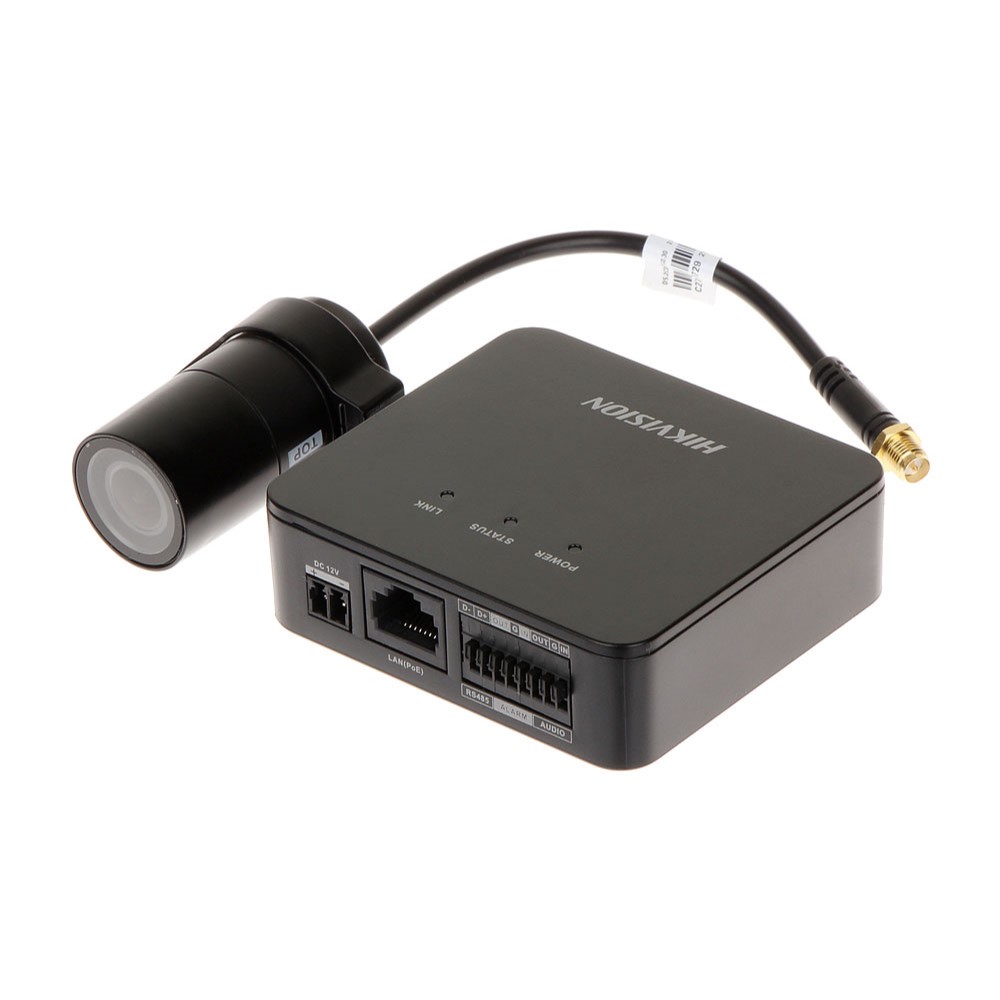

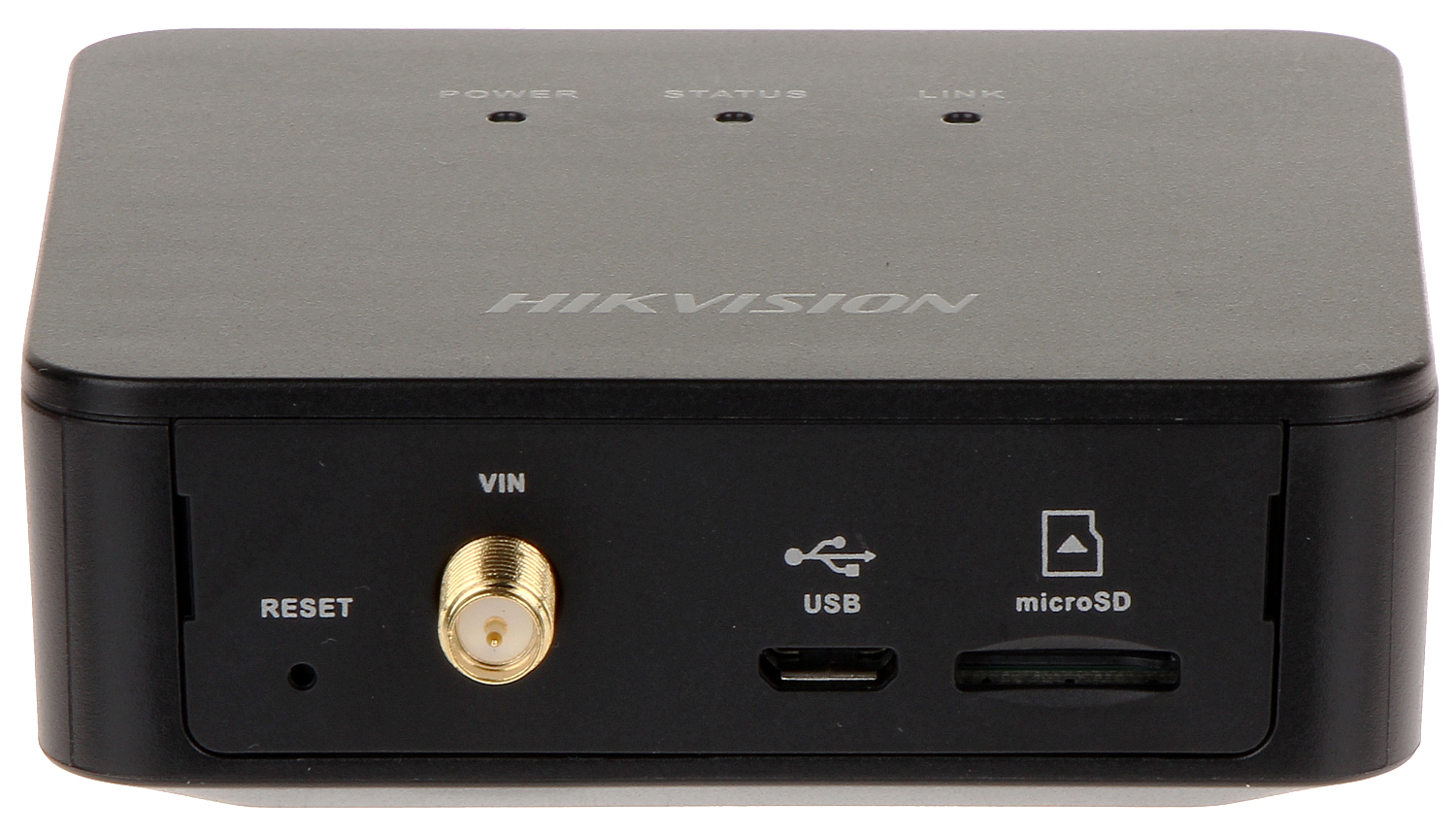

Hikvision DS-2CD6425G0-XX
POSMarket SKU: Z14196
This model is available in 6 different configurations. Select a configuration below or contact our experts on 1300 737 998.
2MP Indoor Covert Pinhole Camera
Product Overview
Features
- Three streams
- 120dB WDR
- 3D DNR
- 4 behaviour analyses
- Audio and alarm I/O
- Smart encoding: low bit rate, low latency
- ROI
Product Specifications
| CAMERA | |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | |
| Color: | 0.005 Lux @(F1.2, AGC ON), 0.014 Lux @(F2.0, AGC ON) |
| B/W: | 0.0001 Lux @(F1.2, AGC ON), 0.0003 Lux @(F2.0, AGC ON) |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day & Night | Electronic |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Angle Adjustment | Not support |
| LENS | |
| Focal length | 2.8 mm/3.7 mm/4.0 mm/6.0 mm |
| Aperture | |
| L10, L20: | F2.5 |
| L30: | F2.0 |
| FOV | |
| Pin hole: | |
| 2.8 mm @ F2.5, | horizontal FOV 88.2° |
| 3.7 mm @ F2.5, | horizontal FOV 71° |
| 2.8 mm @ F2.0, | horizontal FOV 104° |
| 4.0 mm @ F2.0, | horizontal FOV 80° |
| 6.0 mm @ F2.0, | horizontal FOV 50° |
| Lens Mount | M12, pin hole |
| SMART FEATURE SET | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Exception Detection | No |
| Face Detection | Yes |
| Region of Interest | 1 fixed region for main stream and sub stream |
| INTERFACE | |
| Audio | 1 input (line in), 1 output (line out), mono |
| Alarm | 1 input, 1 output (up to 24 VAC, 1A or 110 VAC, 500mA) |
| Communication Interface | ;1 RJ45 10M/100M Ethernet port; 1 VIN port; 1 RS-485 |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| AUDIO | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | Max. 48kHz |
| GENERAL | |
| Operating Conditions | -10°C to 40 °C (14 °F to 104 °F), humidity: 5% to 95% (non-condensing) |
| Power Supply | 12 VDC ± 20%, two-core terminal block,; PoE: (802.3af, class 2) |
| Power Consumption and Current | 12 VDC ± 20%, 0.25 A, max. 3 W PoE: (802.3af, 36V-57V), 0.2A to 0.1A, Max: 3.5W |
| Protection Level | No |
| Material Camera: | Plastic |
| Lens: | Metal |
| Dimension | |
| Camera: | 77.5 x 71 x 33.5 mm (3.1" x 2.8" x 1.3") |
| L10: | 26 x 51.35 mm (1.02" x 2.02") |
| L20: | 37 x 26 x 19.1 mm (1.57" x 1.02" x 0.75") |
| L30: | 26 x 51.35 mm (1.02" x 2.02") |
| Weight Camera: | 87 g (0.19 lbs.) |
| With package: | 220 g (0.49 lbs) |
