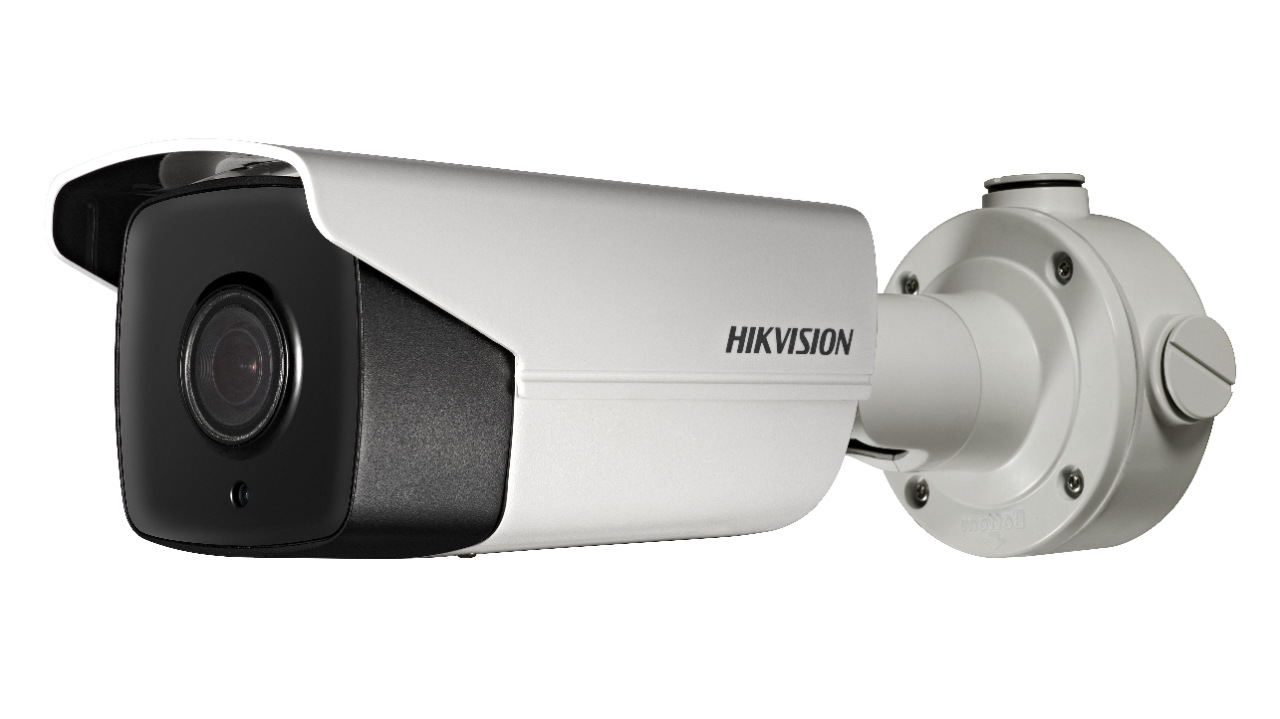

Hikvision DS-2CD4B25G0-IZS
POSMarket SKU: Z14215
DS-2CD4B25G0-IZS: 2MP Outdoor VF Bullet Camera, H.265, 120m IR, IP67, WDR, 4.7 - 65.8mm
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
2MP Outdoor VF Bullet Camera, H.265
Product Overview
The smart network bullet camera DS-2CD4B25G0-IZS offers 1920 x 1080 resolution, 120dB WDR, Auto-iris, PoE, Defog, EIS, 3D DNR, 6 behavior analyses, 3 exception detection, and 1 recognition to meet a wide variety of applications.
Features
- High quality imaging with 2 MP resolution
- Efficient H.265 compression technology to save bandwidth and storage
- 12x optical zoom (4.7~65.8mm/F1.4) lens with Smart Focus
- Water and dust resistant (IP67)
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | 0.005 Lux @ (F1.2, AGC ON)，0.007 Lux @ (F1.4, AGC ON) |
| Shutter Speed | 1 s - 1/100,000 s |
| Slow Shutter | Yes |
| Lens Mount | Integrated |
| Auto-iris | DC drive |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment (Bracket) Pan: | 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360° |
| LENS | |
| Focal length | 4.7 to 65.8 mm @F1.4 |
| Focus | Auto |
| FOV | 4.7 to 65.8 mm @F1.4, horizontal FOV 54.84° to 3.12°, vertical FOV 31.62° to 1.76°, diagonal FOV 62.08° to 3.58° |
| Lens Mount | Integrated |
| IR | |
| IR Range | Up to 120 m |
| Wavelength | 850nm |
| COMPRESSION STANDARD | |
| Video Compression | |
| Main stream: | H.265/H.264 |
| Sub stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bit Rate 3 | 2 Kbps - 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| INTERFACE | |
| Audio | 1 input (line in/mic in), 1 output (line out), mono |
| Communication Interface | 1 RJ45 10M/100M Ethernet port; 1 RS-485 interface |
| Alarm | 1 input, 1 output (up to 24 VDC 1A or 110 VAC 500mA) |
| Video Output | 1Vp-p composite output (75 Ω/BNC) |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| AUDIO | |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| SMART FEATURE SET | |
| Behavior Analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported |
| Region Entrance Detection | Enter a pre-defined virtual region from the outside place |
| Region Exit | Detection Exit from a pre-defined virtual region |
| Object Removal Detection | Objects removed from the pre-defined region, such as the exhibits on display. |
| Unattended Baggage | Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Exception Detection | Scene change detection, defocus detection, audio exception detection |
| Recognition | Face detection |
| Statistics | Counting General |
| Operating Conditions | -30°C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 20%, PoE (802.3at, class 4), three-core terminal blocks |
| Power Consumption and Current | 12 VDC +/- 20%: Max. 12 W/1 A PoE (802.3at, 42.5V-57V), 0.2 A to 0.3 A |
| Protection Level | IP67; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | Camera:348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″); With package: 386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″ ) |
| Weight Camera: | 1740 g (3.8 lb.) With package: 2125 g (4.7 lb.) |
