Hikvision DS-2CD2T86G2-ISU/SL
POSMarket SKU: Z14276
This model is available in 5 different configurations. Select a configuration below or contact our experts on 1300 737 998.

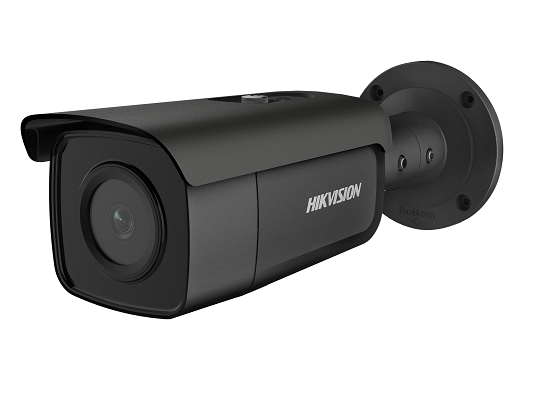

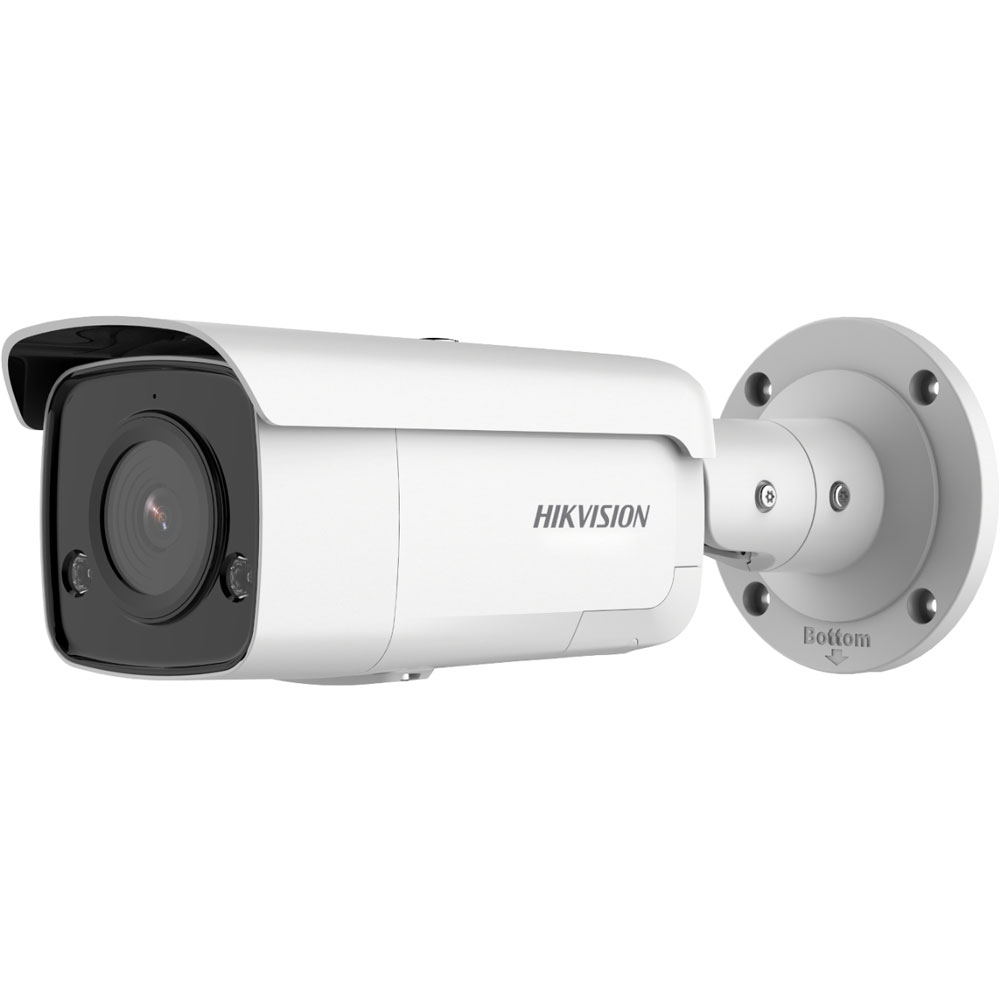

8MP Outdoor AcuSense Gen 2 Bullet Camera
Product Overview
Features
- High quality imaging with 4MP resolution
- 2.8mm lens
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- False alarm reduction through human and vehicle target classification based on deep learning
- IP66
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
Product Specifications
| CAMERA | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| LENS & FOV | |
| 2.8 mm | horizontal FOV: 111°, vertical FOV: 59°, diagonal FOV: 131° |
| 4 mm | horizontal FOV: 87°, vertical FOV: 47°, diagonal FOV: 102° |
| 6 mm | horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 60°Aperture F1.6 |
| Lens Mount | M16 |
| ILLUMINATOR | |
| IR Range | Up to 60 m |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Visual Alarm | Yes |
| AUDIO | |
| Environment Noise Filtering | Yes |
| AUDIO (-U) | |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/ 8-320Kbps(MP3) |
| INTERFACE | |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A or max. 24 VAC, 1 A) |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Intelligent (Traditional Algorithm) | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
| Intelligent (Deep Learning Algorithm) | |
| Face Capture | Yes |
| Premier Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
Product Videos
