Hikvision DS-2CD2T66G2-ISU/ SL
POSMarket SKU: Z14319
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

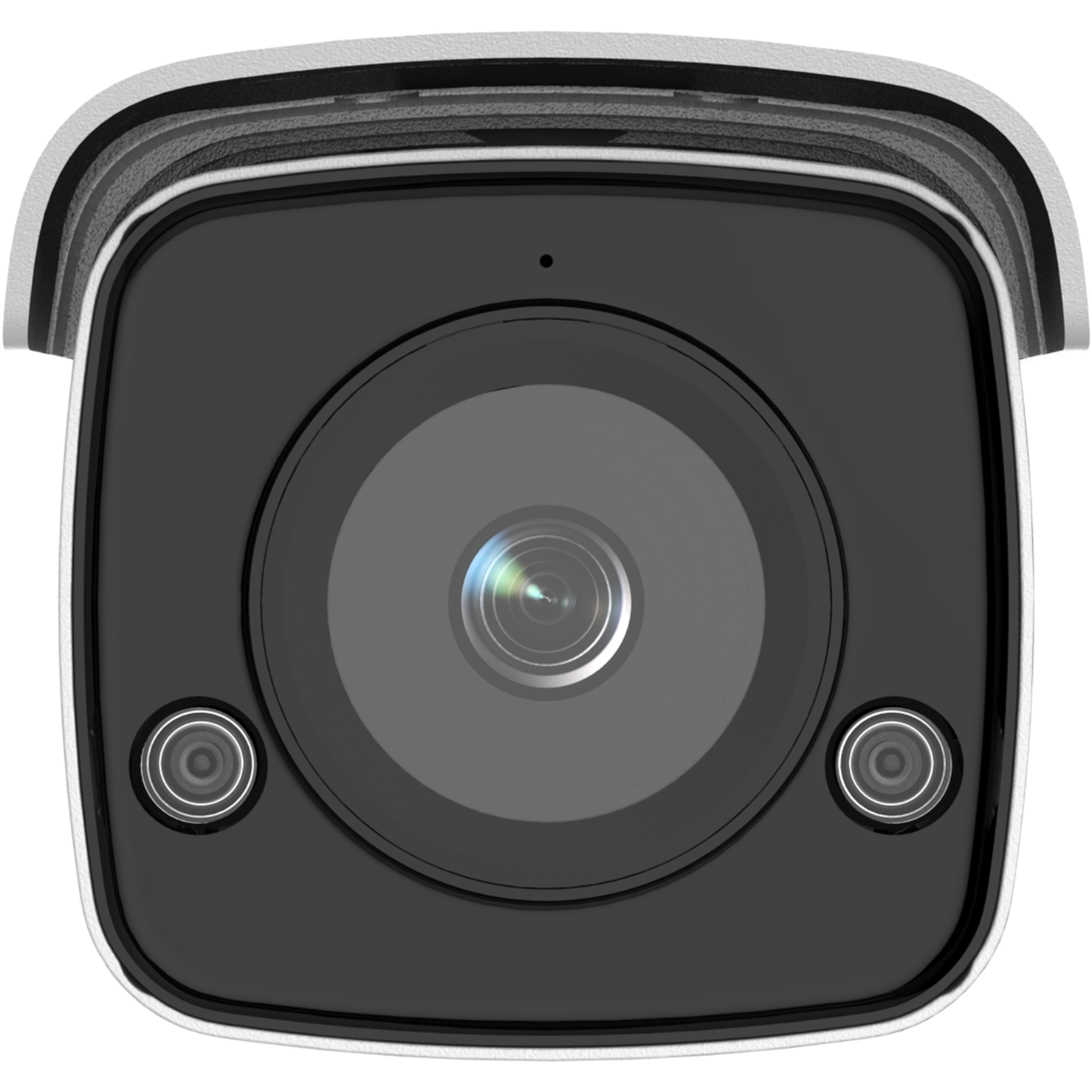

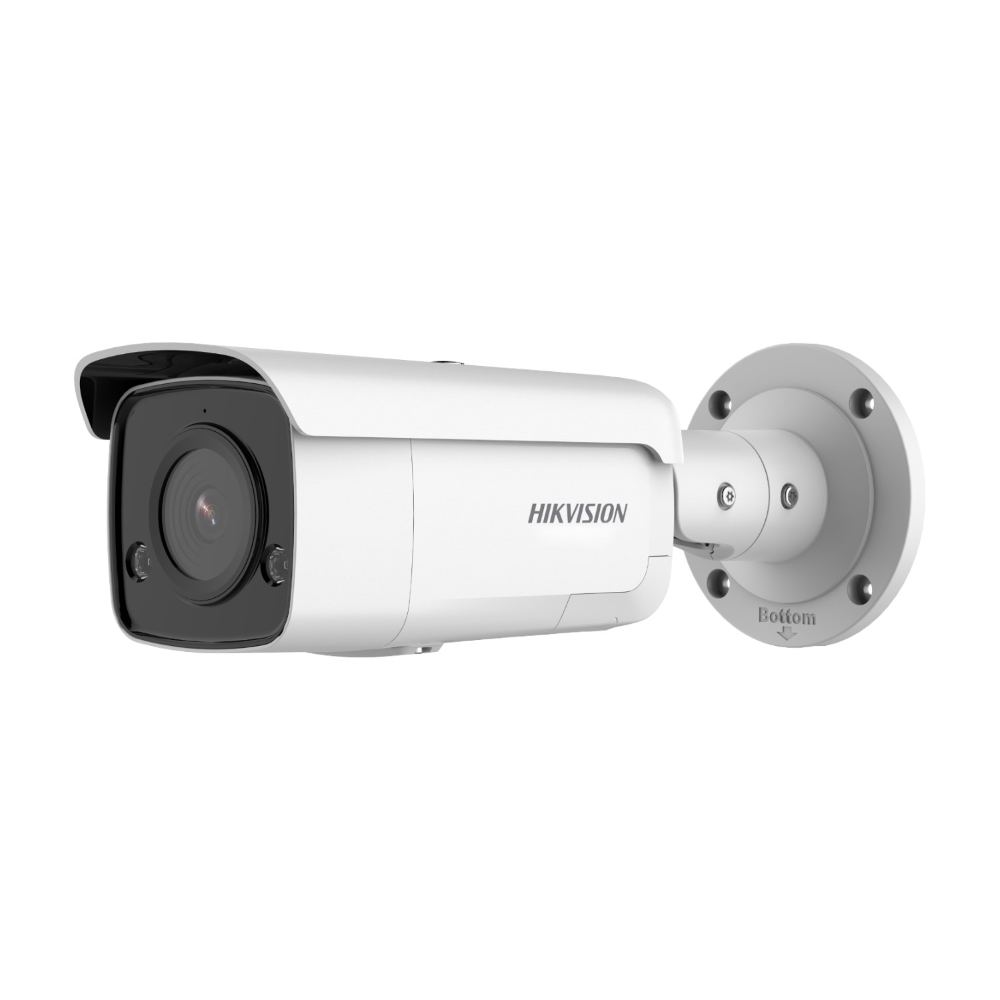

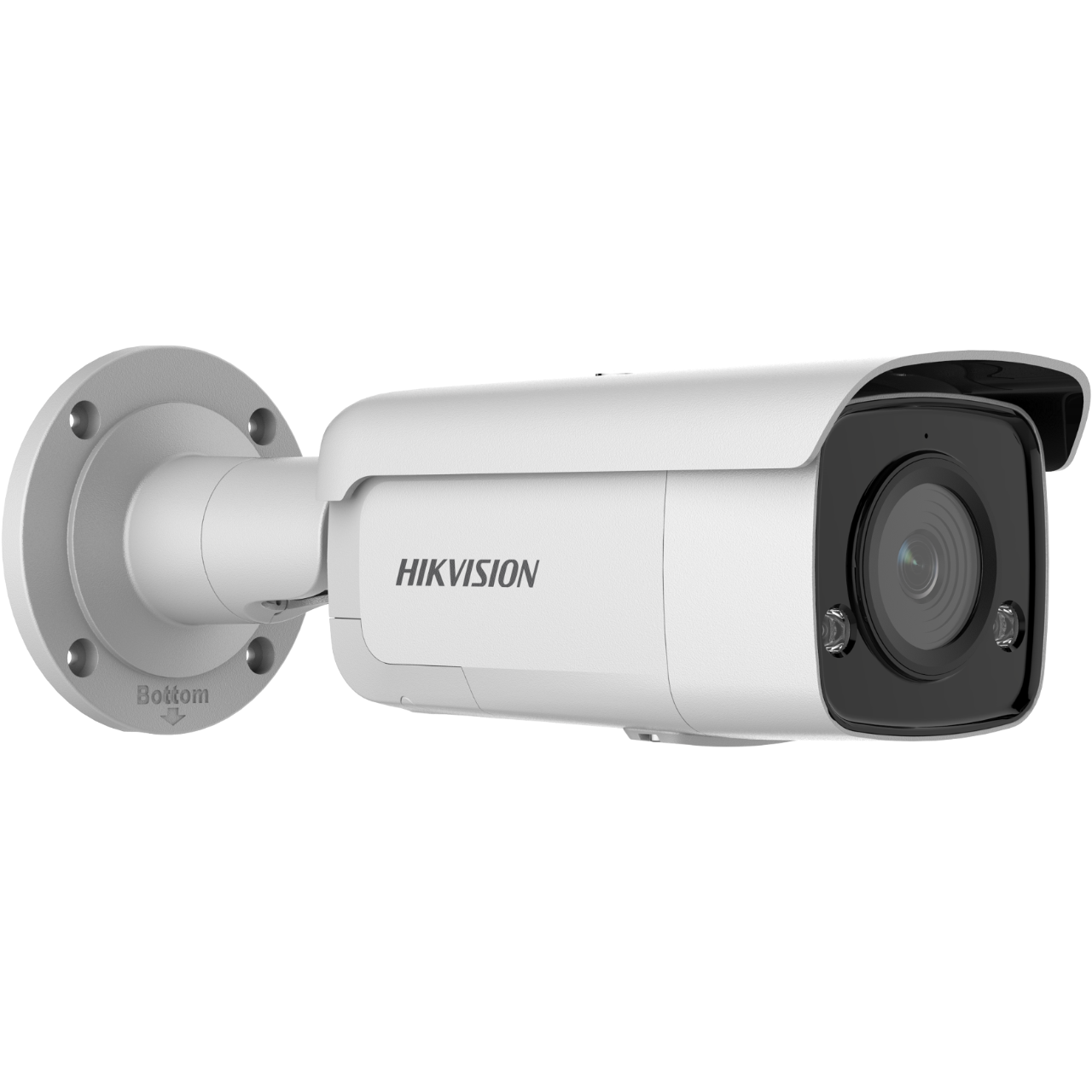

6MP Outdoor AcuSense Gen 2 Bullet Camera, with Mic, Strobe, and Audio Alarm.
Product Overview
The most paramount feature with the AcuSense gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money. The inclusion of two-way audio allows customisable warnings to be played when an event takes place or automatically trigger the built-in alarm siren and strobe light.
Features
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination Color: | 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment Pan: | 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| LENS | |
| Aperture | F1.6 |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Iris Type | Fixed |
| Focal Length & FOV | |
| 2.8 mm | horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° |
| 4 mm | horizontal FOV83.9°, vertical FOV 44.5°, diagonal FOV 100.8° |
| 6 mm | horizontal FOV47.5°, vertical FOV 26°, diagonal FOV 54.5° |
| Lens Mount | M12 |
| DORI | |
| 2.8 mm: | D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m |
| 4 mm: | D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m |
| 6 mm: | D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m |
| ILLUMINATOR | |
| Supplement Light Type | IR |
| Visual Alarm | Yes |
| IR Range | Up to 60 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| VIDEO COMPRESSION | |
| Main stream: | H.265/H.264/H.264+/H.265+ |
| Sub-stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| AUDIO | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| IMAGE | |
| SNR | ≥ 52 dB |
| Target Cropping | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| General | |
| Firmware Version | V5.5.113 |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel Counter |
| Approval | Protection IP67 (IEC 60529-2013) |
