Hikvision DS-2CD2D21G0 M-D NF
POSMarket SKU: Z14197
DS-2CD2D21G0MDNF: 2MP Indoor Covert Mini Camera, 120dB, WDR, 3D DNR, 2.8mm

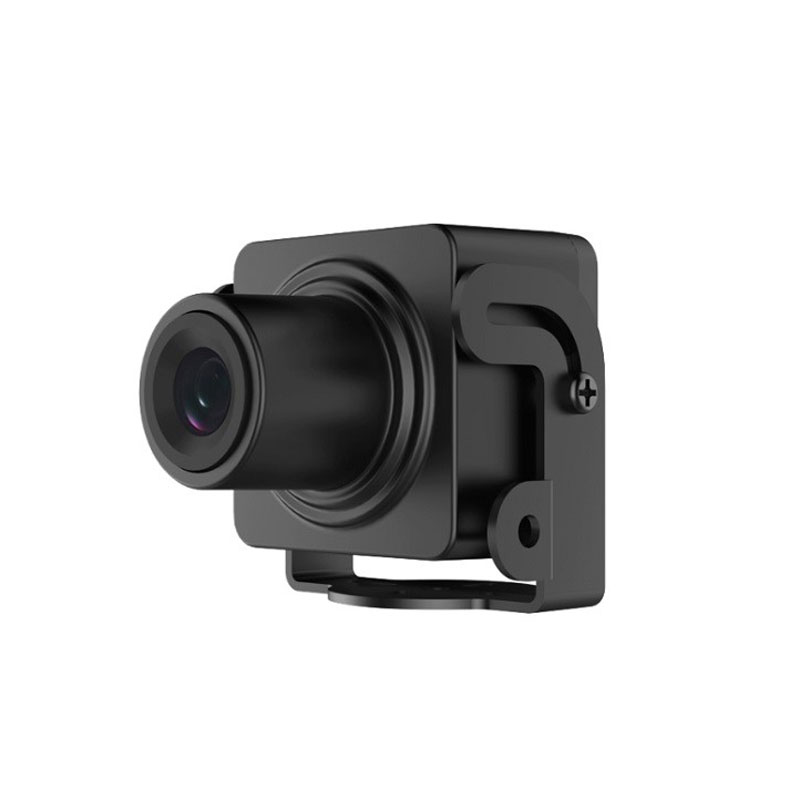

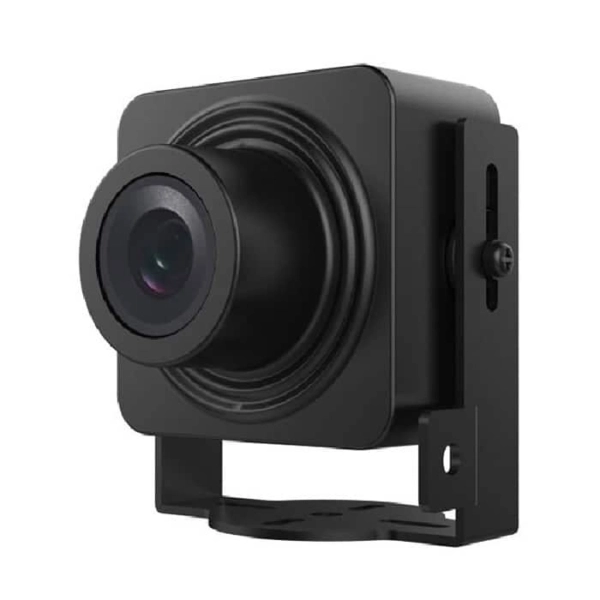

2MP Indoor Covert Mini Camera.
Product Overview
Smart features, such as line crossing, intrusion, unattended luggage, and scene change detection are also supported.
Features
- Minimum Illumination: Color: 0.025 lux @ (f/1.2, AGC on), 0.069 lux @ (f/2.0, AGC on) B/W: 0.005 lux @ (f/1.2, AGC on), 0.014 lux @ (f/2.0, AGC on)
- Up to 1920 x 1080 Resolution @ 30 fps
- Lens Mount: M12
- H.265+, H.265, H.264+, H.264
- Main Stream: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
- 12 VDC, maximum 3 W
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | |
| Without /M model: | |
| Color: | 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON) |
| B/W: | 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON) |
| With /M model: | |
| Color: | 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON) |
| B/W: | 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day & Night | Electronic |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| LENS | |
| Focal Length Without /M model: | 3.7 mm |
| With /M model: | 2.8 mm, 4 mm |
| Focus | Fixed |
| FOV | |
| Without /M model: | 3.7 mm |
| horizontal FOV: | 78°, vertical FOV: 43°, diagonal FOV: 90° |
| With/M model: | 2.8 mm |
| horizontal FOV: | 114°, vertical FOV: 62°, diagonal FOV: 135° |
| Without /M model: | 4 mm |
| horizontal FOV: | 86°, vertical FOV: 46°, diagonal FOV: 102.5° |
| Lens Mount | M12 |
| SMART FEATURE SET | |
| Behavior Analysis | Line crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection |
| Exception | Scene change detection, defocus detection |
| Face Detection | Yes |
| Region of Interest | Support 1 fixed region for main stream, sub-stream and third stream |
| INTERFACE | |
| Audio | 1 input (line in) |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Reset Button | Yes |
| GENERAL | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 20%, Ø 5.5 mm coaxial plug power |
| Power Consumption andCurrent | 12 VDC, 0.3 A, max. 3 W |
| Material | Aluminum Alloy |
| Dimension | |
| Without /M model: | 31 mm x 31 mm x26 mm (1.2" x 1.2" x 1") |
| With /M model: | 31 mm x 31 mm x 39 mm (1.2" x 1.2" x 1.5") |
| Weight With package: | approx. 202 g (0.4 lb.) |
| Camera: | approx. 93 g (0.2 lb.) |
