Hikvision DS-2CD2766G2T-IZS
$468.74 (incl. GST)
POSMarket SKU: Z14314

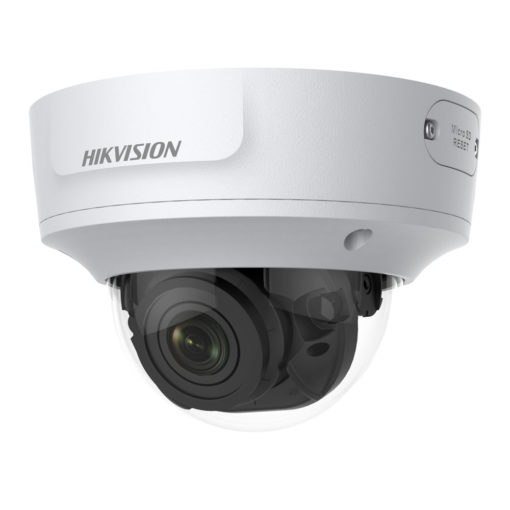

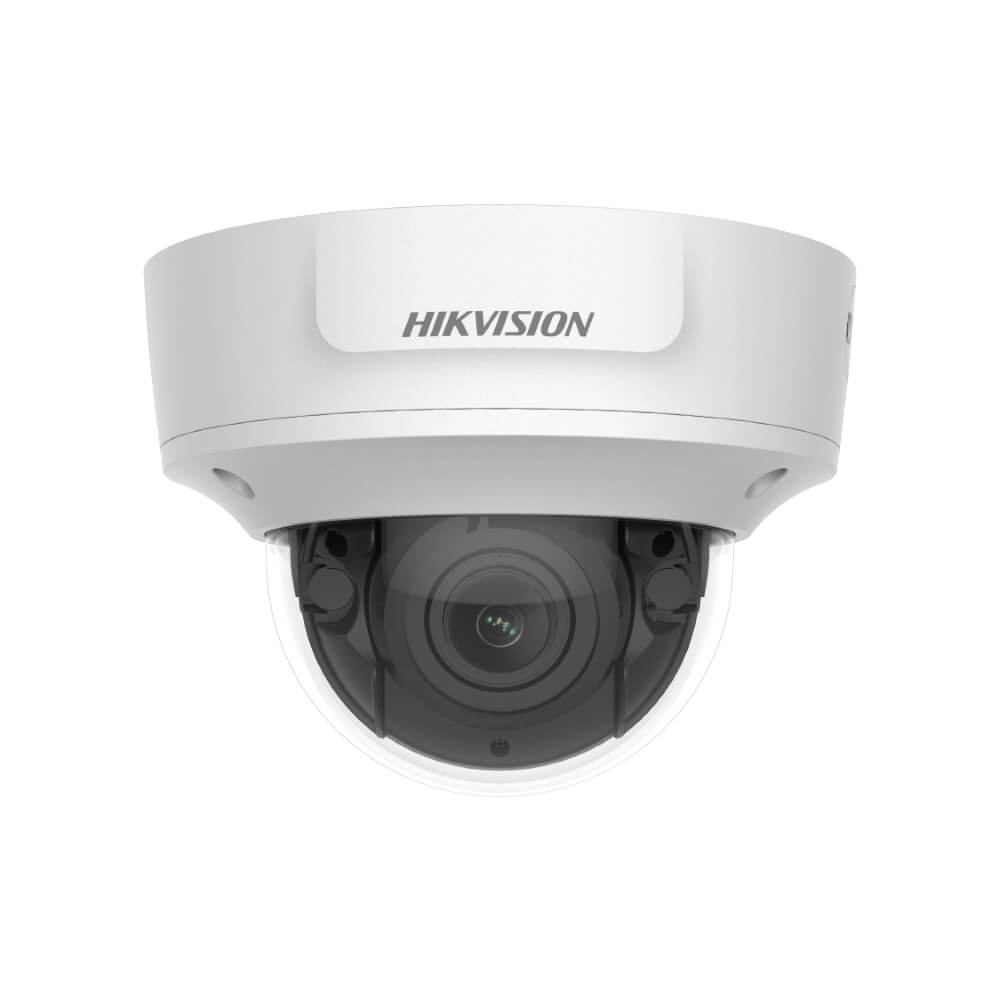

DS-2CD2766G2T-IZS: Hikvision 6MP Outdoor AcuSense Gen 2 Motorised VF Dome Camera, IR, IP66, IK10, 2.8-12
AcuSense Motorized Varifocal Dome Network Camera
Product Overview
The Hikvision DS-2CD2766G2T-IZS also know to be HIK-2CD27662TIZS is a 6MP outdoor AcuSense gen 2 motorised varifocal dome camera. Empowered by deep learning algorithms, Hikvision's AcuSense technology can distinguish people and vehicles from other moving objects, such as falling leaves or small animals. While originally created with the purpose of preventing false alarms, AcuSense technology offers users several other key benefits such as advanced analytics, active deterrence and timely alerts.
The most paramount feature with the AcuSense Gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money. The camera also has an alarm input that can support third party devices such as an alarm system that can connect to the camera via a cable. Once the alarm input is triggered, it allows events to be received on the camera, which can be configured to send a notification to a mobile app or back to the Hikvison NVR or HikCentral to notify the end user.
Features
The most paramount feature with the AcuSense Gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money. The camera also has an alarm input that can support third party devices such as an alarm system that can connect to the camera via a cable. Once the alarm input is triggered, it allows events to be received on the camera, which can be configured to send a notification to a mobile app or back to the Hikvison NVR or HikCentral to notify the end user.
Features
- 6MP resolution
- Motorised varifocal lens for easy installation and monitoring
- Excellent low-light performance powered by DarkFighter technology
- 120dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- IP67 and IK10 rated
Product Specifications
| Camera | |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination Color: | 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Power-off Memory | Yes |
| Angle Adjustment Pan: | 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Focal Length & FOV | 2.8 to 12 mm: Horizontal FOV 99° to 35°, vertical FOV 53° to 20°, diagonal FOV 117° to 41° |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Aperture | F1.4 |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| DORI | |
| 2.8 to 12 mm: | Wide: D: 80 m, O: 31 m, R: 16 m, I: 8 m Tele: D: 210 m, O: 83 m, R: 42 m, I: 21 m |
| Illuminator | |
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Range | Up to 40 m |
| IR Wavelength | 850 nm |
| Video Compression | |
| Main stream: | H.265/H.264/H.264+/H.265+ |
| Sub-stream: | H.265/H.264/MJPEG |
| Third stream: | H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| Audio | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rat | e 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Interface | |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance:100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification |
| Approval | |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
