Hikvision DS-2CD2766G2-IZS
POSMarket SKU: Z14313

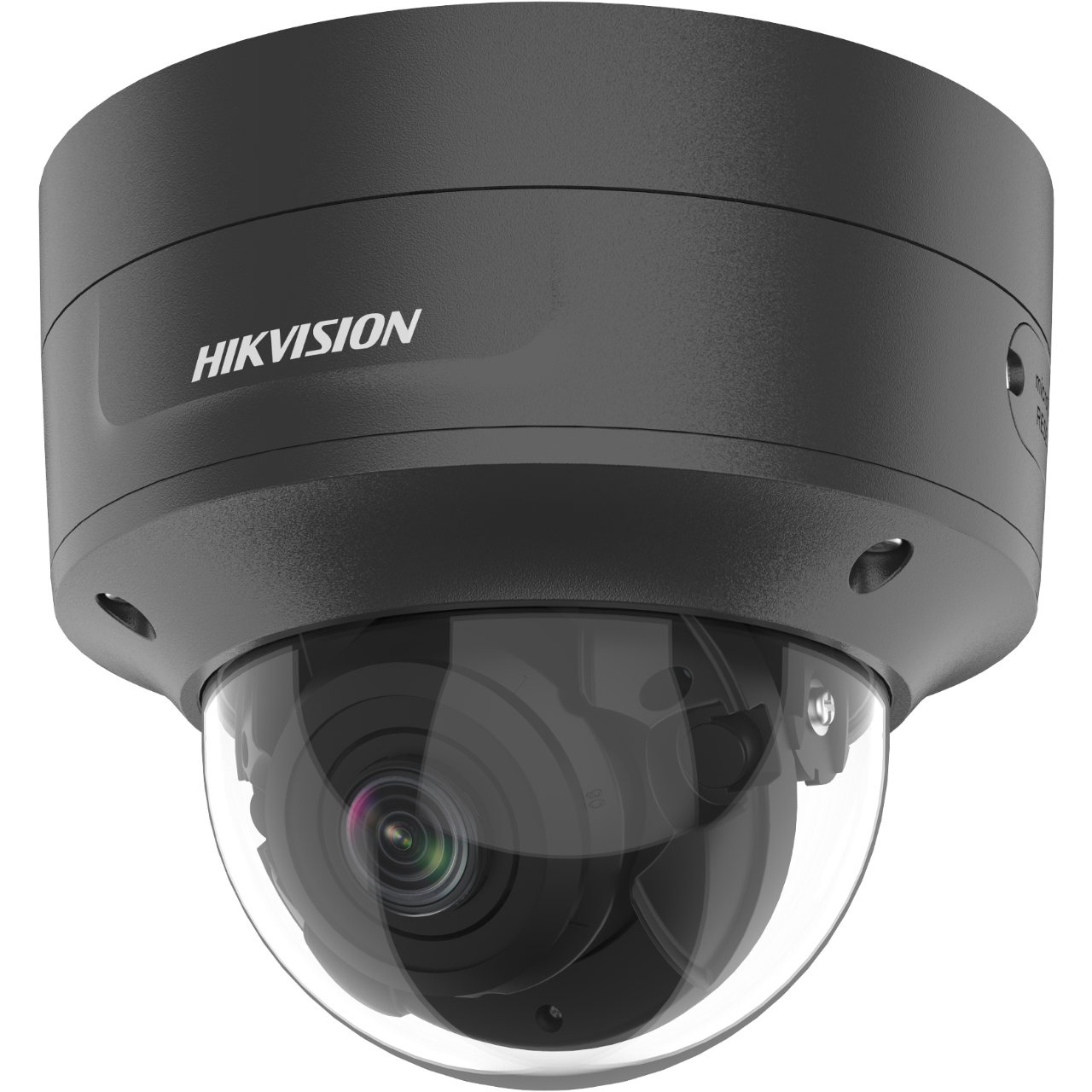

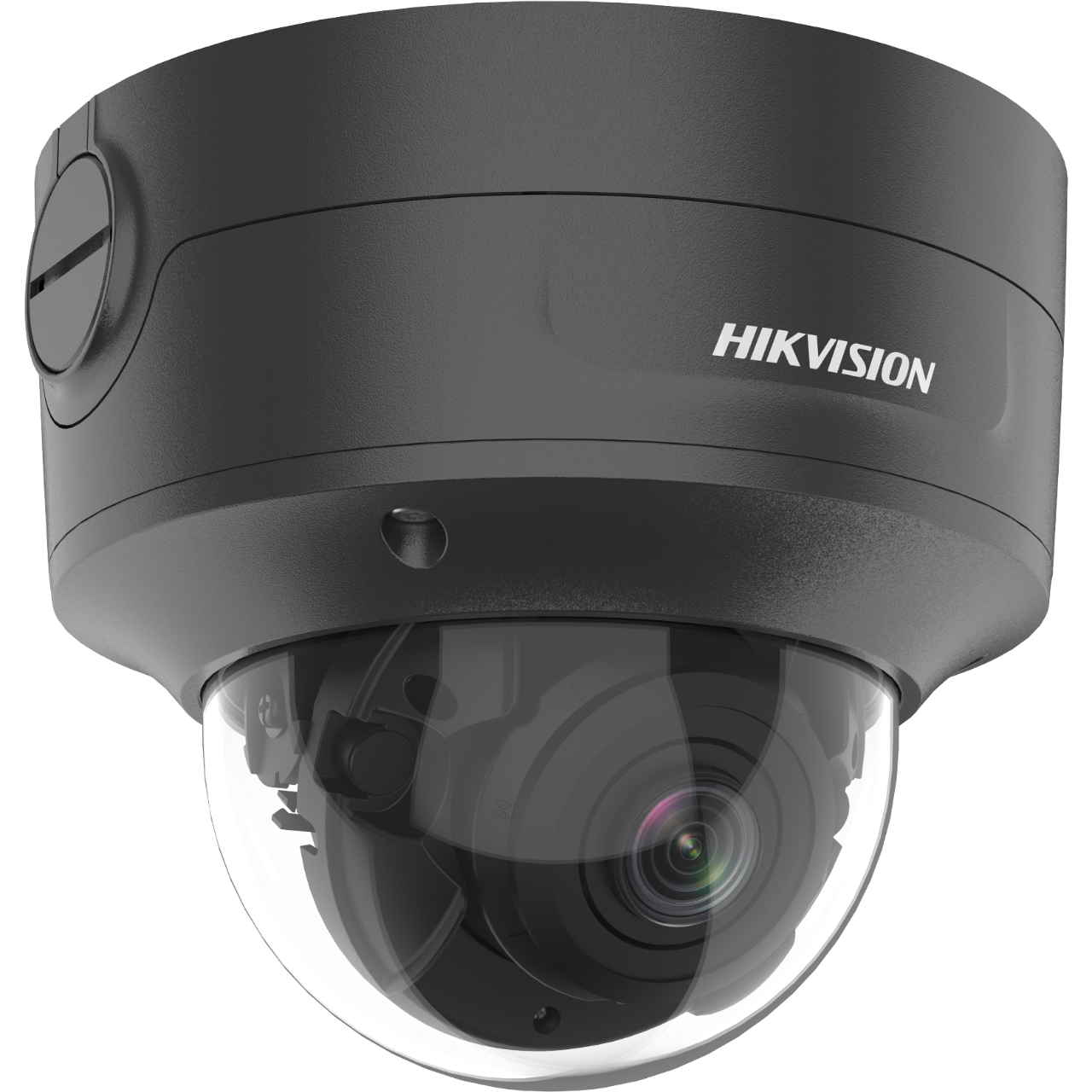

DS-2CD2766G2-IZS: Hikvision 6MP Outdoor AcuSense Gen 2 Motorised VF Dome Camera, Shadow Series, 2.8-12. Black
6MP Outdoor AcuSense Gen 2 Motorized Varifocal Dome Network Camera
Product Overview
The most paramount feature with the AcuSense gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money. The camera also has an alarm input that can support third party devices such as an alarm system that can connect to the camera via a cable. Once the alarm input is triggered, it allows events to be received on the camera, which can be configured to send a notification to a mobile app or back to the Hikvison NVR or HikCentral to notify the end user.
Features
- High quality imaging with 6 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP66) and vandal proof (IK10)
Product Specifications
| Camera | ||
| Image Sensor | 1/2.4" Progressive Scan CMOS | |
| Wide Dynamic Range | 120 dB | |
| Min. Illumination Color: | 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR | |
| Shutter Speed | 1/3 s to 1/100,000 s | |
| Slow Shutter | Yes | |
| P/N | P/N | |
| Day & Night | IR cut filter | |
| Angle Adjustment Pan: | 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Power-off Memory | Yes | |
| Lens | ||
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm | |
| Iris Type | Fixed | |
| Focal Length & FOV | ||
| 2.8 to 12 mm | horizontal FOV 99° to 35°, vertical FOV 53° to 20°, diagonal FOV 117° to 41° | |
| Aperture | F1.4 | |
| Lens Mount | Ø14 | |
| DORI | ||
| 2.8 to 12 mm: | Wide: D: 80 m, O: 31 m, R: 16 m, I: 8 m Tele: D: 210 m, O: 83 m, R: 42 m, I: 21 m | |
| Illuminator | ||
| Supplement Light Type | IR | |
| IR Range | Up to 40 m | |
| IR IR Wavelength | 850 nm | |
| Smart Supplement Light | Yes | |
| Video Compression | ||
| Main stream: | H.265/H.264/H.264+/H.265+ | |
| Sub-stream: | H.265/H.264/MJPEG | |
| Third stream: | H.265/H.264 *Third stream is supported under certain settings. | |
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| H.265 Type | Main Profile | |
| H.264+ | Main stream supports | |
| Audio | ||
| Environment Noise Filtering | Yes | |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC | |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) | |
| Audio Type | Mono sound | |
| Interface | ||
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) | |
| Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB | |
| Reset Key | Yes | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| Event | ||
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception | |
| Smart Event | Scene change detection | |
| Deep Learning Function | ||
| Face Capture | Yes | |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification | |
| Approval | ||
| Protection | IP66 (IEC 60529-2013), IK10 (IEC 62262:2002) | |
