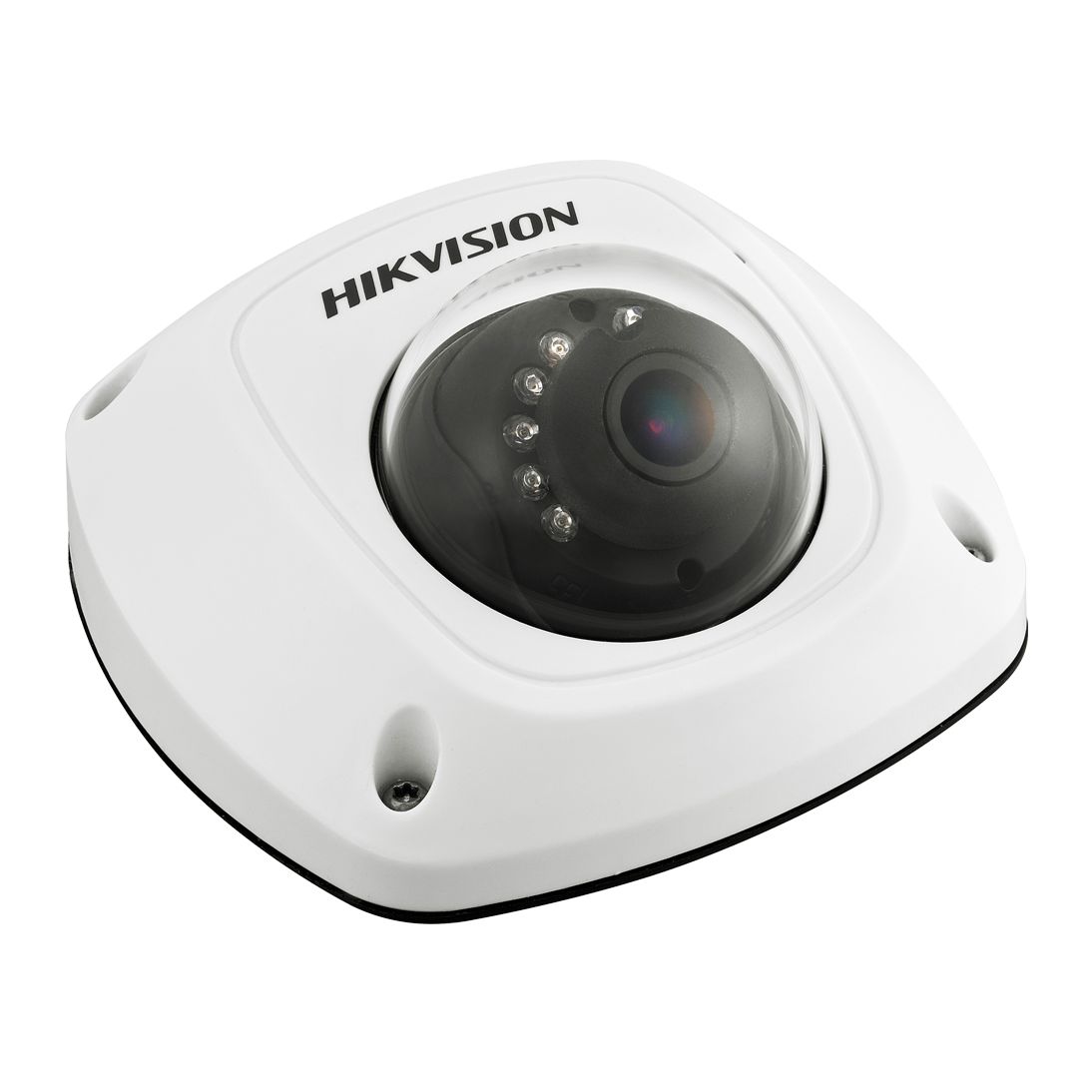

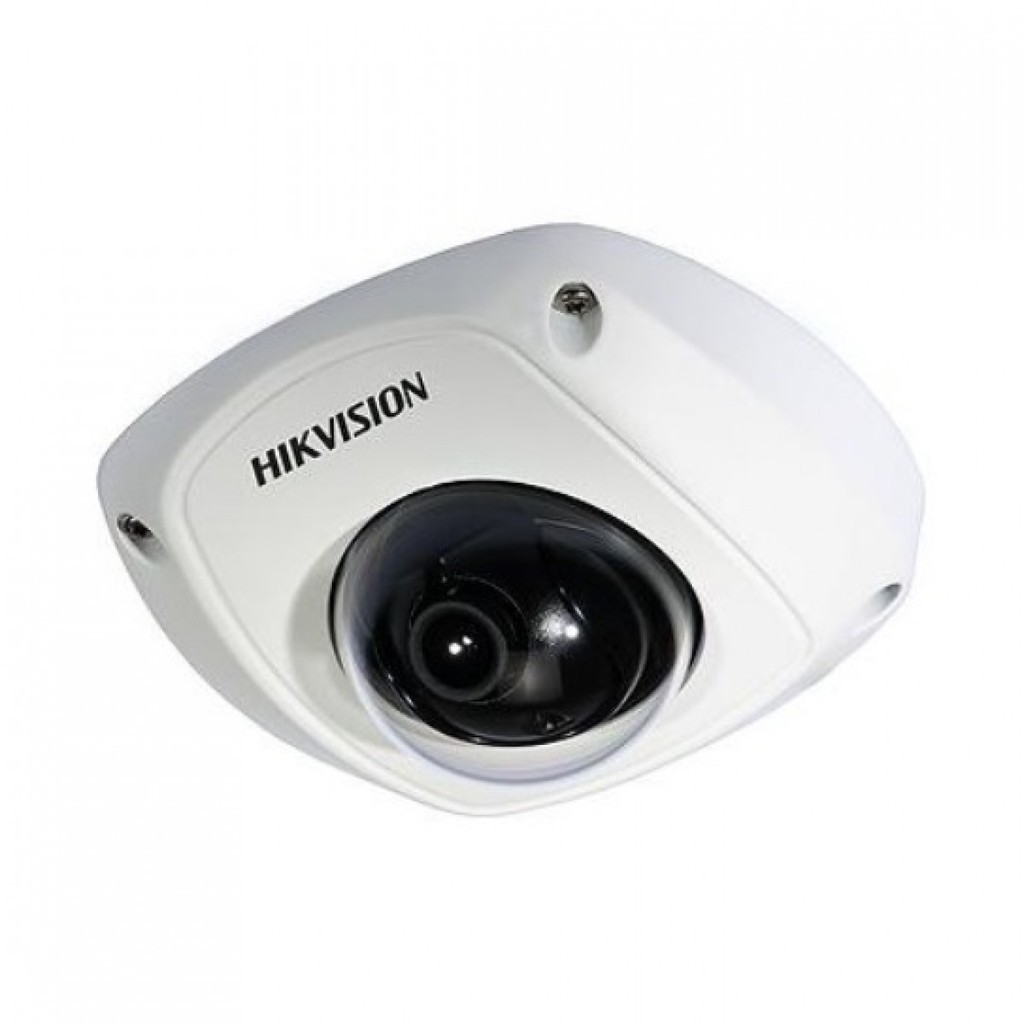

Hikvision DS-2CD2522FWD-I
$254.10 (incl. GST)
POSMarket SKU: Z14202
DS-2CD2522FWD-I: 2MP Outdoor Mini Dome, H.264+, 10m IR, 3DDNR, 120dB WDR, IP67, PoE, 6mm
2MP Outdoor WDR Mini Dome Network Camera.
Product Overview
Part of Hikvision's 2-Line range of cameras, the DS-2CD2522FWD-I or HIK-2CD2522FWDIx is a vandal proof mini IR network dome camera that produces exceptional full-HD 1080p real-time video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 30m visibility at night and with a 6mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.
Rigorously tested, Hikvision's 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
Features
Rigorously tested, Hikvision's 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
Features
- Up to 2-megapixel high resolution
- Full HD1080p Real-time video
- 6mm fixed lens
- 120dB Wide Dynamic Range
- Back Light Compensation, 3D Digital Noise Reduction
- DC12V & PoE powered
- Supports H.264, H.264+ Technology
- Infrared LED- Up to 10m IR range
- 3-axis camera adjustment
- IP67 & IK08 Rating
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 0.028Lux 1/3 s to 1/10,000 s @ (F2.0, AGC ON) ,0 Lux with IR |
| Lens | 2.8mm, 4mm, 6mm @ F2.0 angle of view: 100°(2.8mm), 90°(4mm), 53.9°(6mm) |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| Angle of adjustment | Pan:-30°~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360° Network |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Detection | Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis |
| Alarm Trigger | Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
| Standard ONVIF | (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| INTERFACE | |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Alarm interface | 1x alarm I/O *only for -S models |
| Audio interface | Built-in microphone and 1x audio output *only for –S models |
| Reset | Yes |
| Wi-Fi * only for -W models | |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Protocols | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transfer Rates | 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range | 50 meters *The performance varies based on actual environment. |
| GENERAL | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140°F),Humidity 95% or less (non-condensing) |
| Power Supply | DC12V +/-25%, PoE (802.3af Class3) |
| Power Consumption | Max. 5W; Max. 9W with pan and tilt Material Top Cover: Plastic; Base: Metal |
| IR Range | Approx. 10 meters |
| Ingress Protection | IP67 |
| Impact Protection | IEC60068-275Eh, 20J; EN50102, up to IK08 |
| Dimensions | 99.3 x 96.7 x 52.8 mm |
| Weight | 600 g (1.32 lbs) |
