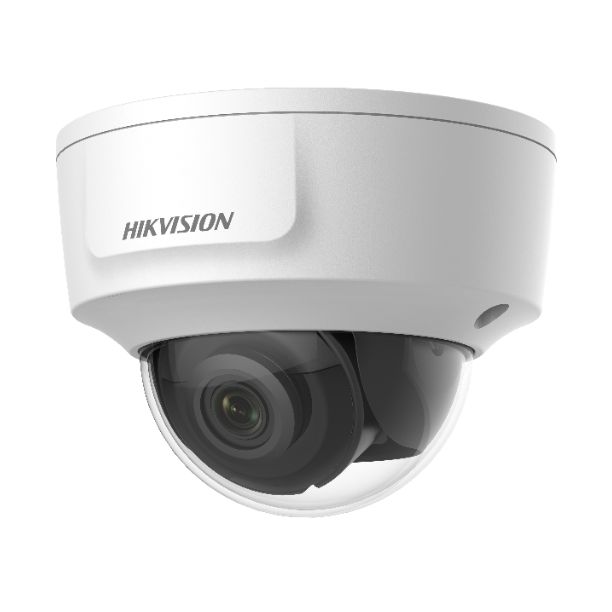

Hikvision DS-2CD2185G0-IMS
from $385.00 (incl. GST)
POSMarket SKU: Z14181
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
8MP Indoor 4K HDMI Fixed Dome Network Camera Powered by Darkfighter.
Product Overview
The Hikvision's DS-2CD2185G0-IMS or HIK-2CD2185GOIMS 8MP IR fixed dome indoor network camera provides HDMI output directly to a video display to conveniently set up a public view monitor (PVM) for theft deterrence. The camera offers 2840 x 2160 resolution at 20 fps, and comes with a 2.8 mm, 4 mm, or 6 mm fixed lens. The camera offers excellent colour sensitivity and features an IR range of up to 30m as well as true 120 dB WDR for high quality images. Additionally, it utilises four behaviour analyses and face detection to help identify suspicious activity and with a built-in microSD card slot it supports up to 128 GB.
Features
Features
- 1/2.5" progressive scan CMOS
- 3840 x 2160 @ 20 fps
- 2.8mm/4mm/6mm fixed lens options
- Colour: 0.028 Lux @ (F2.0, AGC on), 0 Lux with IR
- HDMI output
- H.265, H.264
- 120 dB WDR
- 4 behavior analyses and face detection
- BLC/3D DNR/ROI/HLC
- IK10 built-in MicroSD/SDHC/SDXC Slot, up to 128 GB
- 3-axis adjustment
- 30m IR range
Product Specifications
| CAMERA | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination Color: | 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| WDR | 120 dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| LENS | |
| Lens Type | 2.8/4/6 mm |
| Aperture | F2.0 |
| FOV | |
| 2.8 mm, | horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° |
| 4 mm, | horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95° |
| 6 mm, | horizontal FOV: 50° , vertical FOV: 28° , diagonal FOV: 59° |
| Lens Mount | M12 |
| ILLUMINATOR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| AUDIO | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| SMART FEATURE SET | |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Face Detection | Yes |
| Linkage Method | |
| Trigger recording: | memory card, network storage, pre-record and post-record |
| Trigger captured pictures uploading: | FTP, HTTP, NAS, Email |
| Trigger notification: | HTTP, ISAPI, Email |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| NETWORK | |
| Network Storage | microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnPâ„¢, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| WEB BROWSER | |
| Plug-in required live view: | IE8+ |
| Plug-in free live view: | Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Local Service: | Chrome 41.0+, Firefox 30.0+ |
| INTERFACE | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 input (line in/mic in, terminal block), 1 output ( two-core terminal block), mono |
| SOUND | |
| Alarm | 1 input, 1 output (max. 12VDC, 30 mA) |
| Video Output | 1 HDMI, type D, female plug (-M) |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| HDMI Output | 1920 x 1080 @50/60 fps(50/60 Hz), 1280 x 720 @50/60 fps(50/60 Hz) |
