Hikvision DS-2CD2166G2-I
from $270.46 (incl. GST)
POSMarket SKU: Z14298
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

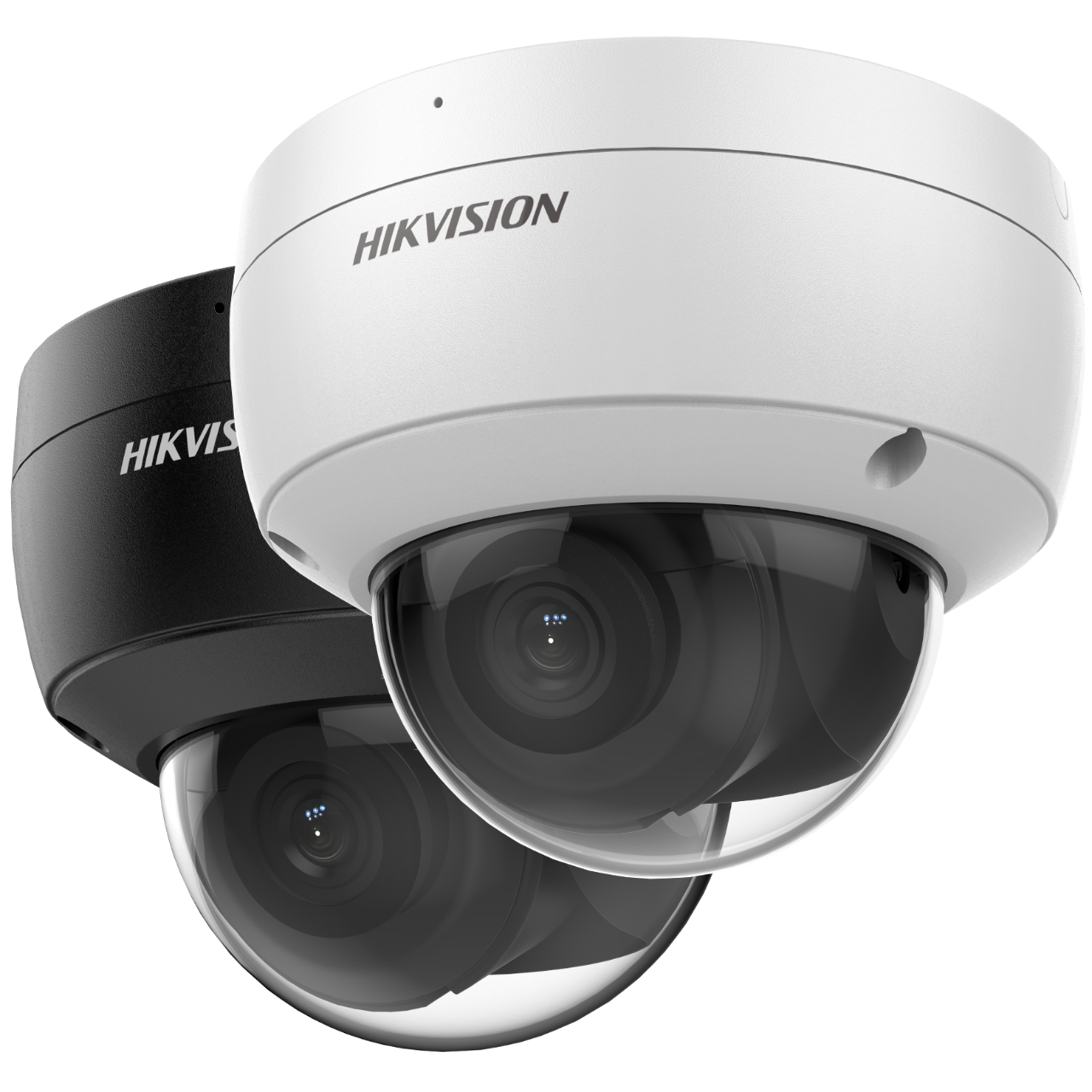

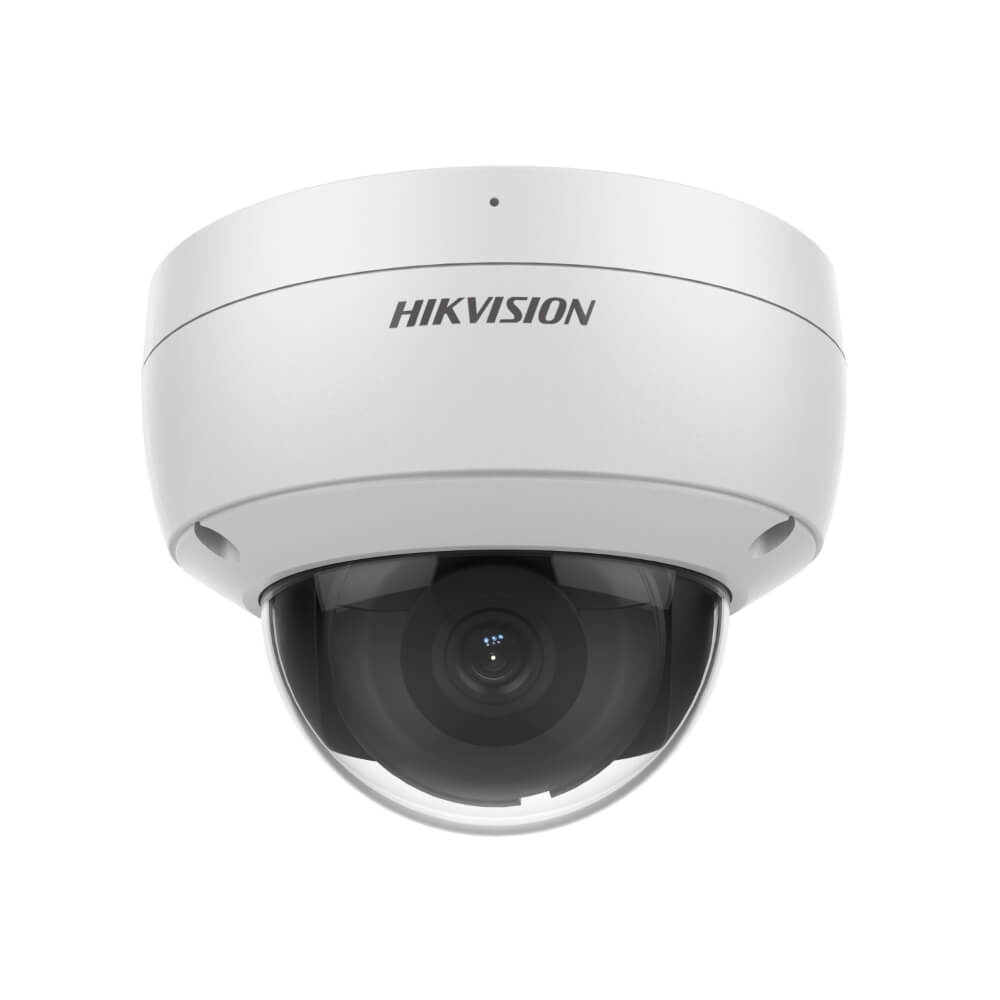

6MP Outdoor AcuSense Gen 2 Dome Camera
Product Overview
The Hikvision DS-2CD2166G2-I also known as HIK-2CD2166G2-Ix is a 6MP outdoor AcuSense gen 2 dome camera. Empowered by deep learning algorithms, Hikvision's AcuSense technology can distinguish people and vehicles from other moving objects, such as falling leaves or small animals. While originally created with the purpose of preventing false alarms, AcuSense technology offers users several other key benefits such as advanced analytics, active deterrence and timely alerts.
The most paramount feature with the AcuSense gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money.
Features
The most paramount feature with the AcuSense gen 2 cameras is the analytic alert which will generate alarm events that are searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event, saving the end customer time and money.
Features
- 6MP resolution
- Excellent low-light performance with powered by DarkFighter technology
- 120dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- IP67 and IK10 rated
Product Specifications
| Camera | |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Min. Illumination Color: | 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment Pan: | 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | |
| 2.8 mm | horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° |
| 4 mm | horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Working Distance | |
| 2.8 mm: | 2.6 m to ∞ |
| 4 mm: | 3.2 m to ∞ |
| DORI | |
| 2.8 mm | D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m |
| 4 mm | D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m |
| Illuminator | |
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m Audio |
| Audio Type -U: | mono sound |
| Environment Noise Filtering -U: | Yes |
| Audio Sampling Rate -U: | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression -U: | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate -U: | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Interface |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Built-in Microphone -U: | Yes |
| Audio -S: | 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω,interface type: non-equilibrium, mono sound |
| Alarm -S: | 1 input, 1 output (TTL: max. 12 VDC, 30 mA) |
| Hardware Reset | Yes |
| General | |
| Power | 12VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5 W |
| Dimension | Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6") |
| Package Dimension | 150 mm× 150 mm × 141 mm (5.9" × 5.9" × 5.6") Approx. 550 g (1.2 lb.) |
| With Package Weight | Approx. 800 g (1.8 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, anti-flicker, mirror, flash log, and password reset via email, pixel counter |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013||IK10: IEC 62262:2002 |
