Hikvision DS-2CD2086G2-I(U)
from $365.75 (incl. GST)
POSMarket SKU: Z14266
This model is available in 9 different configurations. Select a configuration below or contact our experts on 1300 737 998.

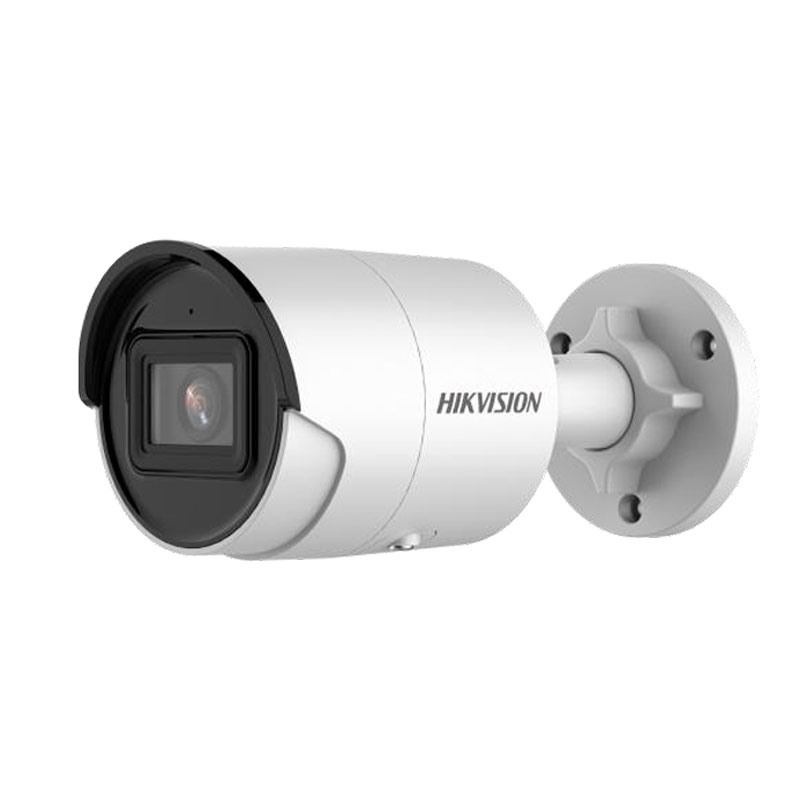

8 MP AcuSense Powered-by-Darkfighter Fixed Mini Bullet Network Camera
Product Overview
The Hikvision DS-2CD2086G2-I(U) HIK-2CD2086G2-I(u) is a 2.8mm outdoor, IP67 rated mini bullet camera which has an IR range of 40m. Hikvision's AcuSense Gen2 range hits a milestone in area protection and perimeter security by combining existing features such as line crossing and perimeter detection with an enhanced deep learning algorithm. AcuSense can accurately distinguish people and vehicles from other moving objects which reduces the amount of false video motion alarms by up to 95 percent. Powered by Hikvision's Darkfighter technology, AcuSense Gen2 can deliver clear cut images even in the lowest lighting conditions of 0.003 Lux at F1.4 (4MP). AcuSense Gen2 activations will generate alarm events which will be searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event saving time and money for the end customers.
Features
Features
- High quality imaging with 8 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Built-in microphone for real-time audio security(-U)
- Water and dust resistant (IP67)
Product Specifications
| Camera | |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0to 360°, tilt: 0 to 90°, rotation: 0 to 360° |
| Power-off Memory | Yes |
| Lens& FOV | |
| 2.8 mm, horizontal FOV: | 102°, vertical FOV: 55°, diagonal FOV: 120° |
| 4 mm, horizontal FOV: | 78°, vertical FOV: 43°, diagonal FOV: 92° |
| 6 mm, horizontal FOV: | 50°, vertical FOV: 27°, diagonal FOV: 59° |
| Aperture | F1.6 |
| Lens Mount | M16 |
| DORI | |
| DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m |
| Illuminator | |
| Supplement Light Type | IR |
| IR Range | Up to 40 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Audio | |
| Environment Noise Filtering | -U: Yes |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Type | -U: Mono sound |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Target Cropping | Yes |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Interface | |
| Built-in Microphone | -U: Yes |
| On-Board Storage | Built-in micro SD, up to 256 GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, and exception |
| Smart Event | Scene change detection |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification |
| General | |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, and password reset via email, pixel counter |
| Software Reset | Yes |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F ). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F ). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC +/- 25% PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Camera Material | Metal |
| Camera Dimension | Ø 70 mm ×161.7 mm (Ø 2.8" × 6.37") |
| Package Dimension | 216 mm × 121 × 118 mm (8.5" × 4.8" ×4.6") |
| Camera Weight | Approx. 485 g (1.1 lb.) |
| With Package Weight | Approx. 749 g (1.6 lb.) |
| Firmware Version | V5.5.112 |
| Approval | |
| Protection | IP67 (IEC 60529-2013) |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Available Model | DS-2CD2086G2-IU (2.8/4/6 mm) DS-2CD2086G2-I (2.8/4/6 mm) |
