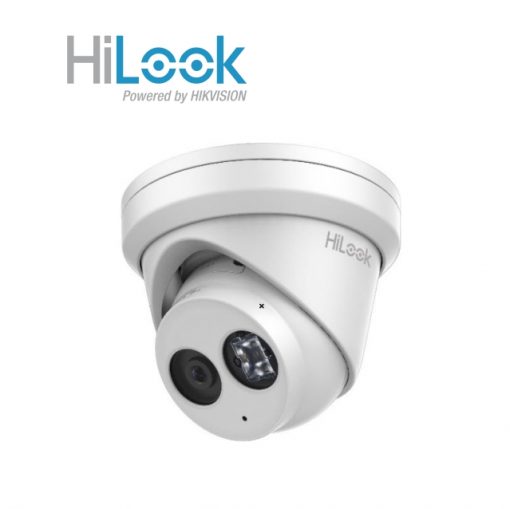

Hikvision 6MP IP POE Turret Camera with 2.8mm Fixed Lens
$96.25 (incl. GST)
POSMarket SKU: Z18368
IPC-T260H-MU 6MP 2.8: IPC-T260H-MU 6MP 2.8mm Turret 30m IR PoE Built-in Mic, CCTV Network IP Camera
HILOOK 6MP IP POE Turret Camera With 2.8mm Fixed Lens. H265. Max IR
Product Overview
HILOOK 6MP IP POE Turret Camera with 2.8mm Fixed Lens. H265. Max IR up to 30m. Built-in Audio Mic. 120dB WDR. IP66 Weatherproof. PoE 8.5W.
Key Features:
Key Features:
- 1/2.9'' Progressive Scan CMOS
- 3072×2048@20fps
- 2.8/4mm fixed lens
- Colour: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- H.265, H.265+, H.264, H.264+
- Three streams
- 120dB WDR
- BLC/3D DNR/ROI/HLC
- IR range: Up to 30m
- Built-in micro SD/SDHC/SDXC card slot, up to 128GB
- 3-Axis adjustment
- Built-in microphone
- IP66
Product Specifications
| Camera | |
| Image Sensor | 1/2.9'' Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| WDR | 120dB |
| Angle Adjustment | Pan: 0 Deg-360 Deg Tilt: 0 Deg-75Deg Rotate: 0 Deg-360 Deg |
| Lens | |
| Lens Type | Fixed lens, 2.8/4mm |
| Aperture | F2.0 |
| FOV | 2.8mm: Horizontal FOV: 97 Deg, vertical FOV: 63 Deg, diagonal FOV: 120 Deg 4mm: Horizontal FOV: 78 Deg, vertical FOV: 50 Deg, diagonal FOV: 97Deg |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 3072 × 2048 |
| Main Stream | 50Hz: 20fps (3072×2048, 3072×1728, 2944×1656), 25fps (2560×1440, 1920×1080, 1280×720) 60Hz: 20fps (3072×2048, 3072×1728, 2944×1656), 30fps (2560×1440, 1920×1080, 1280×720) |
| Sub Stream | 50Hz: 25fps (640×480, 640×360, 320×240) 60Hz: 30fps (640×480, 640×360, 320×240) |
| Third Stream | 50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240) |
| Video Compression | Mainstream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Mainstream supports |
| H.265 Type | Main Profile |
| H.265+ | Mainstream supports |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Client | HiLookVision PC Client, HiLookVision App |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Mozilla Firefox 52.0+ |
| Interface | |
| Communication Interface | 1x RJ45 100M self-adaptive Ethernet port |
| Audio | 1 audio input (built-in microphone), mono sound |
| Video Output | No |
| Interface Style | Pigtail style interface |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 128GB |
| General | |
| Firmware Version | 5.5.83 |
| Web Client Language | 32 languages:English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask |
| Reset | Reset via the reset button on the camera body, web browser and client software |
| Startup and Operating Conditions | -30 C-60 C, humidity 95% or less (non-condensing) |
| Storage Conditions | -30 C- 60 C, humidity 95% or less (non-condensing) |
| Power Supply | 12V DC +/-25%, 5mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption and Current | 12V DC, 0.5A, max. 6W; PoE (802.3af, 36V~57V), 0.3A-0.2A, max. 7W |
| Material | Metal |
| Dimensions | Camera: 127.3 × 95.9mm With package: 150 × 150 × 141mm |
| Weight | Camera: Approx. 635g With package: Approx. 890g |
| Approval | |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252 (Part 1): 2010+A1:2013+A2:2015 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| Protection | Ingress protection: IP66 (IEC 60529-2013) |
