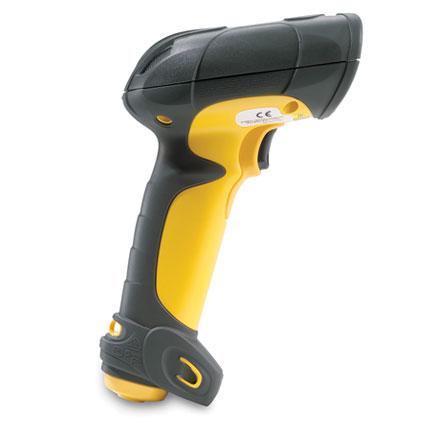

Zebra LS3408-FZ
POSMarket SKU: Z4495
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Advanced data capture technology for tough environments. The LS3408-FZ uses fuzzy logic technology to interpret barcodes that have been damaged or soiled to give you the kind of versatility thats necessary for todays industrial applications.
Product Overview
- Advanced data formatting - Eliminates costly modifications to the host software
- Bright 650nm laser aiming dot - Delivers clearly visible line for precise, accurate barcode data capture
- Bright LED and beeper with adjustable volume - Multiple modes of confirmation ensure positive user feedback in noisy environments
- Ergonomic, rugged design withstands multiple 6.5 ft./2m drops to concrete, 2,500 3.5-ft (1m) tumbles (5,000 hits) - Reduces user fatigue and ensures less down time due to accidental drops
- Flash memory - Facilitates updates/customization of product in the field
- Global Trade Item Number (GTIN) compliant - Decodes and transmits 14-digit GTINs where appropriate

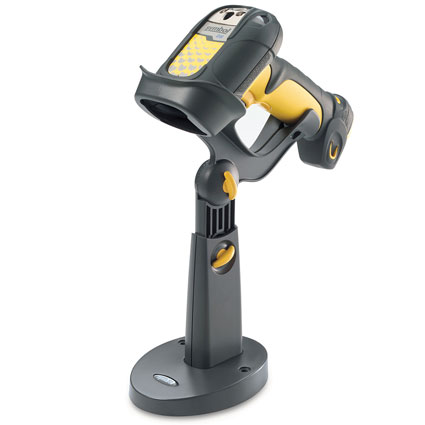

- Hands-free Intellistand (optional) - Enables presentation scanning and easy switching between hands-free and handheld modes
- High-performance scanner with fuzzy logic decode capability - Premium scanning for all 1D codes including poorly printed, damaged or low contrast barcodes
- IP65 sealing rating (electronic enclosure) - Protects against water and dust to ensure reliable performance in harsh industrial conditions
- Multiple onboard interfaces - Ensures flexible connectivity, allowing for host future proofing
- Supports Reduced Space Symbologies (RSS) - Compatible with emerging symbologies helps you to leverage your hardware investment
- Universal cable set - Allows for easy replacement and/or upgrades
Product Specifications
| General Information | |
| Category | Light pen or barcode scanner |
| Description | Symbol LS3408-FZ - Barcode scanner - handheld - 36 scan / sec - decoded |
| Manufacturer | Zebra Technologies |
| UNSPSC | 43211707 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.4 cm |
| Dimensions & Weight / Height | 18.7 cm |
| Dimensions & Weight / Weight | 350 g |
| Dimensions & Weight / Width | 12.3 cm |
| Header / Brand | Symbol |
| Miscellaneous / Product Color | Black;Yellow; |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | Code 93, Code 39, UCC/EAN-128, NW-7, IATA, GS1 DataBar, Bookland, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, Discrete 2 of 5, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Trioptic Code |
| Features | Reduced Space Symbology (RSS) |
| Light Source Wave Length | 650 nm |
| Minimum Bar Width | 5 mil |
| OK Notification | Beeper, LED indicator |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Scan Element Type | Visible laser diode |
| Scan Mode | Single-pass |
| Scan Speed | 36 scan / sec |
| Skew (Degrees) | 50 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 7.4 cm |
| Height | 18.7 cm |
| Weight | 350 g |
| Width | 12.3 cm |
| Environmental Parameters | |
| Drop Specification | 2 m to concrete |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -30 °C |
| General | |
| Color | Yellow, twilight black |
| Type | Barcode scanner - handheld |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, VCCI, EN 60950, IEC950, CSA 22.2 No. 950, MITI, EMC, RoHS |
