Zebra LI2208
POSMarket SKU: Z4238
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.
General Purpose Linear Imager Barcode Scanner. The next Generation 1D scanning.
Product Overview
A SCANNER FOR TRADITIONAL AND MOBILE 1D BARCODES
Many customers have laser technology that cannot read mobile barcodes. With the LI2208, customers can begin reading mobile and electronic barcodes right out of the box, without sacrificing scanning performance. A patented optical design achieves industry leading working range, and since bar codes can be captured at extreme angles, workers spend less time maneuvering the scanner for increased productivity.
LEVERAGES THE WILDLY SUCCESSFUL LS2208
The LS2208 is Zebra's most successful scanner of all time with millions of customers of all sizes choosing the scanner for its performance, excellent reliability and unparalleled ergonomic design. With the LI2208, your customers will enjoy the same ergonomic comfort and durability of the LS2208 (including the patented single circuit board design), while also benefiting from best-in-class linear technology.
SUPERIOR OUT-OF-THE-BOX EXPERIENCE
Setting up a new scanner can be time consuming and frustrating. The LI2208's smart auto-host detect cables make deployment easier by automatically detecting the attached interface (USB, RS232, RS485 or keyboard wedge), eliminating the need to scan multiple parameter barcodes. More than 90 international keyboards are supported and the scanner is compatible with 123Scan and SMS.
Features
- Delivers superior scanning speed and a wide data capture range
- Industry-leading working scan range
- Capture barcodes printed on traditional paper labels or displayed on the screen of a mobile phone, tablet or computer
- Patented single circuit board construction maximizes durability and reduces downtime by removing the most common points of failure
- Compatible with 123Scan and Scanner Management Service (SMS)
- Superior motion and angular tolerance
- International keyboard support
- Withstands 100 consecutive drops to concrete and 1,000 consecutive 1.64 ft./0.5 m tumbles
- Flexible modes: handheld and presentation
Product Specifications
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 16cm (H) x 6.7cm (W) x 9.9cm (L) |
| Weight | 140grams |
| Voltage and Current | 5VDC +/- 10% 165 mA scanning 40 mA standby 2.5 mA USB suspend 4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only) |
| Power Source | Host power or external power supply |

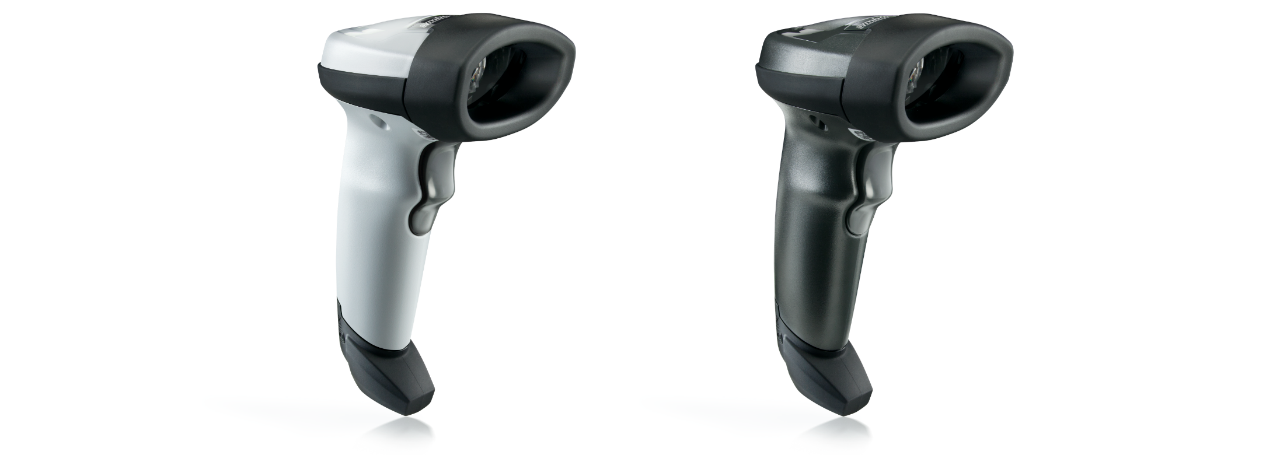

| Color | Twilight Black Nova White |
| Supported host interfaces | USB, RS232, Keyboard Wedge and IBM RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| USER ENVIRONMENT | |
| Ambient Light Immunity | Max 108,000 lux |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specs | Over 100 drops at 1. m at room temperature; survives 1.8m drops to concrete |
| Tumble Testing | 1,000 cycles (2000 drops) in 1/2 meter tumbler |
| Environmental Sealing | IP42 |
| Bar Code Symbologies | UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded |
| DECODE RANGES (TYPICAL WORKING RANGES) | |
| 3 mil | Minimum resolution |
| 4 mil | 10.2-25.4 cm |
| 5 mil | 7.6-33 cm |
| 7.5 mil | 3.8-48.3 cm |
| 13 mil | (100% UPC-A) 2.5-78.7 cm |
| 20 mil | 2.5-106.7 cm |
| 26 mil (200% UPC-A) | 7.6-140 cm |
| 100 mil reflective | >20 ft./6 m |
| PERFORMANCE CHARACTERISTICS | |
| Skew Tolerance | +/- 45 Degrees |
| Pitch Tolerance | +/- 45 Degrees |
| Roll Tolerance | +/- 45 Degrees |
| Scan Pattern | Single bright aiming line |
| Scan Angle | Horizontal 35 Degrees |
| Scan Speed | 547 scans per second |
| Motion Tolerance | 63.5 cm per second |
| Light Source | LED Class 1 device 617mm (amber) |
| Min. Print Contrast | 15% MRD |
| REGULATORY | |
| Technical Requirements | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1 |
| Environmental | RoHS Compliant |
