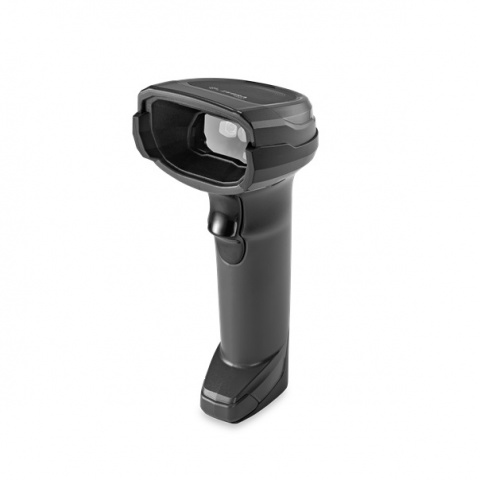

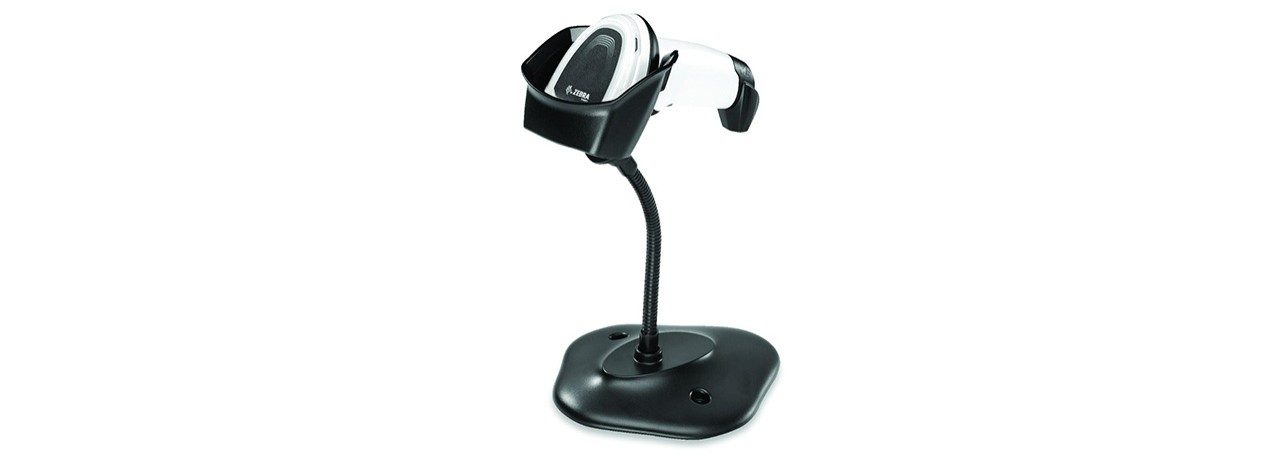

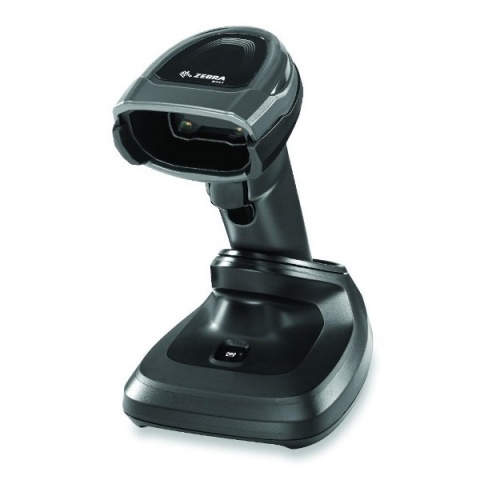

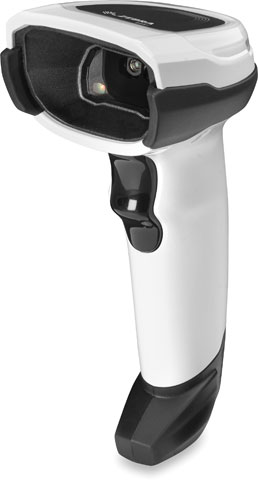

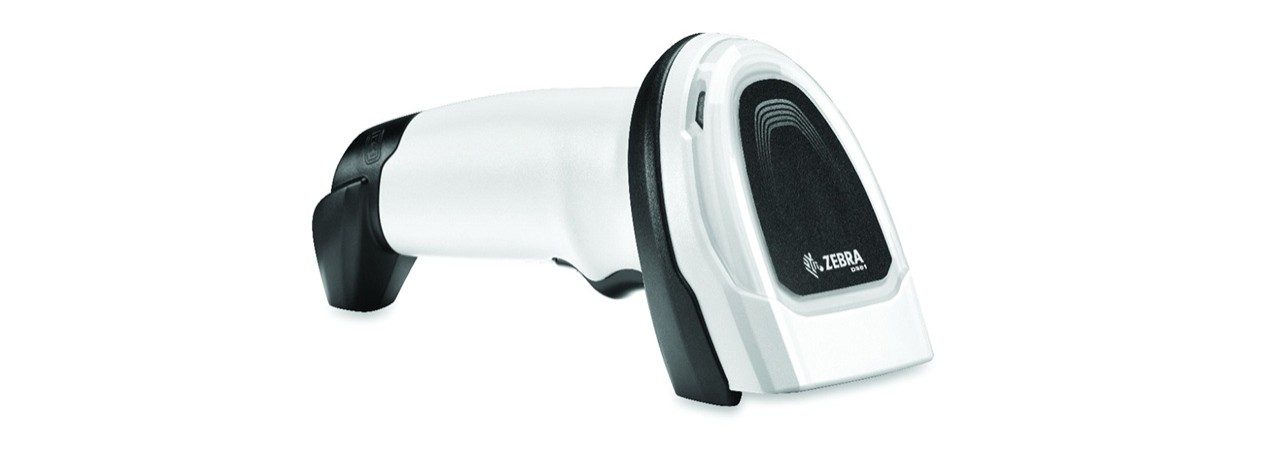

Zebra DS8178

from $831.11 (incl. GST)

POSMarket SKU: Z7069

This model is available in 8 different configurations. Select a configuration below or contact our experts on 1300 737 998.

Zebra DS8100 Series Cordless 1D/2D Handheld Scanner

Product Overview

THE ULTIMATE IN PERFORMANCE, INNOVATION AND MANAGEABILITY
The checkout stand is the last chance you have to leave shoppers with a good impression. The quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. Now, you can leave every shopper with the ultimate last impression with the DS8100 Series handheld imager.

The DS8100 Series rises above conventional imagers to deliver unprecedented scanning performance on virtually every 1D and 2D barcode, keeping your checkout lines moving and your cashiers free to deliver a more personal checkout experience. The DS8100 Series - because when it comes to the checkout experience in your store, only the best will do.

UNPRECEDENTED PERFORMANCE
Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes with lightning speed, including dense, poorly printed, crinkled, faded, distorted, dirty or damaged barcodes and electronic barcodes on smartphones - even when the screen is dimly lit.

INNOVATION BEYOND THE BARCODE
A wide range of innovations allows workers to do much more than scan barcodes one at a time. Workers can simultaneously capture multiple barcodes and transmit only those required in the proper directly to your application. Only the DS8100 Series can capture the information on a full 8.5 x 11 or A4 page, process the desired information into the right format for electronic storage and transmit the data to your applications - all with one press of the trigger. And support for Digimarc barcodes provides future-proofing, ensuring that the DS8100 Series you deploy today can support the barcodes of tomorrow.

UNRIVALLED MANAGEABILITY
Zebra's complimentary tools deliver unrivalled manageability. With visionary visibility into scanning performance and battery metrics, you can spot and correct issues before they impact device uptime, worker productivity and the quality of your customer service. You can control many aspects of your scanners from any Android, iOS and Windows smartphone or tablet, as well as any iOS or Windows PC. You can create a single configuration barcode to customise settings. And you can stage, configure and update firmware on all your DS8100 devices in all of your locations - no user actions required.

Product Specifications

Physical Characteristics
DimensionsCordless DS8178: 16.8cm (H) x 6.6cm (W) x 10.7cm (D)
Standard Cradle: 7.1cm (H) x 8.4cm (W) x 21.1cm (D)
Presentation Cradle: 7.4cm (H) x 9.4cm (W) x 12.2cm (D)
Weight Cordless DS8178: 235.3g
Cradle: 170.1g
Input Voltage Range 5V: 4.7 to 5.5VDC
12V: 10.8 to 13.2VDC
Current 470 mA (typical) Standard USB, 743mA (typical) 12V
Colour Nova White, Twilight Black
Supported Host Interfaces USB Certified
RS232
Keyboard Wedge
TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards
FIPS Security Certification Certified Compliant with FIPS 140-2
User Indicators Direct Decode Indicator
Good Decode LEDs
Rear View LEDs
Beeper (Adjustable Tone & Volume)
Battery Indicator
Performance Characteristics
Light Source Aiming Pattern: Linear 617nm Amber LED
Illumination (2) 645nm Red LEDs
Image Sensor 1,280 x 960 pixels
Minimum Print Contrast 16% minimum reflective difference
Imaging Characteristics
Graphics Format Support Images can be exported as Bitmap, JPEG or TIFF
Image Quality 109 PPI on an A4 document
Minimum Element Resolution Code 39 - 3.0 mil
Code 128 - 3.0 mil
Data Matrix - 6.0 mil
QR Code - 6.0 mil
Radio Specifications
Bluetooth Radio Standard Bluetooth Version 4.0 with BLE: Class (100m) and Class 2 (10m)
Serial Port and HID Profiles
Adjustable Bluetooth Power Class 1: Output power adjustable down from 4 dBm in 8 Steps
Class 2: Output power adjustable down from 2 dBm in 8 Steps
Battery
Battery Capacity 2,500 mAh Li-Ion
Battery Type Power Precision+ Battery
Scans Per Battery Charge 65,000 (1 scan per second)
Operating Time Per Full Charge 83 hours
Decode Capabilities
1D Code 39
Code 128
Code 93
Codabar/NW7
Code 11
MSI Plessey
UPC/EAN
I 2 of 5
Korean 3 of 5
GS1 DataBar
Base 32 (Italian Pharma)
2D PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
DataMatrix
MaxiCode
QR Code
Micro QR
Chinese Sensible (Han Xin)
Postal Codes
Digimarc Digital watermark technology, available April 2017
