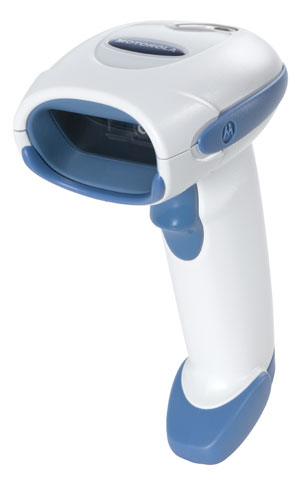

Zebra DS4208
POSMarket SKU: Z4673
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The DS4208 2D imager makes it easy to capture barcodes printed on paper labels or displayed on the screen of a mobile phone so retailers can easily accommodate customers who download mobile coupons mobile loyalty cards and more. You get industry leading scanning speed on every barcode true point-and-shoot first-time scanning simplicity on even damaged and poorly printed barcodes and a durable design for all day everyday reliability all at an affordable price.
Product Overview
Scan virtually any bar code on any medium; supports the technology your customers are embracing - electronic bar codes
Omnidirectional scan pattern
Eliminates the need to align bar code and scanner
Supports all common interfaces
Easy integration with your existing technology environment; easily migrate to new hosts
Rugged design: 6 ft. (1.83 m) drop to concrete
Built to last, providing reliable operation despite drops
Compatible with 123Scan and Remote Scanner Management (RSM)
Reduces management time and cost, from initial configuration to day-to-day management
- Scans 1D, 2D and PDF417 barcodes on paper, mobile phones and computer displays
- Omnidirectional scan pattern eliminates the need to align barcode and scanner
- Supports all common interfaces
- Rugged design: 6 ft. (1.83 m) drop to concrete
- Compatible with 123Scan2 and Remote Scanner Management (RSM)
- Easy integration with your existing technology environment, easily migrate to new hosts
Product Specifications
| GENERAL | ||
| Packaged Quantity | 1 | |
| Type | Barcode scanner - handheld | |
| Manufacturer | Zebra Technologies | |
| POWER DEVICE | ||
| Type | none | |
| INPUT DEVICE | ||
| Connectivity Technology | wired | |
| TTL Decoding | decoded | |
| PRINTER | ||
| Barcodes | 4-State postal code, Australian Post, Aztec code, Bookland, China Post, Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 93, Data Matrix, Discrete 2 of 5, EAN-UCC Composite, EAN/JAN, GS1 DataBar, ISBT 128, ISSN, Interleaved 2 of 5, Japanese Post, Kix (Netherlands) Post, Matrix 2 of 5, MaxiCode, Micro QR code, MicroPDF417, PDF417, PLANET, Postnet, QR code, Royal Mail, TLC39, UK Post, UPC, UPC-A/EAN-13 with Extended Coupon Code | |
| BARCODE | ||
| Interface | interface cable required | |
| Light Source Wave Length | 630 nm | |
| Barcodes | 4-State postal code, Australian Post, Aztec code, Bookland, China Post, Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 93, Data Matrix, Discrete 2 of 5, EAN-UCC Composite, EAN/JAN, GS1 DataBar, ISBT 128, ISSN, Interleaved 2 of 5, Japanese Post, Kix (Netherlands) Post, Matrix 2 of 5, MaxiCode, Micro QR code, MicroPDF417, PDF417, PLANET, Postnet, QR code, Royal Mail, TLC39, UK Post, UPC, UPC-A/EAN-13 with Extended Coupon Code | |
| Skew (Degrees) | 60 | |
| Pitch (Degrees) | 65 | |
| Minimum Bar Width | 5 mil | |
| Features | Reduced Space Symbology (RSS), rugged | |
| Decode Capability | EAN/JAN, Code 93, Matrix 2 of 5, Code 39, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, Bookland, Code 32, Code 39 Full ASCII, Discrete 2 of 5, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, UPC-A/EAN-13 with Extended Coupon Code, EAN-UCC Composite, ISSN, Code 39 Trioptic, UK Post, Royal Mail, Micro QR code, 4-State postal code | |
| Scan Mode | Single-pass | |
| Connectivity Technolog | yWired | |
| Scan Element Type | 2D imager | |
| TTL Decoding | Decoded | |
| MISCELLANEOUS | ||
| Color | twilight black | |
| Color Category | black | |
| ENVIRONMENTAL PARAMETERS | ||
| Humidity Range Operating | 5 - 95% (non-condensing) | |
| Min Operating Temperature | 32 F | |
| Max Operating Temperature | 104°F | |
| MANUFACTURER WARRANTY | ||
| Type | 5 years warranty | |
| SCANNER | ||
| Type | barcode scanner | |
| Form Factor | handheld | |
| Scan Mode | single-pass | |
| Scan Element Type | 2D imager | |
| HEADER | ||
| Brand | Zebra | |
| Product Line | Zebra | |
| Model | DS4208 | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| SOFTWARE | ||
| Type | Drivers & Utilities | |
| DIMENSIONS & WEIGHT | ||
| Width | 2.7 in | |
| Depth | 3.7 in | |
| Height | 6.7 in | |
| Weight | 6.1 oz | |
| PHYSICAL CHARACTERISTICS | ||
| Weight | 6.1 oz | |
| SLOT REQUIRED | ||
| Type | none | |
| OPERATING SYSTEM / SOFTWARE | ||
| Type | Drivers and Utilities | |
| SERVICE ANDSUPPORT | ||
| Type | 5 years warranty | |
| SHOCK AND VIBRATION TOLERANCE | ||
| Drop Specification | 6 ft to concrete | |
| SERVICE AND SUPPORT DETAILS | ||
| Type | limited warranty | |
| Full Contract Period | 5 years | |
| GENERAL | ||
| Manufacturer | Zebra Technologies | |
