Zebra DS3678-SR
POSMarket SKU: Z4022

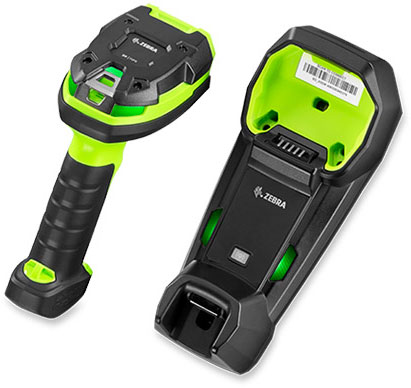

DS3678-SR3U42A0SFW: DS3678-SR USB Kit. Includes DS3678-SR 2D Bluetooth scanner, Charge/Comms cradle, USB cable and Power supply
The DS3678-SR is the Standard Range Scanning version of Zebra's Ultra-Rugged 3600 series of cordless scanners. Designed to capture virtually any barcode from near contact , to as far as 1.5m away. These scanners are loaded with features that deliver truly unstoppable performance in the toughest environments.
Product Overview
You get the ultimate in scanning performance - period. Your workers can scan virtually any 1D or 2D electronic or printed barcode in any condition, as fast as they can pull the trigger. With 30 percent more working range, it's easy to capture barcodes that are farther away. Even if barcodes are under shrinkwrap or damaged, dirty or poorly printed, no problem - this intelligent scanner can handle it all.
ULTRA-RUGGED DESIGN
The manufacturing plant floor is as tough as its gets - and the cost of unplanned downtime on the production line is astronomical. That's why Zebra created a new product category - the ultra-rugged scanner. The cordless DS3678 models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALLED MANAGEABILITY
With Zebra's complimentary industry-best tools, managing these scanners couldn't be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
- High durability design, virtually indestructible
- High (over 50,000) consecutive tumble rating
- Dust, spray, and waterproof sealing
- Wide temperature range operation for any warehouse environment
- Multiple barcode captures (up to 20) with a single trigger press
- Sensitive scanning capability for varying barcode quality
- Long lasting battery (over 70,000 scans)
- Onboard battery charge status gauge for easy monitoring
- Bluetooth Low Energy (BLE or 4.0) feature for superior energy efficiency
- No interference with Wi-Fi infrastructure
Product Specifications
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 18.5cm x 7.6cm x 14.2cm |
| Weight | 407g |
| Colour | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge |
| Battery | PowerPrecision+ 3100mAh Li-ion, rechargeable |
| Usr Indicators | Direct decode indicator; LEDs; beeper; vibration |
| PERFORMANCE CHARACTERISTICS | |
| Scans per full charge | 70,000+ |
| Illumination | One 660 nm LED |
| Imager Field of View | Horizontal: 42°, Vertical: 28° |
| Image Sensor | 1280 x 800 (1 Megapixel) |
| Skew/Pitch/Roll | Skew: ± 60°; Pitch: ± 60°; Roll: ± 360° |
| DECODE CAPABILITIES | |
| 1D | Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN Interleaved 2 of 5 Korean 3 of 5 GS1 Databar Base 32 (Italian Pharma) |
| 2D | PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes |
| WIRELESS CONNECTIVITY | |
| Bluetooth | Bluetooth Class 1, Verion 4.0 (LE) Serial Port (SPP) HID Profiles |
| Radio Range | Direct Line of Sight in open air: Class 1: 100m Class 2: 10m |
| USER ENVIRONMENT | |
| Operating Temp. | -4° F to 122° F/-20° C to 50° C |
| Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Tumble Specification | 5000 tumbles @ 3.3 ft. (1 m) |
| Sealing | Scanner: IP65 and IP67; FLB cradle: IP65 |
