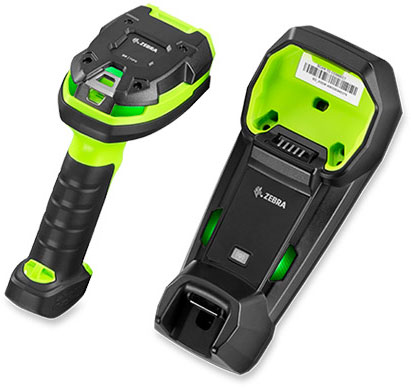

Zebra DS3678-DP

from $3,071.75 (incl. GST)

POSMarket SKU: Z4254

This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

The DS3678-DP is the Direct Part Mark (DPM) Scanning version of Zebra's Ultra-Rugged 3600 series of cordless scanners. Designed for lightning fast capture of virtually every Direct Part Mark (DPM) in Aerospace, Automotive and other manufacturing plants where DPM codes are used. With the ability to also read any 1D or 2D Barcode displayed on a screen or printed on a label, these scanners are loaded with features that deliver a single, flexible, unstoppable device to perform in the toughest environments.

Product Overview

Give your workers unstoppable performance in the toughest environments with the corded DS3608-DP and cordless DS3678-DP ultra-rugged 1D/2D handheld scanners. You get superior scanning flexibility and performance. An advanced illumination system enables the capture of literally every type of direct part mark, regardless of, size, surface, contrast or density. And the same scanner can also capture standard printed bar codes in virtually any condition - under shrinkwrap, damaged, dirty or poorly printed. When it comes to design, these scanners are practically indestructible. Get the unstoppable performance you need to maximize workforce productivity and throughput in your operations with the ultra-rugged DS3608-DP/DS3678-DP.

SUPERIOR PERFORMANCE
When it comes to capturing barcodes in the manufacturing plant, the DS3678-DP delivers the ultimate in scanning performance - period. Capture direct part marks regardless of size, surface, contrast, density or type - including challenging dot peen, chemical or laser etch, ink, inkjet mold, cast or thermal spray marks. And workers can capture any 1D or 2D barcode displayed on a screen or printed on a label in practically any condition for superior barcode capture flexibility in a single scanner.

ULTRA-RUGGED DESIGN
The manufacturing plant floor is as tough as its gets - and the cost of unplanned downtime on the production line is astronomical. That's why Zebra created a new product category - the ultra-rugged scanner. The cordless DS3678 models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALLED MANAGEABILITY
With Zebra's complimentary industry-best tools, managing these scanners couldn't be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
  • High durability design, virtually indestructible
  • High (over 50,000) consecutive tumble rating
  • Dust, spray, and waterproof sealing
  • Wide temperature range operation for any warehouse environment
  • Multiple barcode captures (up to 20) with a single trigger press
  • Sensitive scanning capability for varying barcode quality
  • Long lasting battery (over 70,000 scans)
  • Onboard battery charge status gauge for easy monitoring
  • Bluetooth Low Energy (BLE or 4.0) feature for superior energy efficiency
  • No interference with Wi-Fi infrastructure
Choosing the right model for the environment enables increased worker performance and scanning confidence. With minimal maintenance requirements, outstanding ultra-rugged performance features, and excellent technology integration, the DS-3678 provides rapid capture of barcodes reliably and consistently in a variety of distances and environment conditions. This is the tool that can take your productivity and management efficiency to the next level.

Product Specifications

PHYSICAL CHARACTERISTICS
DimensionsCorded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.7 cm W x 13.2 cm D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.3 cm D
Weight Corded: 10.72 oz./304g; Cordless: 14.18 oz./402 g
Colour Industrial Green
Supported Host Interfaces USB, RS232, Keyboard Wedg
Battery PowerPrecision+ 3100mAh Li-ion rechargeable battery
PERFORMANCE CHARACTERISTICS
Scans per full charge 100,000+
Imager Field of ViewHorizontal: 31°, Vertical: 23°
Aimer 655 nm laser
Illumination Direct: Two (2) warm white light LED ; Diffuse: Ring of red 634 nm LEDs
Image Sensor 1,280 x 960 pixels
DECODE CAPABILITIES
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
OCR/td> OCR-A/B, MICR-E13B, US Currency Serial Number
WIRELESS CONNECTIVITY
Bluetooth Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
Radio Range Direct line of sight in open air : Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)
USER ENVIRONMENT
Operating Temp.Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C
Drop Specification Withstands multiple 8.0 ft. / 2.4 m drops to concrete
Tumble Specification 5000 tumbles @ 3.3 ft. (1 m)
Sealing Scanner: IP65 and IP67;
FLB cradle: IP65
Ambient Light Immunity 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)
