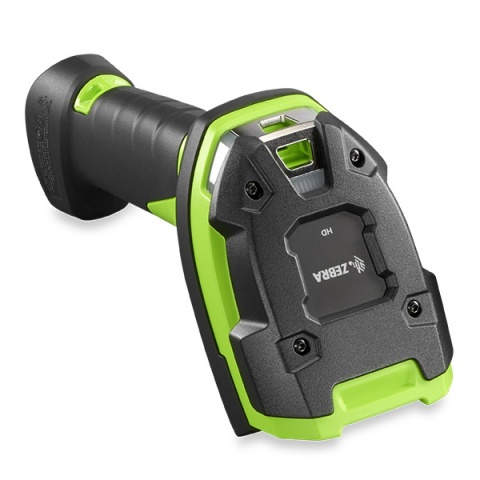

Zebra DS3608-SR
POSMarket SKU: Z4020
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Ultra- Rugged Handheld Digital Barcode Scanner
Product Overview
The advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near contact to nearly 5 ft./1.5 m away. The ultra-rugged design is practically indestructible - ideal for punishing environments. The DS3608-SR/DS3678-SR couldn't be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-SR is in a class of its own, with a complete solution that includes a sealed rugged cradle, a smart battery and Zebra's Wi-Fi Friendly Mode that prevents interference with your Wi-Fi network. The DS3608-SR/DS3678-SR - the unstoppable performance you need to maximize workforce productivity and throughput in your operations.
UNSTOPPABLE PERFORMANCE FOR STANDARD RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-SR corded and DS3678-SR cordless scanners are ready for the world's toughest environments the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to as far as 5 ft./1.5 m away, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.
Features
- Superior scanning performance on any 1D/2D barcode
- IP67 rated rugged design
- Easy management with our complimentary industry-best tools multi-code captures and processes up to 20 barcodes simultaneously
- Faster pick-list processing
- Extreme temperature rating
In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including a special mode that simultaneously captures all or specific barcodes on a label with many barcodes; an aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more.
Product Specifications
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 18.5 cm H x 7.6 cm W x 13.2 cm |
| Weight | /305 g |
| Colour | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge |
| Battery | PowerPrecision+ 3100mAh Li-ion, rechargeable battery |
| PERFORMANCE CHARACTERISTICS | |
| Scans per full charge | 70,000+ |
| Illumination | One (1) Hyper Red 660nm LED |
| Imgage field of View | Horizontal: 42°, Vertical: 28° |
| Image Sensor | 1,280 x 800 pixels |
| Skew/Pitch/Rol | Skew: ± 60°; Pitch: ± 60°; Roll: ± 360° |
| DECODE CAPABILITIES | |
| 1D | Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN Interleaved 2 of 5 Korean 3 of 5 GS1 Databar Base 32 (Italian Pharma) |
| 2D | PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes |
| WIRELESS CONNECTIVITY | |
| Bluetooth | Bluetooth Class 1, Verion 4.0 (LE) Serial Port (SPP) HID Profiles |
| Radio Range | Direct Line of Sight in open air: Class 1: 100m Class 2: 10m |
| USER ENVIRONMENT | |
| Operating Temp. | -22° F to 122° F/-30° C to 50° C |
| Drop Specification. | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
