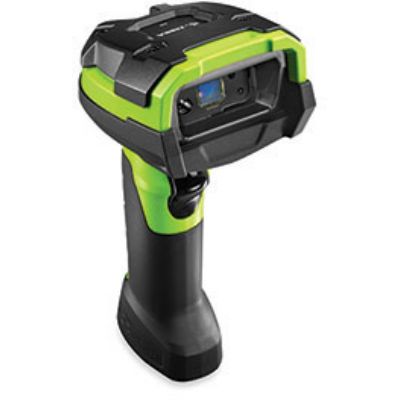

Zebra DS3608-HP
POSMarket SKU: Z4253
DS3608-HP3U4602VZW: DS3608 USB Kit. Includes DS2608-HP Scanner & High current shielded USB cable
Corded Handheld Ultra- Rugged Barcode Scanner
Product Overview
As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HP corded and DS3678-HP cordless scanners are ready for the world' toughest environments the warehouse and manufacturing floor.
In addition to capturing virtually any 1D or 2D barcode as far as 7 ft./2.1 m away, these scanners give you the flexibility to capture a wide range of business information to streamline many everyday business processes, including OCR, documents and photos.
No matter what types of data your workers need to capture, you get all the features you need for truly unstoppable performance, redefining scanner reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.
Features
- Advanced imager for scanning any 1D/2D barcode in any condition
- Intelligent document capture supports OCR, photos and documents
- Multi-code captures and processes up to 20 barcodes simultaneously
- Rugged IP67 design
- Easy management with complimentary industry-best tools
- Extreme temperature rating
- Faster pick-list processing
Product Specifications
| PHYSICAL CHARACTERISTICS | |
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D |
| Weight | Corded: 10.9 oz./309 g; Cordless: 14.5 oz./411 g |
| Colour | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| PERFORMANCE CHARACTERISTICS | |
| Scans per full charge | 70,000+ |
| Illumination | Two (2) warm white light LEDs |
| Imager Field of View | Horizontal: 31°, Vertical: 23° |
| Image Sensor | 1,280 x 960 pixels |
| Skew/Pitch/Roll | Skew: ±60°; Pitch: ± 60°; Roll: ± 360° |
| DECODE CAPABILITIES | |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| OCR | OCR-A/B, MICR-E13B, US Currency Serial Number |
| USER ENVIRONMENT | |
| Operating Temp. | Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C |
| Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Tumble Specification | 5000 tumbles @ 3.3 ft. (1 m) |
| Sealing | Scanner: IP65 and IP67; FLB cradle: IP65 |
| Ambient Light Immunity | 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight) |
| WIRELESS CONNECTIVITY | |
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Radio Range | Direct line of sight in open air : Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
