Zebra DS3608-DP

from $2,319.63 (incl. GST)

POSMarket SKU: Z4250

This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

Ultra-Rugged Handheld Corded (Direct Part Marking) 2D Barcode Scanner .

Product Overview

UNSTOPPABLE PERFORMANCE FOR 1D/2D DIRECT PART MARKS (DPM) AND BARCODES
As a member of the Zebra 3600 Ultra-Rugged Series of scanners the practically indestructible 1D2D DS3608-DP corded scanner brings the dependable lightning-fast capture of virtually every direct part mark to aerospace automotive and other manufacturing plants where end-to-end traceability of every product component is required.

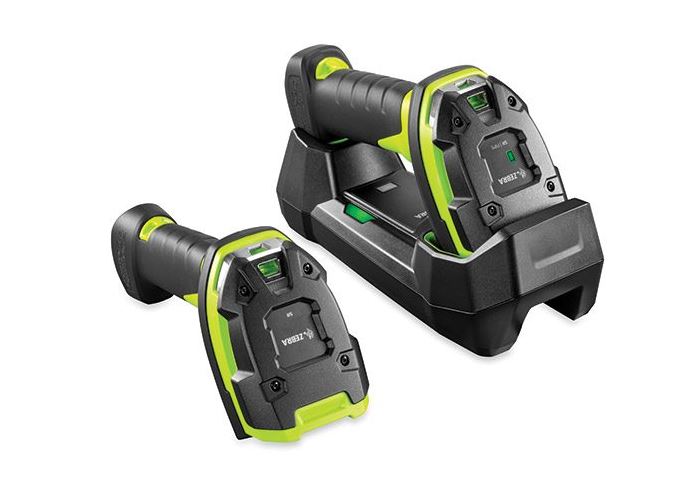

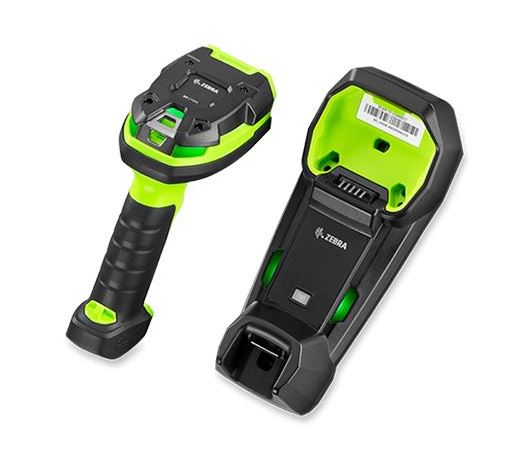

With the corded DS3608-DP and cordless DS3678-DP imagers, you can give them the best - unmatched rugged design, unmatched, scanning performance and unrivaled manageability. Advanced scanning delivers lightning - fast capture of direct part marks, plus any 1D or 2D barcode printed on a label in virtually any condition. The ultra-rugged design is practically indestructible - ideal for punishing environments. The scanners couldn't be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-DP is loaded with Zebra - only features that put it in a class of its own. The DS3608-DP/ DS3678-DP - the unstoppable performance you need to maximize workforce productivity and throughput, ensure traceability, reduce production cycle times and prevent unplanned production line downtime.

And since the DS3608-DP and DS3678-DP also captures any 1D and 2D barcode displayed on a screen or printed on a label, you get real value - unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to quality control.

DIRECT PART MARK BARCODE SCANNING
In addition to superior scanning performance, flexible information capture, an ultra-rugged design and unparalleled manageability, you get an advanced illumination system that ensures the capture every high density barcode on the first try. Whether direct part marks are very low contrast or printed on shiny, reflective surfaces, the DS3608-DP and DS3678-DP do it all.

Features
  • Superior scanning performance on DPM and standard 1D/2D barcodes
  • Advanced illumination provides the multiple lighting effects required to capture marks on any type of surface
  • Ultra-rugged: the most indestructible design in its class
  • IP67 rated
  • Easy remote device management tools included

Product Specifications

PHYSICAL CHARACTERISTICS
Dimensions18.5cm x 7.7cm x 13.2cm
Weight 304g
Colour Industrial Green
Supported Host Interfaces USB, RS232, Keyboard Wedge
Battery PowerPrecision+ 3100mAh Li-ion, rechargeable battery
PERFORMANCE CHARACTERISTICS
Scans per full charge 70,000+
Illumination One (1) Hyper Red 660nm LED
Image Field of View Horizontal: 42°, Vertical: 28°
Skew/Pitch/Roll Skew: ± 60°; Pitch: ± 60°; Roll: ± 360°
Image Sensor 1280 x 800 1 Megapixel)
DECODE CAPABILITIES
1D Code 39
Code 128
Code 93
Codabar/NW7
Code 11
MSI Plessey
UPC/EAN
Interleaved 2 of 5
Korean 3 of 5
GS1 Databar
Base 32 (Italian Pharma)
2D PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
DataMatrix
MaxiCode
QR Code
Micro QR
Chinese Sensible (Han Xin)
Postal Codes
WIRELESS CONNECTIVITY
Bluetooth Bluetooth Class 1, Verion 4.0 (LE)
Serial Port (SPP)
HID Profiles
Radio Range Direct Line of Sight in open air:
Class 1: 100m
Class 2: 10m
USER ENVIRONMENT
Operating Temp.-22° F to 122° F/-30° C to 50° C
Drop Specification Withstands multiple 8.0 ft. / 2.4 m drops to concrete
Tumble Specification 5,000 tumbles @ 3.3 ft. (1 m)
SealingScanner: IP65 and IP67; FLB cradle: IP65
