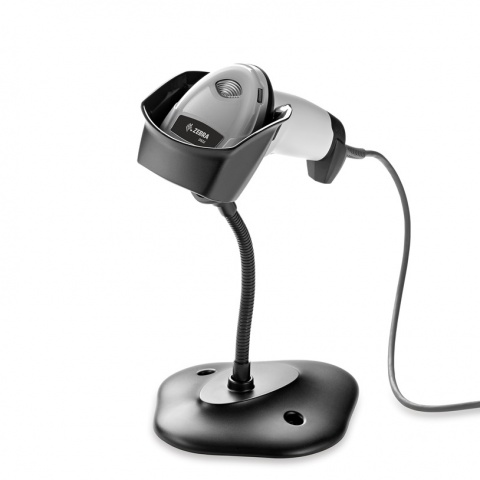

Zebra DS2208
POSMarket SKU: Z4241
This model is available in 7 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Corded 1D/2D Imager Barcode Scanner. Comes from DS2200 Series Corded and Cordless 1D/2D Handheld Imagers - Affordability and Simplicity delivered.
Product Overview
Your 1D scanner can't capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn't compromise performance or features for price. DS200 comes in corded DS2208 or the cordless DS2278.
DS2200 Series - the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
EASY TO DEPLOY
Deployment couldn't be simpler. The DS2200 Series is pre-configured and ready to use right out of the box. Just plug the DS2200 Series into your POS and our auto-host detect cables will automatically identify the interface and connect the imager for you. And if you want to customise your settings, Zebra's complimentary 123Scan software tool is so intuitive than even a first time user can easily create a single programming barcode that allows you to configure devices with one scan.
EASY TO USE
The DS2200 Series is so easy to use, chances are your workers won't even need training. With Zebra's PRZM software decode algorithms, omni-directional scanning, a patent-pending intuitive aimer, an unsurpassed scanning range and more, the DS2200 Series provides workers with best-in-class first time, every time scanning with point and shoot simplicity - regardless of barcode condition.
EASY TO MANAGE
Management is simple - no experienced IT personnel required. Our no-cost tools make it easy to manage scanners in all your locations and develop a custom scanning application to best meet your specific business needs.
Product Specifications
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 16.5cm (W) x 6.6cm (W) x 9.9cm (D) |
| Weight | 161.6g |
| Colour | Twilight Black Nova White |
| Supported Host Interfaces | USB, Serial (RS232), Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| User Indicators | Direct Decode Indicator Good decode LEDs Rear view LEDs Beeper (adjustable tone and volume) |
| PERFORMANCE CHARACTERISTICS | |
| Motion Tolerance (Handheld) | Up to 13 cm. per second for 13 mil UPC |
| Swipe Speed (Hands-Free) | Up to 76.2 cm. per second for 13 mil UPC |
| Light Source | Aiming Pattern: Linear 624nm Amber LED |
| Illumination | (2) 645nm Super-Red LEDs |
| Image Sensor | 640 x 480 pixels |
| Minimum Print Contrast | 25% minimum reflective difference |
| USER ENVIRONMENT | |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 1.5 m to concrete |
| Tumble Specification | Designed to withstand 250 tumbles in 0.5 m tumbler |
| Environmental Sealing | IP42 |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107,600 Lux |
| DECODE CAPABILITIES | |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
