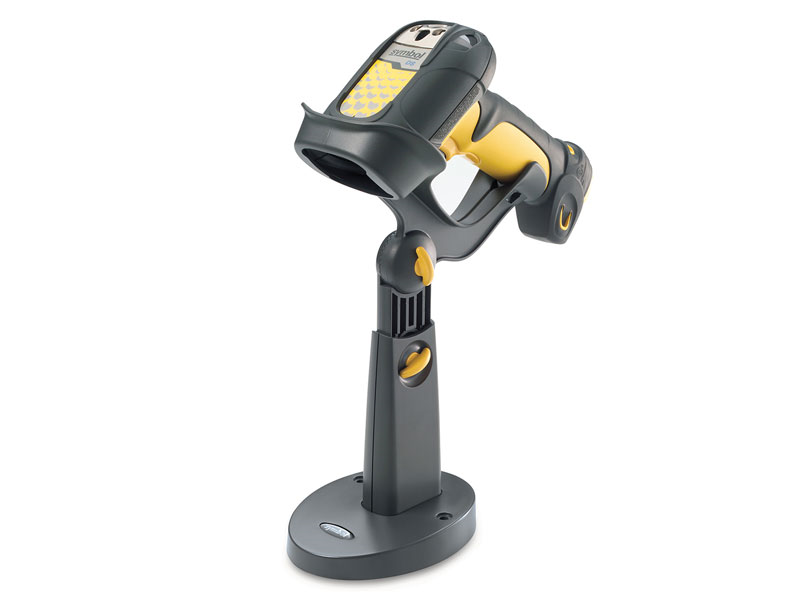

Symbol DS3408
POSMarket SKU: Z4737
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The DS3400 Series industrial bar-code scanners from Symbol Technologies use digital imaging technology to accurately capture all types of two-dimensional 2D and one-dimensional 1D barcodes while offering the high performance typically found only in laser scanners.
Product Overview
- Ability to read both 1D and 2D barcodes - Increases productivity and lowers costs by providing one device that can be used to read all industry-standard barcodes
- Integrated image capture and transfer capabilities (DS3407 only) - Reduces the costs associated with operating and maintaining multiple devices by integrating the technology needed for image capture and transfer
- Multiple interfaces (DS3408 only) - Protects your investment by allowing migration to future hosts with only a cable change
- Omnidirectional scanning - Speeds reading time by eliminating the need to line up the barcode with the scan line
- Rugged and reliable design that includes a 6.5 ft. drop-to-concrete specification and IP65 seal rating - Ensures reliability and performance in rough environments by protecting against damage
- Two-position smart focus - Unique to the DS3400 Series, this feature allows users to optimize the scanner for their application by providing them with a choice of two focus positions
Product Specifications
| Brand | Symbol |
| Product Line | Symbol Digital Scanner |
| Model | DS3408-HD |
| Type | Barcode scanner - handheld |
| Manufacturer | Zebra Technologies |
| TTL Decoding | decoded |
| OK Notification | LED indicator, beeper |
| Barcodes | Bookland, Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 Full ASCII, Code 93, Discrete 2 of 5, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, IATA, Interleaved 2 of 5, MSI-Plessey, NW-7, Trioptic Code, UCC/EAN-128, UPC |
| Light Source Wave Length | 650 nm |
| Barcodes | Bookland, Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 Full ASCII, Code 93, Discrete 2 of 5, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, IATA, Interleaved 2 of 5, MSI-Plessey, NW-7, Trioptic Code, UCC/EAN-128, UPC |
| Print Contrast Signal (PCS) | 25% |
| Skew (Degrees) | 50 |
| Pitch (Degrees) | 60 |
| Minimum Bar Width | 5 mil |
| Decode Capability | Code 93, Code 39, UCC/EAN-128, NW-7, IATA, GS1 DataBar, Bookland, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, Discrete 2 of 5, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Trioptic Code |
| Compliant Standards | VCCI, EN 60950, ICES-003, IEC950, UL 1950, CSA 22.2 No. 950, FCC Part 15 B, MITI, EMC |
| Color | twilight black, yellow |
| Color Category | black, yellow |
| Width | 4.8 in |
| Depth | 2.9 in |
| Height | 7.4 in |
| Weight | 10.58 oz |
