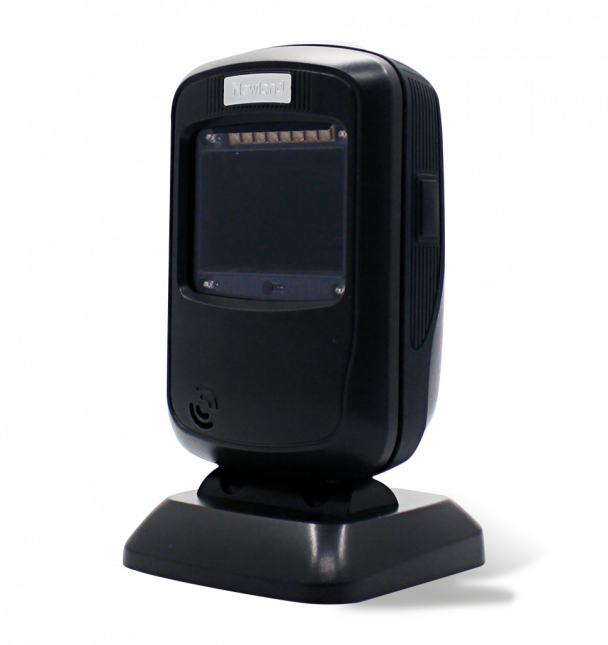

RapidPOS Newland FR4080 Koi II
POSMarket SKU: Z8752
SCNLFR408020: FR-4080 2D Presentation Scanner. USB Interface, Black
As the first Megapixel scanner on the market, the FR-40 will read all 1D and 2D barcodes with extreme speed. Equiped with a switch to toggle between paper and screen modes, scanning normal paper barcodes or coupons from mobile phone screens can be optimised for the fastest reading based on your unique requirements.
Product Overview
With the rise of technology demand on the market, FR40 Koi has introduced the FR4080 Koi II - Features the First Presentation Scanner with a Megapixel Camera.
Say hello to Newland's newest device, the FR4080 Koi II. The FR4080 Koi II replaces both the FR4050 Koi and the FR4060 Akame as their new and improved presentation scanner. Perhaps the most significant change being the new megapixel barcode scanner, making it the first megapixel presentation scanner on the market.
The Rise of Emerging Technologies in Retail
Emerging technologies have changed the way consumers interact with their favourite brands, causing the rise of experiential retail and multi-channel retail. The trend has been driven largely by millennials and their preference for experiences over things. This has led to a surge of store remodeling, mobile apps and smart IoT solutions. So, how do you keep up? That's where the FR4080 Koi II steps in.
Designed to Enhance the Customer Experience
The FR4080 Koi II was designed as an on-counter solution that caters to employee and customer facing applications alike. Its megapixel scanner equips it to read 1D and 2D barcodes, including Aztec and high density barcodes, in a way that's unmatched among its peers.
Previously, presentation scanners were unable to read codes from both paper and screens equally without affecting the hardware. Now, with a switch to toggle between paper and screen mode, the FR4080 Koi II suits both. This puts it at the forefront of flexibility when it comes to supporting scanning for mobile applications. Additionally, it ensures frictionless scanning by inexperienced customers and it suits any form of paper scanning.
The Key is in the Design
When it comes to presentation scanners, especially on your counter, the right physical design is key. While facing outwards, the scanner should not draw unnecessary attention. The FR4080 Koi II has a 10° angle and soft illumination that guarantees comfort for both employees and customers. A further IR sensor enables the powerhouse scanner to capture any barcode presented quickly and keep illumination short and subtle.
Product Specifications
| PERFORMANCE | |
| Imager Sensor | 1280 x 800 CMPS |
| Illumination | White LED |
| Depth of Field EAN13 (13mil) | 5-195mm |
| Depth of Field QR (15mil) | 5-165mm |
| Minimal Print Contrast | 25% |
| Scan Angle Roll | 360 degrees |
| Scan Angle Pitch | +/- 50 degrees |
| Scan Angle Skew | +/-45 degrees |
| Field of View Horizontal | 51 degrees |
| Field of View Vertical | 32 degrees |
| Motion Tolerance | 2.5m/s |
| DATA CAPTURE | |
| 1D | EAN-13 EAN-8 UPC-A UPC-E ISSN ISBN Codabar Code 128 Code 93 ITF-6 ITF-14 Interleaved 2 of 5 Industrial 2 of 5 Standard 2 of 5 Matrix 2 of 5 GS1 Databar Code 39 Code 11 MSI-Plessey Plessey |
| 2D | PDF417 Data Matrix QR Code Micro QR Code Aztec |
| PHYSICAL | |
| Dimensions (mm) | 83 (W) x 81(D) x 148 (H) |
| Weight | 293g |
| Interfaces | USB |
| Notifications | Beep, LED indicator |
| Input Voltage | 5VDC +/- 5% |
| Current @ 5VDC Operating | 219mA (typical) |
| Power Consumption | 1041mW (typical) |
| ENVIRONMENTAL | |
| Operating Temperature | -20C to 60C |
| Storage Temperature | -40C to 70C |
| Humidity | 5% to 95% (non-condensing) |
| Electro Static Discharge (ESD) | +/-14 kV (air discharge) +/-8 kV (direct discharge) |
| Drop | 1.2m |
| Sealing | IP52 |
| CERTIFICATIONS | |
| Certifications | FCC Part15 Class B CE EMC Class B |
